C5000 (9429-1) - Generac 5,000 Watt Portable Generator Generator Parts Diagram

5,000 Watt Portable Generator

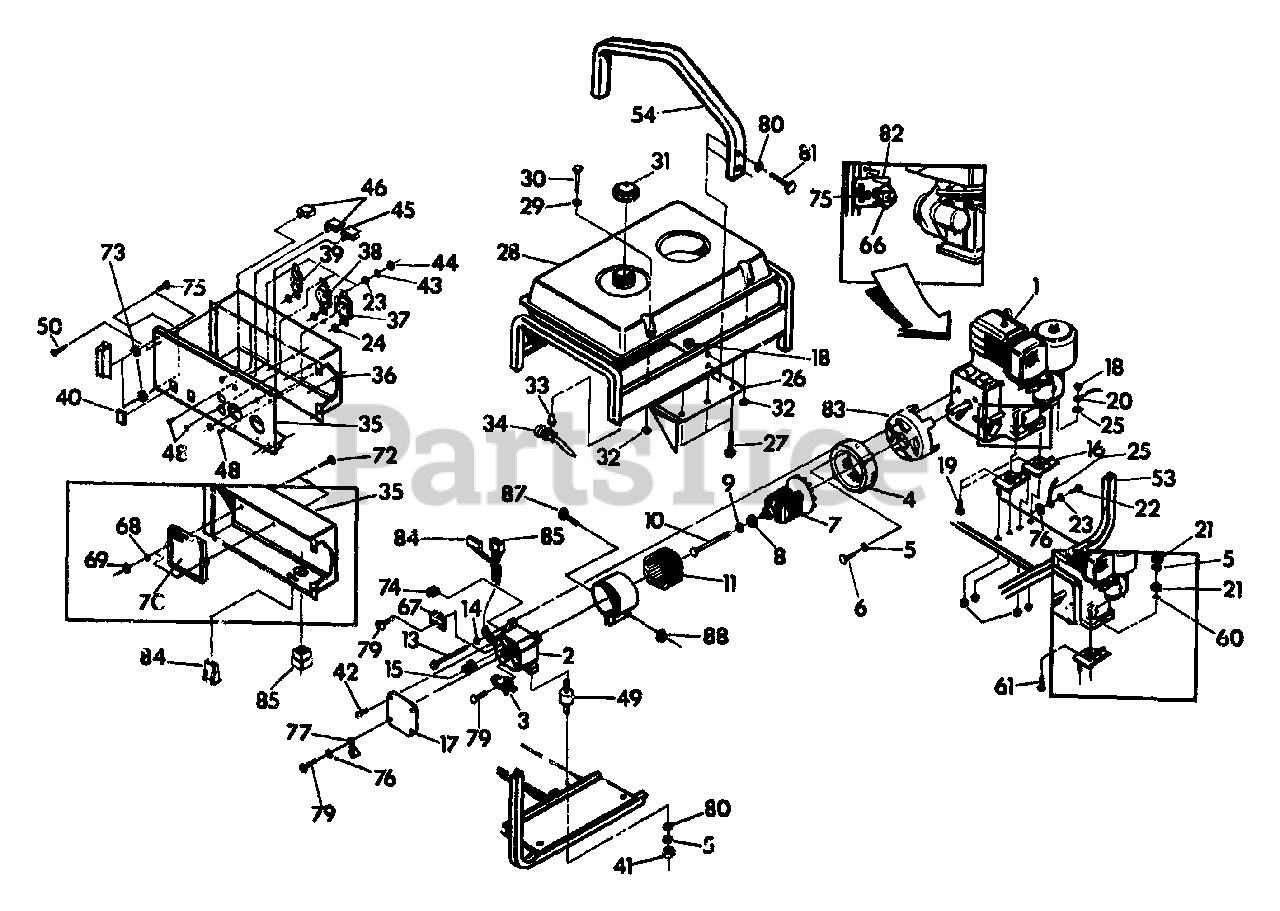

Generator Parts Diagram

  • Title

1

Briggs & Stratton 78849

11 h.p. Briggs & Stratton Electric Start Engine

$

$

Currently unavailable

2

Briggs & Stratton 66825A

Rear Bearing Carrier

$

$

Currently unavailable

3

Briggs & Stratton 66386

Brush Holder Assembly
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

4

Briggs & Stratton 66365D

Adaptor Housing
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 23541

5/16-24 x 2-1/2" Screw

$

$

Currently unavailable

7

Briggs & Stratton 80024

Rotor Assembly

$

$

Currently unavailable

8

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 67451

Special Washer

$

$

Currently unavailable

10

Briggs & Stratton 29024

Rotor Bolt

$

$

Not available

11

Briggs & Stratton 77243

Stator Assembly

$

$

Not available

13

Briggs & Stratton 66449F

Stator Bolt

$

$

Not available

14

Briggs & Stratton 22097

Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 66850

Bridge Rectifier
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 70642

45-degree Vibration Mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

17

Briggs & Stratton 67025

Bearing Carrier Cover

$

$

Currently unavailable

18

Briggs & Stratton 52858

M8-1.25 Flange Lock Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

19

Briggs & Stratton 76222

M8-1.25 x 40mm Screw
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 10953621

4" long Ground Wire

$

$

Currently unavailable

21

Briggs & Stratton 22259

5/16-18 Hex Nut
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 24911

Taptite Screw
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 38150

No. 8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 23365

No. 8 Serrated Lock Washer
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 27482

5/16" Shakeproof Washer
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 79803

5 kW Heat Shield
(Superseded to 7079803YP)

$14.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 56892

No. 10-24 x 3/8" Screw
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 77374

5 gal. Plastic Tank

$

$

Currently unavailable

29

Briggs & Stratton 78830

Special Black Washer
(Superseded to 78830GS)

$1.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 79816

M6 x 35mm Capscrew (black)

$

$

Not available

31

Briggs & Stratton 78824

Fuel Tank Cap

$

$

Currently unavailable

32

Briggs & Stratton 77395

M6 Hex Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 78299

Plastic Tank Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

34

Briggs & Stratton 78298

Plastic Tank Valve
(Superseded to 7078298YP)

$192.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 79800

Plain Control Panel

$

$

Currently unavailable

36

Briggs & Stratton 83844

Black Control Panel

$

$

Currently unavailable

37

Briggs & Stratton 68868

120 volt, 30 amp Twistlock Receptacle
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 68867

120/240 volt, 20 amp Twistlock Receptacle
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 68795

120 volt, 20 amp Duplex Outlet

$

$

Not available

40

Briggs & Stratton 77263

Engine Run/Stop Switch

$

$

Not available

41

Briggs & Stratton 25244

5/16-18 Hex Nut
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 74908

M5-0.8 x 10mm Hex Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22264

No. 8 Lock Washer

$

$

Not available

44

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

45

75207A

30 amp Circuit Breaker

$

$

Not available

46

Briggs & Stratton 75207

20 amp Circuit Breaker
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

49

Briggs & Stratton 82857

Rubber Mount
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 63036

No. 8-32 x 1/4" Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 23364

No. 6 Shakeproof Washer
(Superseded to 5023364)

$225.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 79823A

5 kW Electric Start Cradle

$

$

Currently unavailable

54

Briggs & Stratton 78509

C-5000 Lifting Bar

$

$

Currently unavailable

60

Briggs & Stratton 27482

5/16" Shakeproof Washer
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 71729

Phillips Pan Head Screw
(Superseded to 71729GS)

$6.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 77282

Starter Switch

$

$

Not available

67

Briggs & Stratton 65795

Battery Charge Rectifier
(Superseded to 65795GS)

$

$

Not available

68

Briggs & Stratton 22152

No. 10 Lock Washer
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 22158

No. 10-32 Hex Nut
(Superseded to 5022158)

$30.99

$

In Stock, Qty 5

0

70

Briggs & Stratton 74074

Voltage Regulator

$

$

Currently unavailable

71

Briggs & Stratton 81887E

Alternator Wrap

$

$

Currently unavailable

72

Briggs & Stratton 33534

No. 10-32 x 1-1/8" Screw

$

$

Currently unavailable

73

Briggs & Stratton 22769

No. 10 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 67022

Rubber Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 75494

No. 10 x 5/8" Screw

$

$

Not available

76

Briggs & Stratton 22769

No. 10 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 25433

Grounding Lug

$

$

Not available

79

Briggs & Stratton 66849

M5-0.8 x 15mm Screw
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

80

Briggs & Stratton 22145

5/16" (M8) Flat Washer

$

$

Not available

81

Briggs & Stratton 39287

M8-1.25 x 45mm Capscrew
(Superseded to 39287GS)

$3.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 78289

Starter Switch Bracket
(Superseded to 78289GS)

$7.49

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 68342

Engine Spacer

$

$

Currently unavailable

84

Briggs & Stratton 22695

6-pin Male Connector
(Superseded to 22695GS)

$6.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 63933

9-pin Connector

$

$

Currently unavailable

86

Briggs & Stratton 22694

6-pin Connector
(Superseded to 22694GS)

$5.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 52618

M5-0.8 x 12mm Screw
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 52856

M5-0.8 Lock Nut
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0
