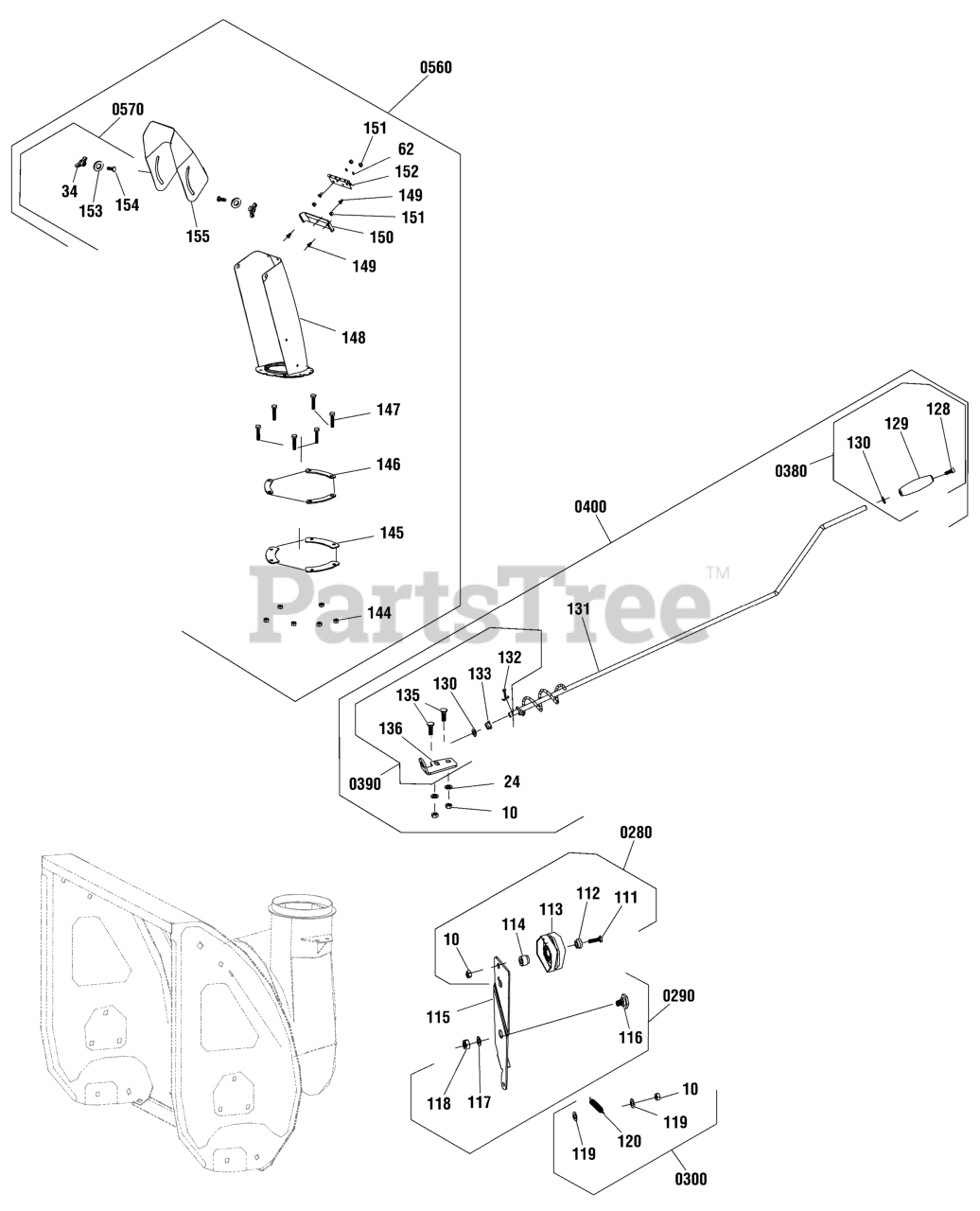

C950-10329-0 (1696574-01) - Craftsman 24" Snow Thrower, Canada (2018) Discharge Chute Group (6965Y_CR) Parts Diagram

24" Snow Thrower, Canada

Discharge Chute Group (6965Y_CR) Parts Diagram

  • Title

0280

Murray 707566

KIT-IDLER PULLEY, TENSION PLATE

Note: (Incl. Ref. No. 111, 112, 113, 114, 115 & 10)

$41.99

$

Usually ships in 2-12 days

0

111

* SCREW, Hex head

Note: (Included with Ref. No. 0280)

$

$

Not available

112

* WASHER

Note: (Included with Ref. No. 0280)

$

$

Not available

113

* COVER, Large tensioning wheel

Note: (Included with Ref. No. 0280)

$

$

Not available

114

* SLEEVE, Washer

Note: (Included with Ref. No. 0280)

$

$

Not available

10

* NUT, Lock, Hex Head, non-metal

Note: (Included with Ref. No. 0280)

$

$

Not available

115

Murray 709964

PLATE, Large tensioning

$

$

Currently unavailable

0290

Murray 707565

KIT-HARDWARE, IDLER BRACKET

Note: (Incl. Ref. No. 116, 117 & 118)

$8.99

$

Usually ships in 2-12 days

0

116

* BOLT, Hexagonal nut

Note: (Included with Ref. No. 0290)

$

$

Not available

117

* WASHER, Flat

Note: (Included with Ref. No. 0290)

$

$

Not available

118

* NUT, Lock, Hex Head, non-metal

Note: (Included with Ref. No. 0290)

$

$

Not available

0300

Murray 707841

KIT-SPRING, IDLER PULLEY

Note: (Incl. Ref. No. 119, 120 & 10)

$11.99

$

Usually ships in 2-12 days

0

119

* WASHER, Flat

Note: (Included with Ref. No. 0300)

$

$

Not available

120

* SPRING

Note: (Included with Ref. No. 0300)

$

$

Not available

10

* NUT, Lock, Hex Head, non-metal

Note: (Included with Ref. No. 0300)

$

$

Not available

0380

Murray 707820

KIT-HANDLE, CHUTE ROD

Note: (Incl. Ref. No. 128, 129 & 130)

$17.99

$

Usually ships in 2-12 days

0

128

* SCREW, Flange, Hex head

Note: (Included with Ref. No. 0380)

$

$

Not available

129

* GRIP, Handle, Chute Rotator

Note: (Included with Ref. No. 0380)

$

$

Not available

130

* WASHER, Flat

Note: (Included with Ref. No. 0380)

$

$

Not available

0390

Murray 707821

KIT-MOUNTING PLATE, CHUTE ROTATION

Note: (Incl. Ref. No. 10, 24, 132, 133, 130, 135 & 136)

$18.99

$

In Stock, only 1 left!

0

10

* NUT, Lock, Hex Head, non-metal

Note: (Included with Ref. No. 0390)

$

$

Not available

24

* WASHER, Flat

Note: (Included with Ref. No. 0390)

$

$

Not available

132

* SPLITPIN

Note: (Included with Ref. No. 0390)

$

$

Not available

133

* RING, Plastic, Mounting plate

Note: (Included with Ref. No. 0390)

$

$

Not available

130

* WASHER, Flat

Note: (Included with Ref. No. 0390)

$

$

Not available

135

* BOLT, Square Neck,Cup head

Note: (Included with Ref. No. 0390)

$

$

Not available

136

* PLATE, Mounting, Chute Rotator

Note: (Included with Ref. No. 0390)

$

$

Not available

0400

Murray 707822

KIT-CHUTE ROTATION

Note: (Incl. Ref. No. 10, 24, 128, 129, 130, 131, 132, 133, 135 & 136)

$296.99

$

Usually ships in 2-12 days

0

10

* NUT, Lock, Hex Head, non-metal

Note: (Included with Ref. No. 0400)

$

$

Not available

24

* WASHER, Flat

Note: (Included with Ref. No. 0400)

$

$

Not available

128

* SCREW, Flange, Hex head

Note: (Included with Ref. No. 0400)

$

$

Not available

129

* GRIP, Handle, Chute Rotator

Note: (Included with Ref. No. 0400)

$

$

Not available

130

* WASHER, Flat

Note: (Included with Ref. No. 0400)

$

$

Not available

131

* ROD, Chute Rotator

Note: (Included with Ref. No. 0400)

$

$

Not available

132

* SPLITPIN

Note: (Included with Ref. No. 0400)

$

$

Not available

133

* RING, Plastic, Mounting plate

Note: (Included with Ref. No. 0400)

$

$

Not available

130

* WASHER, Flat

Note: (Included with Ref. No. 0400)

$

$

Not available

135

* BOLT, Square Neck, Cup head

Note: (Included with Ref. No. 0400)

$

$

Not available

136

* PLATE, Mounting, Chute Rotator

Note: (Included with Ref. No. 0400)

$

$

Not available

0560

Murray 707833

KIT-CHUTE ASSEMBLY, RED, NA

Note: (Incl. Ref. No. 144, 145, 146, 147, 148, 149, 150, 151, 152, 34, 154, 155, 153 & 62)

$148.99

$

Usually ships in 2-12 days

0

144

* NUT, Lock, Hex Head, non-metal

Note: (Included with Ref. No. 0560)

$

$

Not available

145

* PLATE, Chute Installing

Note: (Included with Ref. No. 0560)

$

$

Not available

146

* GASKET, Chute Installing

Note: (Included with Ref. No. 0560)

$

$

Not available

147

* SCREW, Hex head

Note: (Included with Ref. No. 0560)

$

$

Not available

148

* WELDMENT, Lower, Chute

Note: (Included with Ref. No. 0560)

$

$

Not available

149

* BOLT, Phillips head

Note: (Included with Ref. No. 0560)

$

$

Not available

150

* PAD, Rubber, Chute

Note: (Included with Ref. No. 0560)

$

$

Not available

151

* NUT, Lock, Hex Head, non-metal

Note: (Included with Ref. No. 0560)

$

$

Not available

152

* HINGE, Chute

Note: (Included with Ref. No. 0560)

$

$

Not available

34

* KNOB

Note: (Included with Ref. No. 0560)

$

$

Not available

154

* BOLT, Square Neck, Cup head

Note: (Included with Ref. No. 0560)

$

$

Not available

155

* DEFLECTOR

Note: (Included with Ref. No. 0560)

$

$

Not available

153

* WASHER, Flat

Note: (Included with Ref. No. 0560)

$

$

Not available

62

* WASHER

Note: (Included with Ref. No. 0560)

$

$

Not available

0570

Murray 707759

KIT-WING KNOB, CHUTE

Note: (Incl. Ref. No. 34, 154 & 153

$20.99

$

Usually ships in 2-12 days

0

34

* KNOB, Deflector

Note: (Included with Ref. No. 0570)

$

$

Not available

154

* BOLT, Square Neck, Cup head

Note: (Included with Ref. No. 0570)

$

$

Not available

153

* WASHER, Flat

Note: (Included with Ref. No. 0570)

$

$

Not available
