C950-52313-1 - Craftsman 33" Snow Thrower, Canada (2004) (Sears) Auger Housing Parts Diagram

33" Snow Thrower, Canada

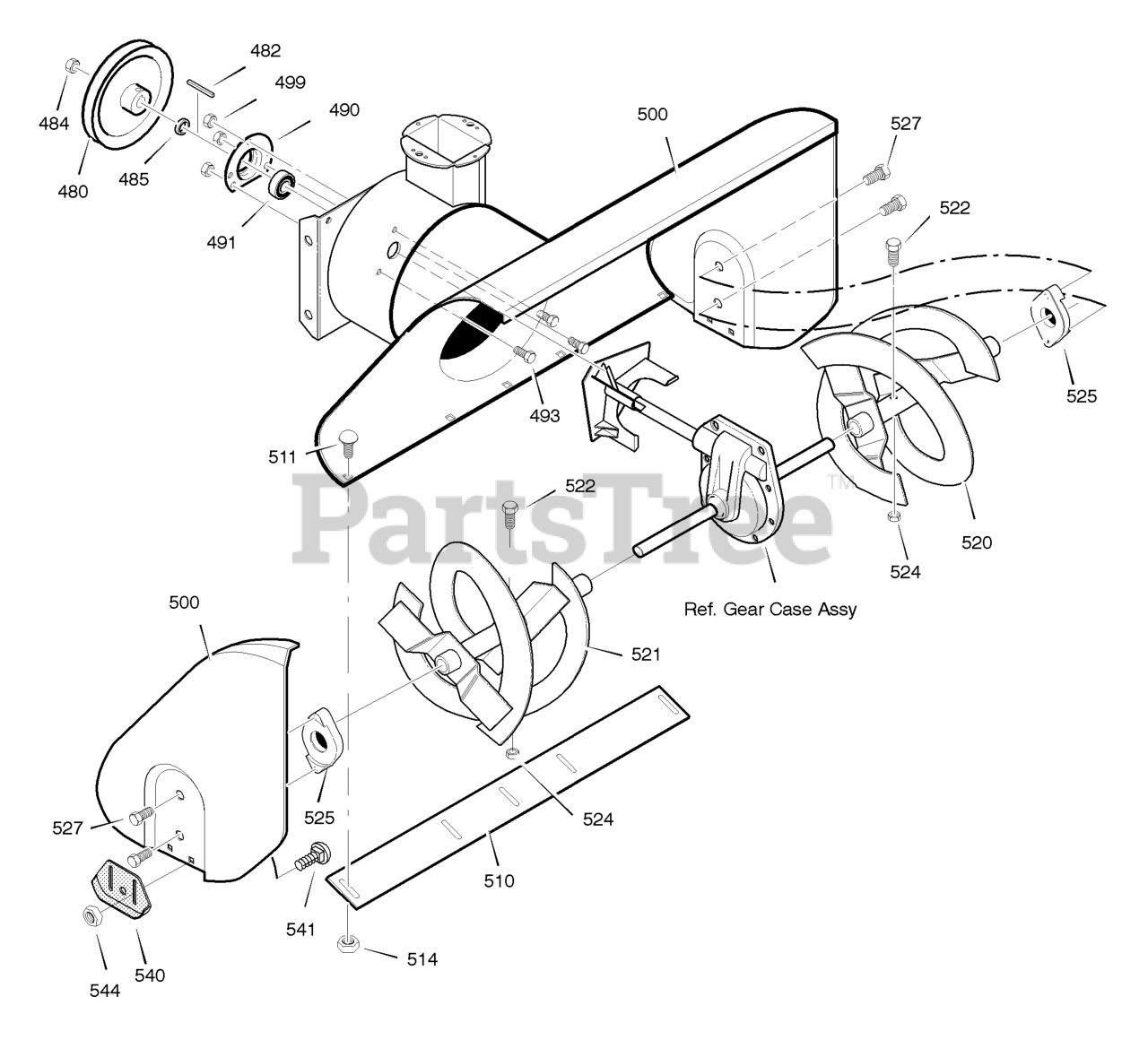

Auger Housing Parts Diagram

  • Title

480

Murray 583146MA

PULLEY, 4L 8.40 OD.

$

$

Not available

482

Murray 2001022MA

KEY, SQUARE 3/16 X 3/4

$4.49

$

In Stock, Qty 11

0

484

Murray 15X112MA

NUT, .50-20 HEXWDFLLK

$5.49

$

Usually ships in 2-12 days

0

485

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, only 2 left!

0

490

Murray 582957 YZ

RETAINER, BALL BRNG
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 1501389MA

BEARING, BALL
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X92MA

BOLT, HEX 5/16-18X .50

$5.49

$

In Stock, only 3 left!

0

499

Murray 710026

NUT, 5/16-18 HEXWDFLLK

$

$

Not available

500

Murray 1501478E201

HOUSING, ASSY

$256.99

$

Usually ships in 2-12 days

0

510

Murray 760666E701MA

BLADE, SCRAPER
(Superseded to 1739239BMYP)

$63.99

$

In Stock, only 1 left!

0

511

Murray 001X92MA

BOLT, 5/16-18x0.5

$5.49

$

In Stock, only 3 left!

0

514

Murray 710026

NUT, 5/16-18

$

$

Not available

520

Murray 760317E701MA

AUGER, ASSY, LH
(Superseded to 1740742HMA)

$213.99

$

Usually ships in 2-12 days

0

521

Murray 760307E701MA

AUGER, ASSY, RH
(Superseded to 1740743HMA)

$165.99

$

Usually ships in 2-12 days

0

522

Murray 578647MA

SCREW, 1/4-20X1.75
(Superseded to 703335)

$6.49

$

In Stock, only 3 left!

0

524

Murray 71391

NUT, 1/4-20
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

525

Murray 53757MA

BEARING, FLANGE

$9.99

$

In Stock, only 2 left!

0

527

Murray 25X021MA

SCREW, 5/16-18 x 0.75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

540

Murray 762376E701MA

SKID, HEIGHT ADJUST
(Superseded to 1741194AYP)

$

$

Not available

541

Murray 340720MA

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

544

Murray 710026

NUT, 5/16-18

$

$

Not available

--

Murray 1501217

KIT, SHEAR BOLT

$8.99

$

In Stock, only 1 left!

0

--

Murray 680230 Z

WRENCH

$

$

Currently unavailable
