C950-52419-2 - Craftsman 24" Snow Thrower, Canada (2005) (Sears) Handle Assembly Parts Diagram

24" Snow Thrower, Canada

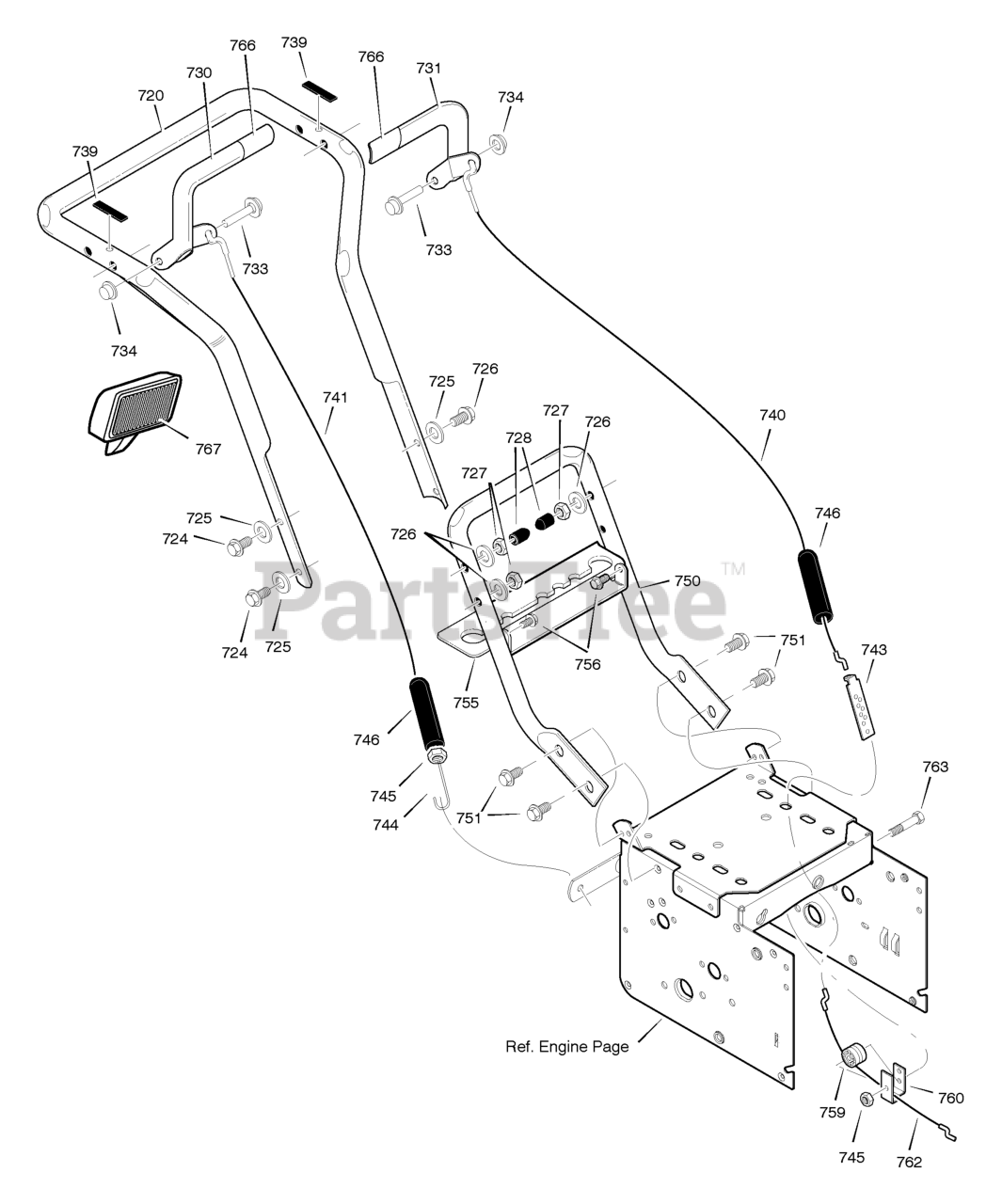

Handle Assembly Parts Diagram

  • Title

720

Murray 321835E701

HANDLE, UPPER

$121.99

$

Usually ships in 2-12 days

0

724

Murray 11234MA

SCREW, 5/16-18 x 2.75
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

725

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

726

Murray 71060

WASHER, SPTLK .31X.58X.08
(Superseded to 1501670MA)

$

$

Not available

727

Murray 15X144

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

728

Murray 11261MA

STOP, RED PLASTIC

$4.99

$

Usually ships in 2-12 days

0

730

Murray 301386E701

CLUTCH HANDLE, RIGHT

$

$

Not available

731

Murray 301387E701

CLUTCH HANDLE, LEFT

$

$

Not available

733

Murray 1501477MA

PIN, PIVOT CLUTCH

$

$

Not available

734

Murray 3535MA

NUT, PUSH ON CAP

$5.49

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER, RECTANGLE

$

$

Not available

740

Murray 1501123MA

CABLE, CLUTCH 28.44L

$13.99

$

In Stock, Qty 19

0

741

Murray 761589MA

CABLE, AUGER CLUTCH

$16.99

$

In Stock, only 2 left!

0

743

Murray 313441MA

BRACKET, CABLE ADJUSTER

$

$

Not available

744

Murray 1673MA

SPRING, AUGER CLUTCH

$9.49

$

In Stock, Qty 9

0

745

Murray 15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

746

Murray 308146MA

BOOT, CLUTCH SPRING

$6.99

$

In Stock, Qty 8

0

750

Murray 339541E701MA

HANDLE, LOWER
(Superseded to 1740701ASM)

$148.99

$

Usually ships in 2-12 days

0

751

Murray 25X021MA

SCREW, TAP 5/16-18 X .75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

755

Murray 337407E701MA

BRKT, GEAR SELECTOR

$23.99

$

Usually ships in 2-12 days

0

756

Murray 310169MA

SCREW, 1/4-20 X 0.63
(Superseded to 703054)

$4.49

$

In Stock, Qty 12

0

759

Murray 579860MA

SPOOL-CABLE, AUGRT CLUTCH

$6.49

$

In Stock, only 2 left!

0

760

Murray 1501059 YZ

BRACKET, CABLE SPOOL YZ
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

762

Murray 1501122MA

CABLE, LOWER DRIVE 12"

$8.99

$

In Stock, Qty 8

0

763

Murray 001798

BOLT, HEX 1/4-20 X 1.50
(Superseded to 703234)

$4.49

$

In Stock, only 1 left!

0

766

Murray 333927MA

GRIP

$5.99

$

In Stock, only 2 left!

0

767

Murray 1501730MA

HEADLIGHT

$187.99

$

Usually ships in 2-12 days

0
