C950-52431-1 - Craftsman 30" Snow Thrower, Canada (2005) (Sears) Control Panel Parts Diagram

30" Snow Thrower, Canada

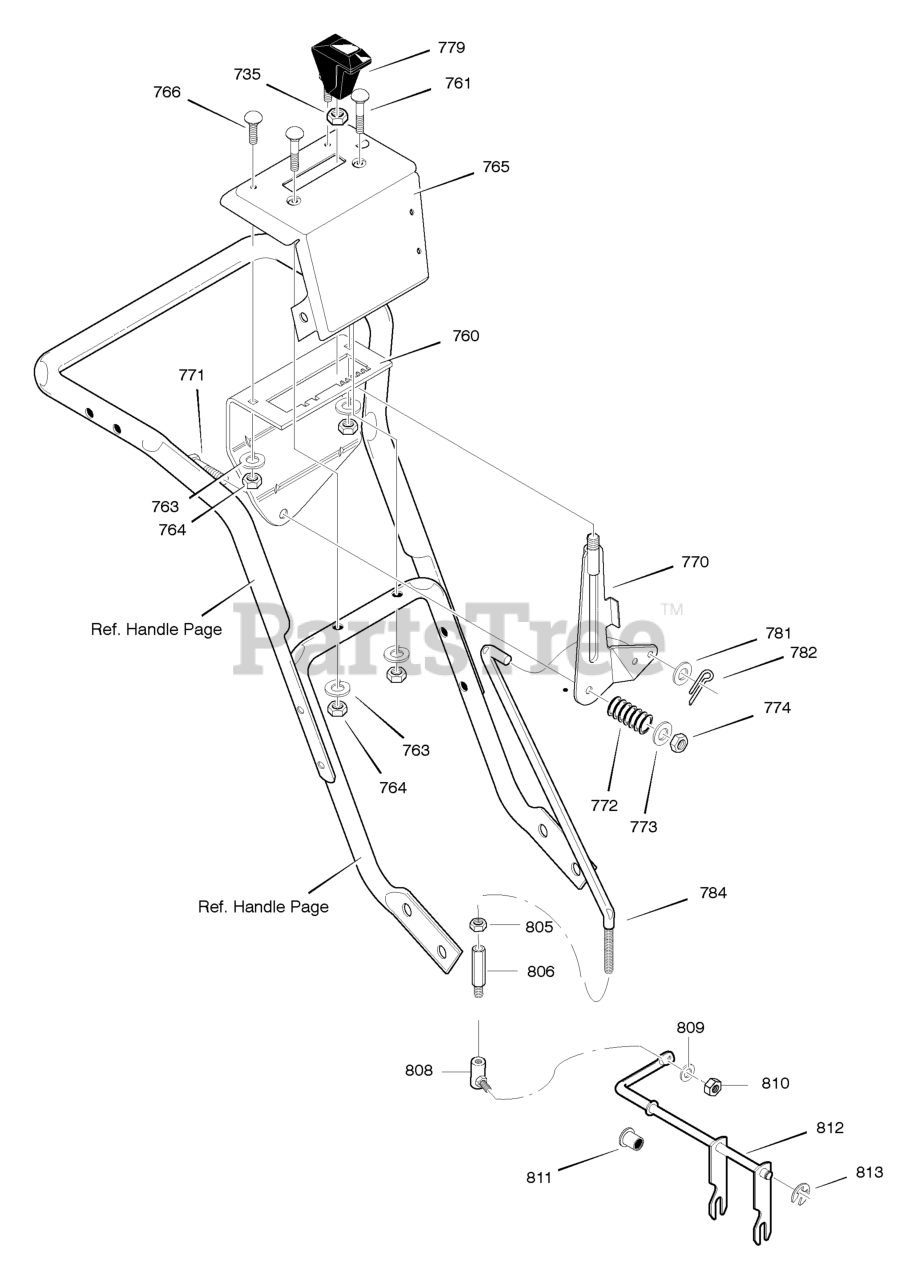

Control Panel Parts Diagram

  • Title

735

Murray 71045

NUT, 3/8-16 HEXJAM

$

$

Not available

760

Murray 308905E701MA

BRACKET, SHIFT CONTROL

$12.99

$

Usually ships in 2-12 days

0

761

Murray 762148

CARR. BOLT, 1/4-20 X 2

$

$

Not available

763

Murray 71059

WASHER, SPLIT

$3.99

$

In Stock, only 3 left!

0

764

Murray 71034

NUT, 1/4-20 HEX
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

765

Murray 6056E737MA

CONTROL PANEL

$30.99

$

Usually ships in 2-12 days

0

766

Murray 3809

CARR. BOLT, 1/4-20 X 0.63

$3.49

$

Usually ships in 2-12 days

0

770

Murray 305260E701MA

SHIFT LEVER ASSY

$35.99

$

Usually ships in 2-12 days

0

771

Murray 302900MA

SCREW, 5/16-18 x 1.75

$4.49

$

Usually ships in 2-12 days

0

772

Murray 50786MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

773

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

774

Murray 71038

NUT, 5/16-18 NYLON HEX
(Superseded to 703902)

$3.99

$

In Stock, Qty 10

0

779

Murray 304437MA

GRIP

$11.99

$

Usually ships in 2-12 days

0

781

Murray 71071

WASHER, FLAT .349X.69X.066
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

782

Murray 71081

PIN, COTTER

$

$

Not available

784

Murray 1582019

ROD, SPEED CONTROL

$58.99

$

Usually ships in 2-12 days

0

805

Murray 71042MA

NUT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

806

Murray 6352MA

ADAPTER, SPEED ROD -YZ

$95.99

$

Usually ships in 2-12 days

0

808

Murray 50782MA

BALLJOINT, STEEL -YZ

$21.99

$

In Stock, only 1 left!

0

809

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

810

Murray 71042MA

NUT, 5/16-24

$4.49

$

Usually ships in 2-12 days

0

811

Murray 579944MA

FLANGED BEARING

$15.99

$

In Stock, only 2 left!

0

812

Murray 1501110 YZ

ROD ASSY, YOKE PANEL
(Superseded to 1501110YZMA)

$50.99

$

In Stock, only 3 left!

0

813

Murray 11X30MA

RING, RETAINER

$4.49

$

In Stock, only 2 left!

0
