C950-52431-1 - Craftsman 30" Snow Thrower, Canada (2005) (Sears) Frame Parts Diagram

30" Snow Thrower, Canada

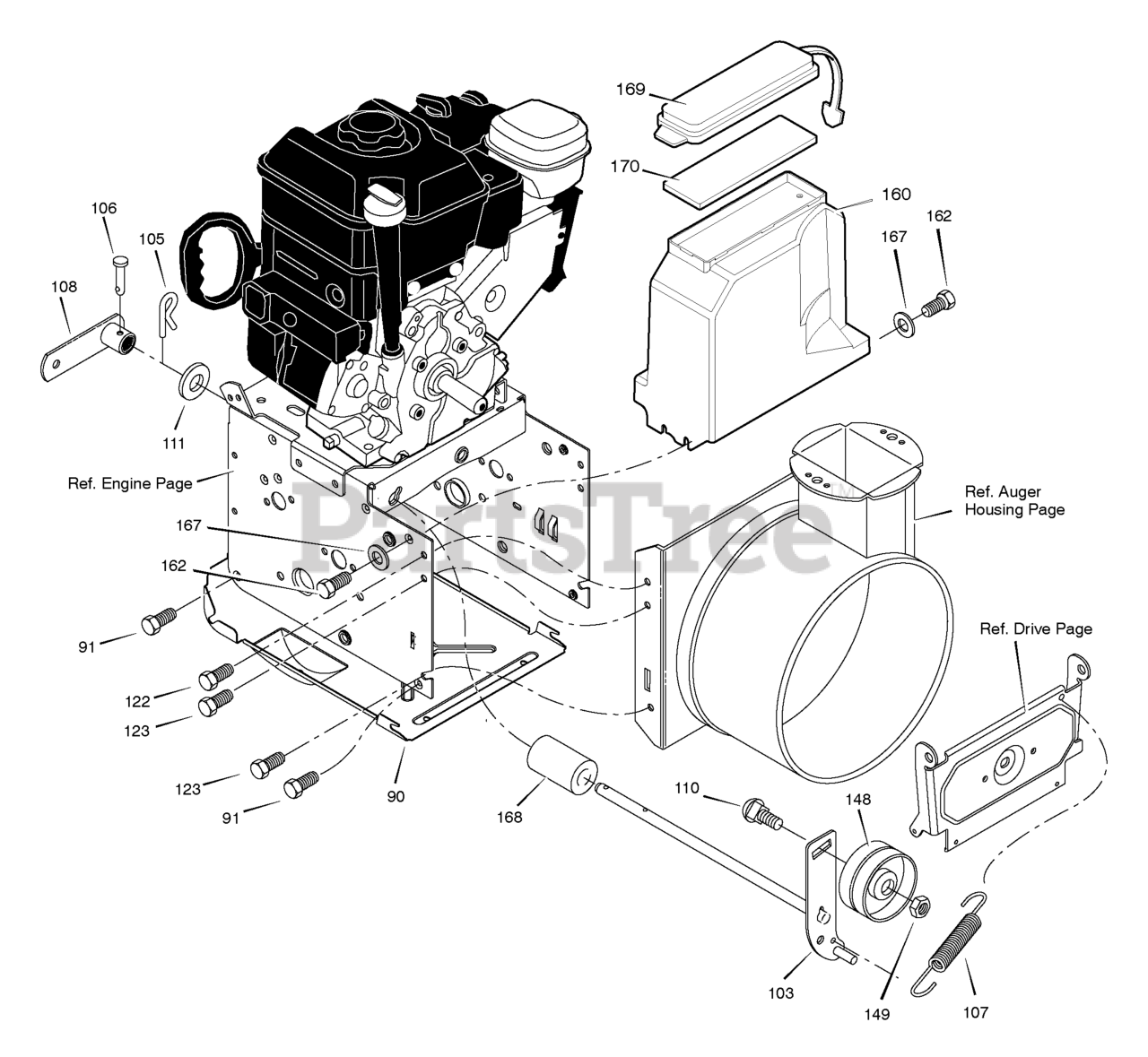

Frame Parts Diagram

  • Title

90

Murray 1501055E701MA

COVER, BOTTOM

$35.99

$

In Stock, only 1 left!

0

91

Murray 310169MA

SCREW, 1/4-20X .63
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

103

Murray 1501782 YZ

IDLER ASSEMBLY, AUGER

$

$

Not available

105

Murray 711682MA

PIN, HAIR .38DIAX1.64LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

106

Murray 761761MA

PIN, CLEVIS 3/16" DIA

$6.99

$

Usually ships in 2-12 days

0

107

Murray 165X159MA

SPRING, TENSION

$6.99

$

In Stock, Qty 10

0

108

Murray 761675 YZ

ASSY., SPRING ATTACH

$6.49

$

Usually ships in 2-12 days

0

110

Murray 585781MA

BOLT, 3/8-16X1.25 CARR.
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

111

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, only 2 left!

0

122

Murray 25X020MA

SCREW, TAP 5/16-18 X .50

$4.99

$

In Stock, Qty 6

0

123

Murray 25X021MA

SCREW, TAP 5/16-18 X .75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

148

Murray 1502120

PULLEY, IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, only 1 left!

0

149

Murray 590

NUT 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

160

Murray 1502184

COVER, BELT

$53.99

$

Usually ships in 2-12 days

0

162

Murray 26X306MA

SCREW, TAP

$4.99

$

Usually ships in 2-12 days

0

167

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

168

Murray 1501200MA

SPACER, AUGER BRACKET

$5.99

$

Usually ships in 2-12 days

0

169

Murray 760539MA

LID, TOOL BOX

$10.99

$

In Stock, only 1 left!

0
