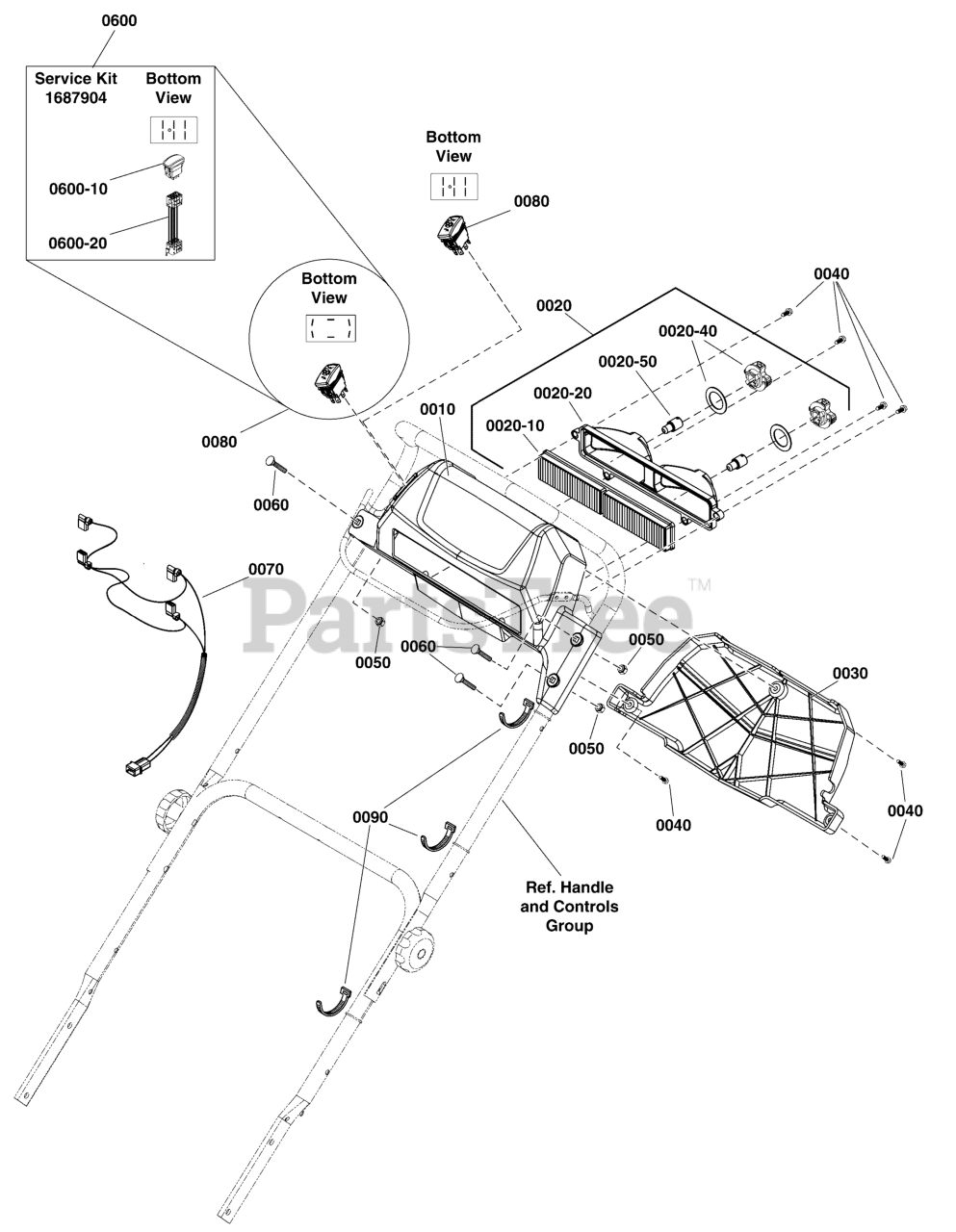

C950-52486-2 (1696555-02) - Craftsman 22" Snow Thrower, Canada (2017) Light Panel Group Parts Diagram

22" Snow Thrower, Canada

Light Panel Group Parts Diagram

  • Title

0010

Murray 706480

PANEL

$63.99

$

Usually ships in 2-12 days

0

0020

Murray 1736176YP

HEADLIGHT ASSEMBLY

Note: (Includes Ref. Nos. 0020-10, 0020-20, 0020-40 & 0020-50)

$68.99

$

Usually ships in 2-12 days

0

0020-10

Murray 1736177YP

LENS, Twin Light
(Superseded to 1736176YP)

$68.99

$

Usually ships in 2-12 days

0

0020-20

Murray 1736178YP

DEFLECTOR
(Superseded to 1736176YP)

$68.99

$

Usually ships in 2-12 days

0

0020-40

Murray 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

$10.99

$

Usually ships in 2-12 days

0

0020-50

Murray 1736181YP

BULB, Headlight, 12V 15W (1156)
(Superseded to 1736176YP)

$68.99

$

Usually ships in 2-12 days

0

0030

Murray 706481

COVER, Light Panel

$35.99

$

Usually ships in 2-12 days

0

0040

Murray 7091105YP

SCREW, Hex Washer Head, #10-16 x 1/2
(Superseded to 26X245MA)

$4.49

$

In Stock, Qty 10

0

0050

Murray 703232

NUT, Hex Lock, 1/4-20, ESNA

$4.49

$

In Stock, Qty 20+

0

0060

Murray 708701

SCREW, Allen Head, 1/4-20 x 1-1/2

$3.99

$

Usually ships in 2-12 days

0

0070

Murray 706483

HARNESS, Wiring

Note: (Used Before Serial No. 2017430819)

$35.99

$

Usually ships in 2-12 days

0

0070

Murray 708158

HARNESS, Wiring with Remote Rectifier

Note: (Used After Serial No. 2017430818)

$63.99

$

In Stock, only 1 left!

0

0080

Murray 1754865YP

SWITCH, Chute Rotation
(Superseded to 1687904)

Note: (Used Before Serial No. 2017430819) (Order 0600 When Bottom View of Switch Terminal Pattern Matches 0080.)

$87.99

$

In Stock, only 3 left!

0

0080

Murray 709954

SWITCH, Chute Rotation

Note: (Used After Serial No. 2017430818)

$49.99

$

In Stock, only 3 left!

0

0090

Murray 7024649YP

WIRE TIE,11 Inch Standard Black Nylon

$5.49

$

Usually ships in 2-12 days

0

0600

Murray 1687904

WIRE HARNESS ADAPTER KIT, CHUTE ROTATION

$87.99

$

In Stock, only 3 left!

0

0600-10

Murray 709954

SWITCH, Chute Rotation

$49.99

$

In Stock, only 3 left!

0

0600-20

Murray 84003010

HARNESS, Wire

$47.99

$

In Stock, only 1 left!

0
