C950-52734-0 - Craftsman 21" Snow Thrower, Canada (2007) Handle Parts Diagram

21" Snow Thrower, Canada

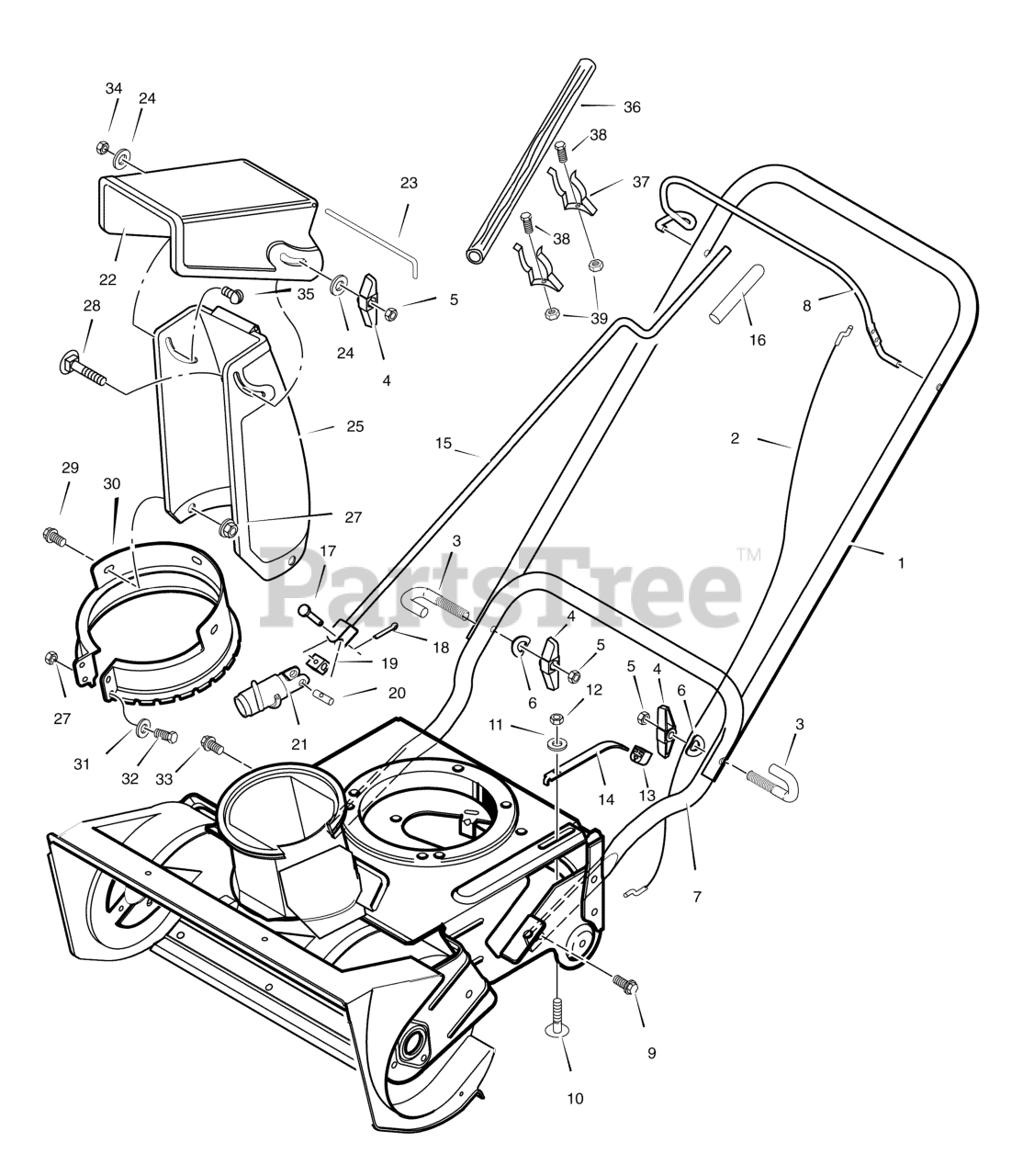

Handle Parts Diagram

  • Title

1

Murray 1741469E701MA

Handle, Upper

$112.99

$

Usually ships in 2-12 days

0

2

Murray 762259MA

Cable, Auger Drive

$12.99

$

Usually ships in 2-12 days

0

3

Murray 1501877MA

U-Bolt

$6.49

$

In Stock, only 1 left!

0

4

Murray 57171MA

Knob
(Superseded to 1501260MA)

$7.99

$

In Stock, only 2 left!

0

5

Murray 71037MA

Nut
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Murray 311936MA

Washer

$7.49

$

In Stock, only 2 left!

0

7

Murray 1741468E701MA

Handle, Lower

$58.99

$

Usually ships in 2-12 days

0

8

Murray 762251E701MA

Lever, Auger Drive

$

$

Not available

9

Murray 25X021MA

Screw
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

10

Murray 340715MA

Bolt

$5.49

$

Usually ships in 2-12 days

0

11

Murray 712123MA

Washer

$3.99

$

Usually ships in 2-12 days

0

12

Murray 780029MA

Nut

$4.99

$

Usually ships in 2-12 days

0

13

Murray 762281MA

Bushing, Tensioner

$8.99

$

In Stock, Qty 7

0

14

Murray 762282MA

Bracket, Cable Tensioner

$8.49

$

In Stock, only 4 left!

0

15

Murray 762362MA

Rod, Crank

$68.99

$

Usually ships in 2-12 days

0

16

Murray 762289MA

Grip, Crank Rod

$4.49

$

Usually ships in 2-12 days

0

17

Murray 578309MA

Pin, Clevis

$5.49

$

Usually ships in 2-12 days

0

18

Murray 579493MA

Pin, Cotter

$4.49

$

In Stock, only 4 left!

0

19

Murray 578063MA

Block, Universal Pivot

$5.49

$

In Stock, Qty 10

0

20

Murray 578060MA

Pin

$7.49

$

In Stock, Qty 5

0

21

Murray 585196MA

Gear, Worm

$11.99

$

In Stock, Qty 7

0

22

Murray 305861MA

Chute, Upper Deflector
(Superseded to 314704MA)

$40.99

$

In Stock, only 1 left!

0

23

Murray 310562MA

Pin, Pivot

$5.99

$

In Stock, only 1 left!

0

24

Murray 71071MA

Washer
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

25

Murray 305862MA

Chute, Lower Discharge

$40.99

$

Usually ships in 2-12 days

0

27

Murray 15X143MA

Nut

$4.99

$

In Stock, only 4 left!

0

28

Murray 302843MA

Bolt

$

$

Not available

29

Murray 313686MA

Bolt

$3.99

$

In Stock, only 2 left!

0

30

Murray 1501846MA

Ring, Chute

$38.99

$

In Stock, only 1 left!

0

31

Murray 71067MA

Washer

$4.49

$

In Stock, only 1 left!

0

32

Murray 302628MA

Bolt

$4.49

$

In Stock, Qty 6

0

33

Murray 25X021MA

Screw
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

34

Murray 71391MA

Locknut

$4.49

$

In Stock, only 1 left!

0

35

Murray 578088MA

Bolt

$4.99

$

In Stock, only 1 left!

0

36

Murray 304361MA

Tool, Clean-out

$17.99

$

Usually ships in 2-12 days

0

37

Murray 1501672MA

Clip, Retainer

$8.99

$

In Stock, only 3 left!

0

38

Murray 414291MA

Screw, 10-32 x 1.25

$3.49

$

Usually ships in 2-12 days

0

39

Murray 997319MA

Nut, 10-32

$3.49

$

Usually ships in 2-12 days

0
