C950-52735-0 - Craftsman 22" Snow Thrower, Canada (2007) (Sears) Handle Assembly Parts Diagram

22" Snow Thrower, Canada

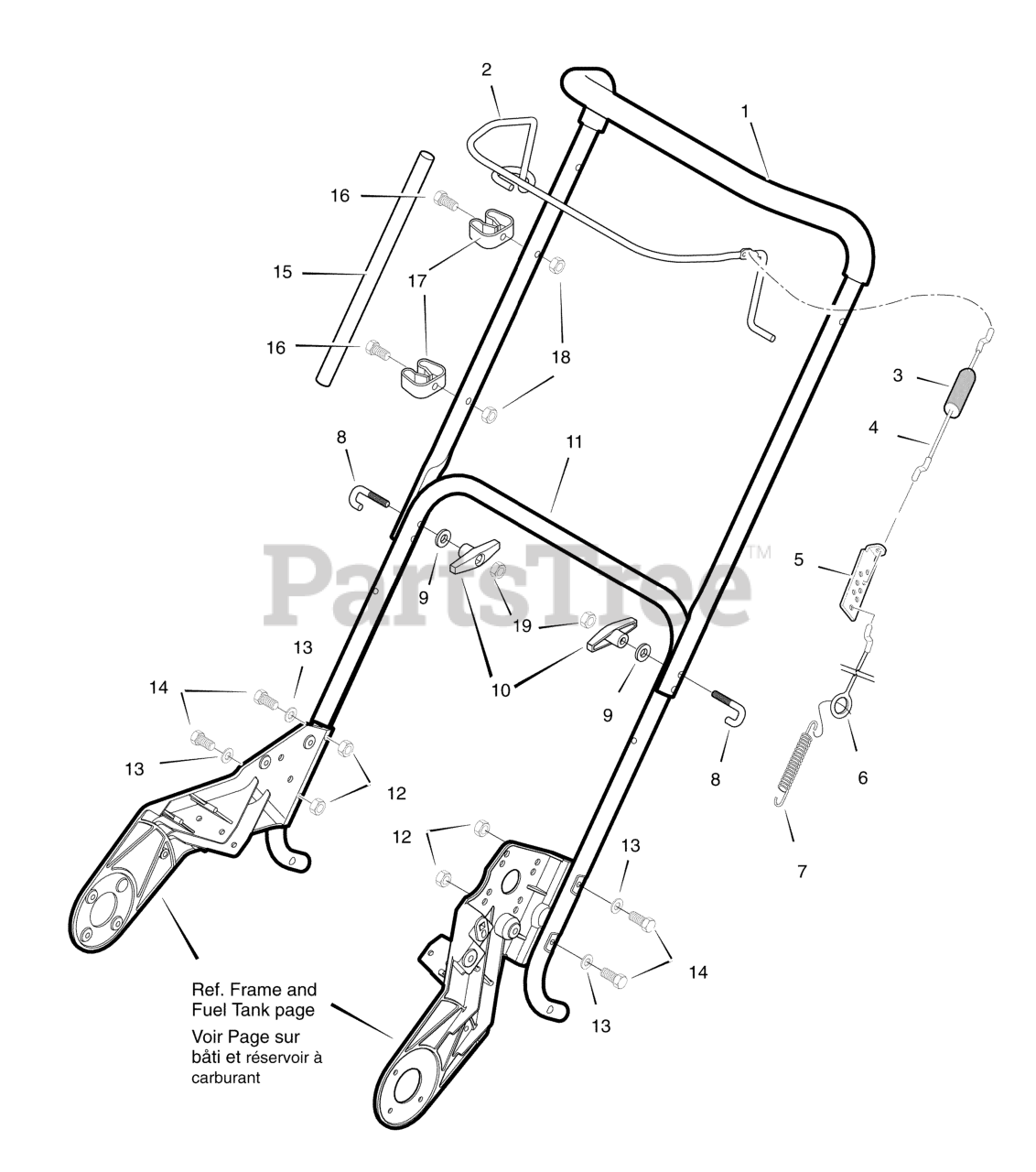

Handle Assembly Parts Diagram

  • Title

1

Murray 1502149E701MA

Handle, Upper (Foam)

$142.99

$

Usually ships in 2-12 days

0

2

Murray 1501861E701MA

Control, Bail

$68.99

$

Usually ships in 2-12 days

0

3

Murray 308146MA

Boot, Clutch Spring

$6.49

$

In Stock, only 1 left!

0

4

Murray 1502042MA

Cable, Upper Control

$14.99

$

Usually ships in 2-12 days

0

5

Murray 313441MA

Bracket, Control Adjust

$

$

Not available

6

Murray 313448MA

Cable, Lower Control

$10.99

$

In Stock, only 1 left!

0

7

Murray 313471MA

Spring

$4.99

$

In Stock, only 1 left!

0

8

Murray 1501877MA

U-Bolt

$6.49

$

In Stock, only 1 left!

0

9

Murray 311936MA

Washer

$7.49

$

In Stock, only 2 left!

0

10

Murray 57171MA

Knob, Wing
(Superseded to 1501260MA)

$7.99

$

In Stock, only 2 left!

0

11

Murray 1501860E701MA

Handle, Lower

$

$

Not available

12

Murray 73826MA

Nut
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

13

Murray 71067MA

Washer

$4.49

$

In Stock, only 1 left!

0

14

Murray 313674MA

Screw, 1/4-20 x 1.25

$3.99

$

Usually ships in 2-12 days

0

15

Murray 1501672MA

Tool, Clean-out

$8.99

$

In Stock, only 3 left!

0

16

Murray 414291MA

Screw

$3.49

$

Usually ships in 2-12 days

0

17

Murray 304362MA

Clip, Retainer
(Superseded to 1501672MA)

$8.99

$

In Stock, only 3 left!

0

18

Murray 997319MA

Nut

$3.49

$

Usually ships in 2-12 days

0

19

Murray 71037MA

Nut 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
