C950-52871-0 (1695564) - Craftsman 31" Snow Thrower, Canada (2008) Handle Assembly Parts Diagram

31" Snow Thrower, Canada

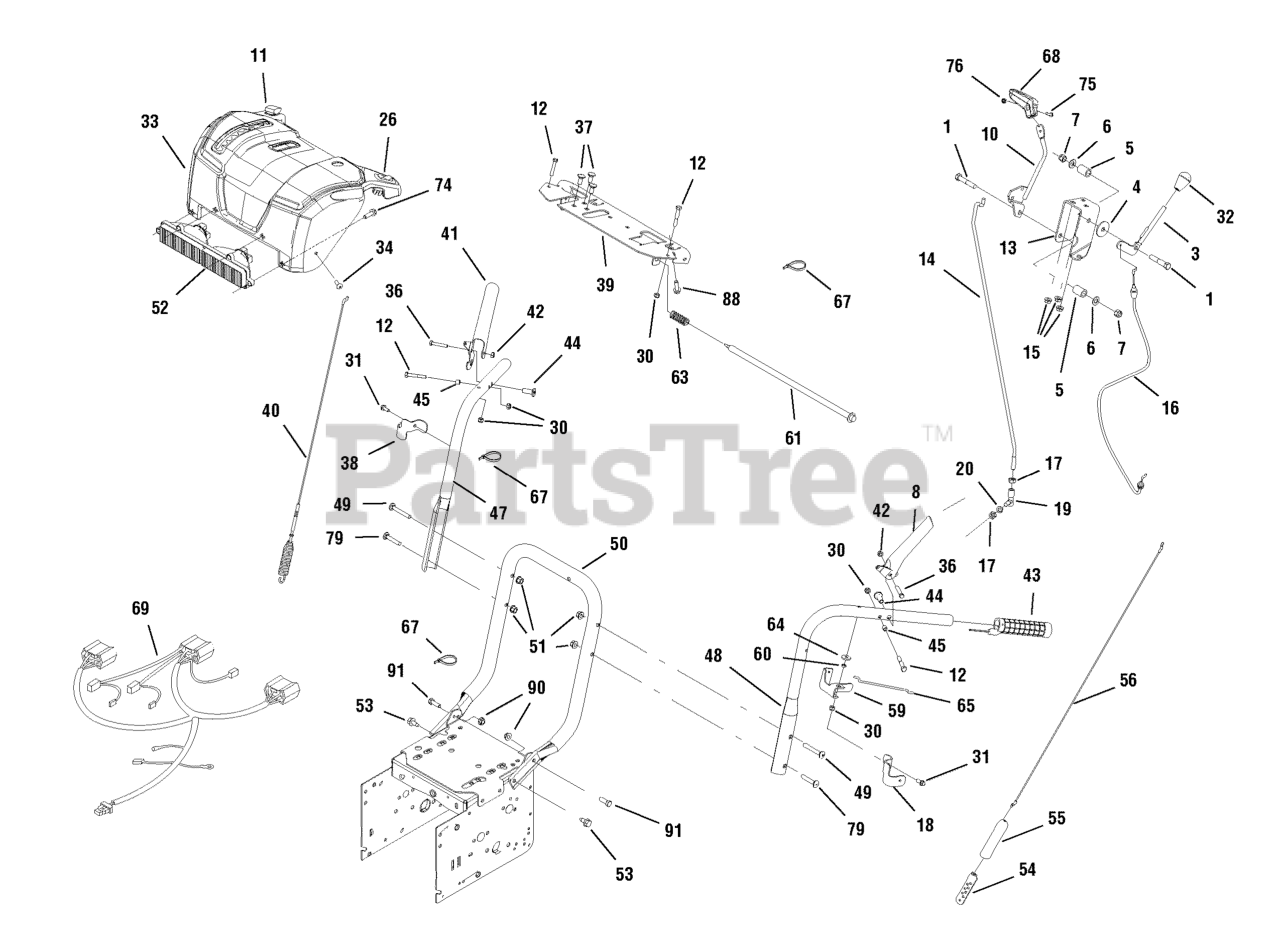

Handle Assembly Parts Diagram

  • Title

1

Murray 1923701SM

CAPSCREW-HEX. 375 - 16x2.00
(Superseded to 703589)

$4.49

$

In Stock, Qty 17

0

3

Murray 1736192YP

LEVER-DEFLECTOR CONTROL

$13.99

$

Usually ships in 2-12 days

0

4

Murray 1924356SM

WASHER- 0.375 0.4 1x 1.50 x .12
(Superseded to 703591)

$5.49

$

In Stock, Qty 12

0

5

Murray 50786MA

SPRING- COMPRESSION .509 x .75 2

$5.49

$

Usually ships in 2-12 days

0

6

Murray 1918266SM

WASHER- O. 375 O. 4 1 x 0.8 1 x .06
(Superseded to 703590)

$3.99

$

In Stock, Qty 7

0

7

Murray 1919439SM

NUT -HEXLK ESNA LT . 38- 16NC3B
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

8

Murray 1736324YP

LEVER-CLUTCH LH PLASTISOL DIP

$31.99

$

Usually ships in 2-12 days

0

10

Murray 1736836YP

LEVER ASSEMBLY-SPEED
(Superseded to 703047)

$59.99

$

Usually ships in 2-12 days

0

11

Murray 1728969SM

SWITCH, CHUTE CONTROL

$57.99

$

In Stock, only 4 left!

0

12

Murray 1921962SM

CAPSCREW-HEX .250- 20 x 1 . 75
(Superseded to 703586)

$4.99

$

In Stock, only 1 left!

0

13

Murray 1733045ASM

BRKT- SPEED & DEFLECTOR CONTROL

$19.99

$

Usually ships in 2-12 days

0

14

Murray 1734354SM

ROD-LINK SPEED CONTROL
(Superseded to 704085)

$24.99

$

Usually ships in 2-12 days

0

15

Murray 1931277SM

NUT-HEX FLANGE . 3 12- 18 WHIZ
(Superseded to 703409)

$5.99

$

In Stock, Qty 13

0

16

Murray 1732971SM

CABLE ASSEMBLY-DEFLECTOR
(Superseded to 1750623YP)

$49.99

$

In Stock, Qty 11

0

17

Murray 2820263SM

NUT-HEX . 3 12- 24 YEL LOW
(Superseded to 703331)

$4.49

$

In Stock, Qty 14

0

18

Murray 1736174YP

MNTG BRKT - DASH LH

$22.99

$

Usually ships in 2-12 days

0

19

Murray 50782MA

BALLJOINT-STEEL

$22.99

$

In Stock, only 4 left!

0

20

Murray 1917356SM

LOCKWASHER - SPRING . 312 BLK
(Superseded to 5025170SM)

$4.49

$

In Stock, only 3 left!

0

26

Murray 1736446YP

SWITCH, HAND WARMER

$32.99

$

Usually ships in 2-12 days

0

30

Murray 1920397SM

NUT-HEX LOCK ESNA .250-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

31

Murray 1927429SM

SCREW-HEX WSHR HD TT .25- 20x. 62
(Superseded to 703054)

$4.49

$

In Stock, Qty 11

0

32

Murray 1732470SM

KNOB

$20.99

$

In Stock, only 2 left!

0

33

Murray 1736951YP

COVER-PANEL ASS'Y

$135.99

$

Usually ships in 2-12 days

0

34

Murray 1960556SM

SCREW-PAN HD TR x . 250-20 x .75 TAP

$4.99

$

Usually ships in 2-12 days

0

36

Murray 1922837SM

CAPSCREW- HEX .2 50 -20 x 1 .50
(Superseded to 703234)

$4.49

$

In Stock, only 1 left!

0

37

Murray 703225

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

38

Murray 1736175YP

MNTG BRKT - DASH RH

$22.99

$

Usually ships in 2-12 days

0

39

Murray 1735628AYP

SUPPORT-DASH PANEL

$41.99

$

Usually ships in 2-12 days

0

40

Murray 1732471SM

CABLE & SPRING ASSEMBLY

$

$

Not available

41

Murray 1736323YP

GRIP-CLUTCH-RH PLASTISOL

$22.99

$

Usually ships in 2-12 days

0

42

Murray 1923358SM

NUT-HEX CTR LOCK. 250- 20 BLK
(Superseded to 703954)

$5.49

$

In Stock, Qty 11

0

43

Murray 1501352MA

HAND GRIP- HEATED

$85.99

$

In Stock, only 1 left!

0

44

Murray 1736542YP

SPACER- HANDLE-YELLOW
(Superseded to 703223)

$4.49

$

Usually ships in 2-12 days

0

45

Murray 1678392SM

SPACER- 0.265x0.370x.330
(Superseded to 703137)

$7.49

$

In Stock, only 2 left!

0

47

Murray 1734587ASM

HANDLE-UPPER RH

$54.99

$

Usually ships in 2-12 days

0

48

Murray 1734586ASM

HANDLE-UPPER LH

$58.99

$

Usually ships in 2-12 days

0

49

Murray 1960723SM

BOLT-RD HD SO NK .312-18x2.25
(Superseded to 704421)

$5.49

$

In Stock, Qty 17

0

50

Murray 1736301AYP

HANDLE-LOWER

$102.99

$

Usually ships in 2-12 days

0

51

Murray 1960686SM

NUT-HEX FLANGE.312-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

52

Murray 1736176YP

HEAD LIGHT ASSEMBLY

$68.99

$

Usually ships in 2-12 days

0

--

BULB, TWIN LIGHT

Note: (15W 12V)

$

$

Not available

53

Murray 1664847SM

SCREW-HEX WSHR HD TT .31-18x.75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

54

Murray 313441MA

BRACKET-CABLE ADJ

$

$

Not available

55

Murray 308146MA

BOOT-CONTROL SPRING

$6.99

$

In Stock, Qty 8

0

56

Murray 1502113MA

CABLE-DRIVE

$22.99

$

In Stock, Qty 8

0

59

Murray 1733505ASM

BRACKET-FREE HAND CONTROL
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

60

Murray 1733095SM

SPACER-PWDR METAL YELLOW

$4.49

$

Usually ships in 2-12 days

0

61

Murray 1736363YP

ROD-FREE HAND CONTROL

$35.99

$

Usually ships in 2-12 days

0

63

Murray 2108360SM

SPRING-COMP.53x2.25 .059 WIRE

$5.99

$

In Stock, Qty 10

0

64

Murray 1960353SM

WASHER-.250.26x0.84x.12
(Superseded to 703229)

$4.49

$

In Stock, Qty 16

0

65

Murray 1736360YP

ROD-HOLDDOWN

$12.99

$

Usually ships in 2-12 days

0

67

Murray 1701011SM

TIE-SELF LOCKING .184WDx7.31

$5.49

$

In Stock, only 2 left!

0

68

Murray 1733192SM

KNOB

$8.99

$

Usually ships in 2-12 days

0

69

Murray 1736783YP

HARNESS, WIRE HEATED GRIPS, CHUTE ROTATE

$145.99

$

Usually ships in 2-12 days

0

74

Murray 7091105YP

SCREW 10-16 x.5 HI/LO HEX WSH HD TAP
(Superseded to 26X245MA)

$4.49

$

In Stock, Qty 10

0

75

Murray 1960589SM

SCREW-RD HD PHIL 1/10-24 x.75

$4.49

$

Usually ships in 2-12 days

0

76

Murray 1933896SM

NUT-HEX ESNA LOCK 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

79

Murray 1931338SM

BOLT-RD HD SH SO NK .312-18x1.75
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

88

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 1960728SM)

$3.99

$

In Stock, only 4 left!

0

90

Murray 1935048SM

NUT-HEX FLANGE .31-18 2-WAY LK
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

91

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, only 4 left!
