C950-52943-0 (1695736) - Craftsman 27" Snow Thrower, Canada (2009) Auger Housing Parts Diagram

27" Snow Thrower, Canada

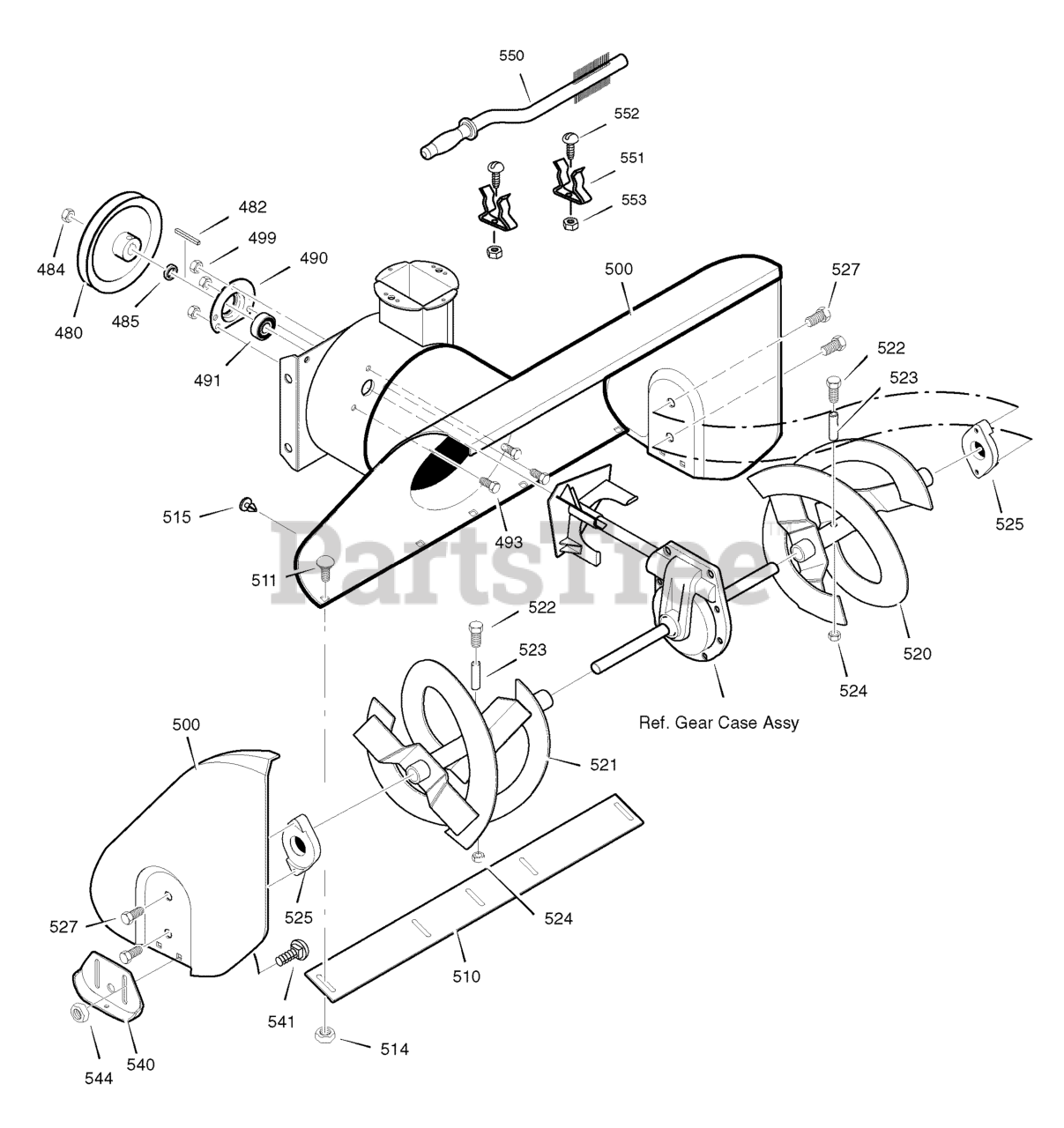

Auger Housing Parts Diagram

  • Title

480

Murray 583146MA

PULLEY, 4L 8.40 OD.

$

$

Not available

482

Murray 2001022MA

KEY, SQUARE 3/16 X 3/4

$4.99

$

In Stock, Qty 11

0

484

Murray 15X112MA

NUT, .50-20 HEXWDFLLK

$5.49

$

In Stock, Qty 20+

0

485

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 7

0

490

Murray 582957YZMA

RETAINER, BALL BEARING
(Superseded to 1756809YP)

$11.99

$

In Stock, only 2 left!

0

491

Murray 1705897SM

BEARING, BALL

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X45MA

BOLT, HEX 5/16-18 X .62
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

499

Murray 710026MA

NUT, 5/16-18 HEXWDFLLK
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

500

Murray 1737905BNYP

HOUSING, ASSEMBLY
(Superseded to 1687528YP)

$501.99

$

Usually ships in 2-12 days

0

510

Murray 1740949AYP

BLADE, SCRAPER
(Superseded to 1740949BMYP)

$37.99

$

In Stock, only 2 left!

0

511

Murray 7090799SM

BOLT, 1/4-18 X .75
(Superseded to 703447)

$4.49

$

In Stock, Qty 18

0

514

Murray 710026MA

NUT, 5/16- 18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

515

Murray 760040MA

PLUG, PANEL

$

$

Not available

520

Murray 1738044AYP

AUGER, ASSEMBLY, LH
(Superseded to 1738044BMYP)

$173.99

$

Usually ships in 2-12 days

0

521

Murray 1738043AYP

AUGER, ASSEMBLY, RH

$187.99

$

Usually ships in 2-12 days

0

522

Murray 9524MA

SCREW, 1/4-20 X 1.75
(Superseded to 703057)

$6.49

$

In Stock, only 3 left!

0

523

Murray 3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 2 left!

0

524

Murray 73826MA

NUT, 1/4-20
(Superseded to 703251)

$5.49

$

In Stock, Qty 12

0

525

Murray 53757MA

BEARING, FLANGE

$10.99

$

In Stock, only 2 left!

0

527

Murray 25X021MA

SCREW, 5/16-18 x 0.75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

540

Murray 1737986AYP

SKID, HEIGHT ADJUST
(Superseded to 1740912BMYP)

$13.99

$

In Stock, Qty 20+

0

541

Murray 7091547YP

BOLT, Shoulder, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

544

Murray 710026MA

NUT, 5/16- 18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

550

Murray 1736094YP

BRUSH, CLEANOUT

$36.99

$

In Stock, only 2 left!

0

551

Murray 1736620YP

CLAMP, SPRING

$6.99

$

In Stock, Qty 8

0

552

Murray 1960569SM

SCREW
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

553

Murray 15X146MA

NUT
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

--

Murray 1501216MA

KIT, SHEAR BOLT

$5.49

$

In Stock, Qty 20+

0

--

Murray 680230ZMA

WRENCH

$11.99

$

Usually ships in 2-12 days

0
