C950-52951-0 (1695744 A) - Craftsman 31" Snow Thrower, Canada (2009) Discharge Chute Parts Diagram

31" Snow Thrower, Canada

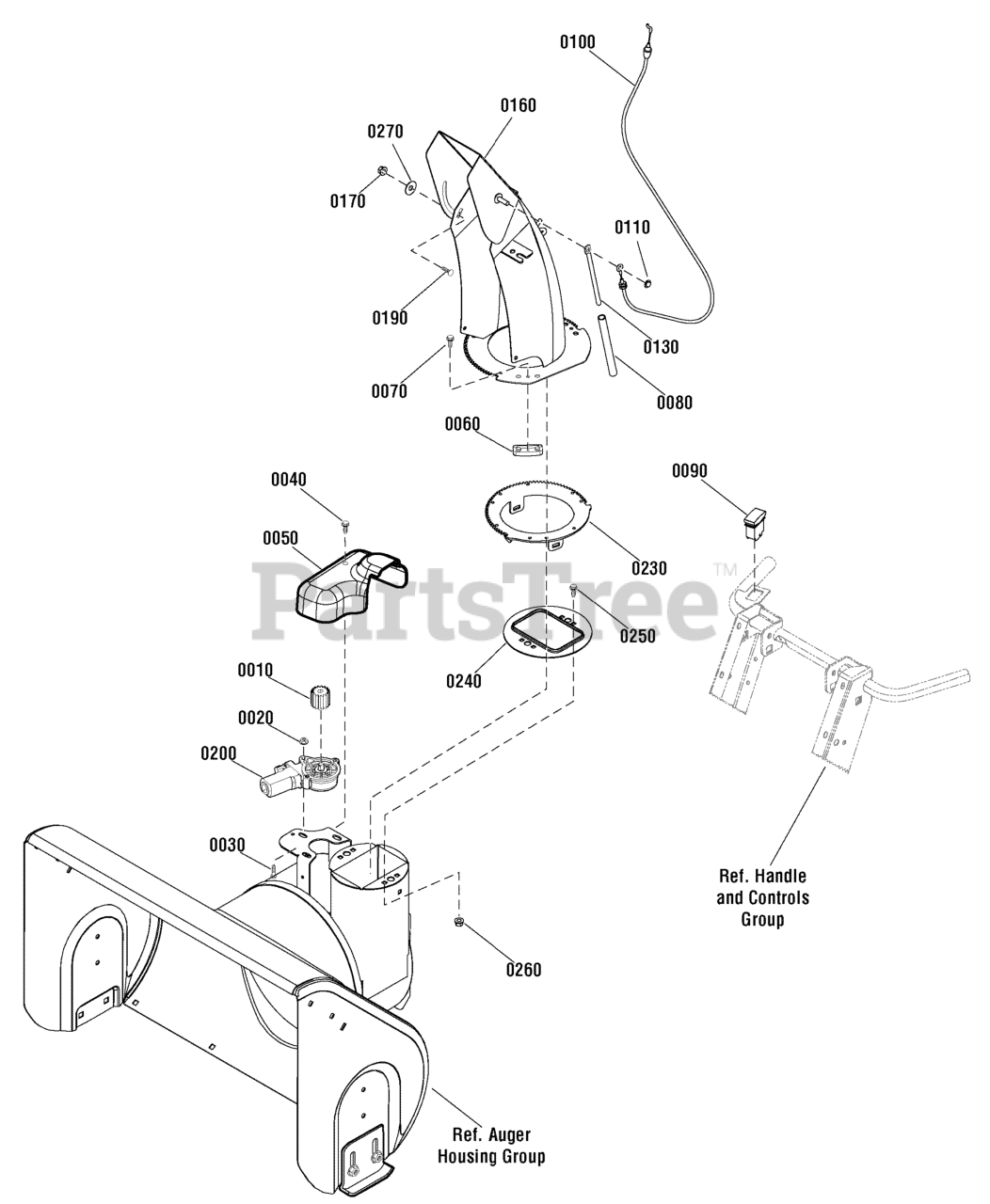

Discharge Chute Parts Diagram

  • Title

0010

Murray 1728967SM

PINION

$18.99

$

In Stock, Qty 6

0

0020

Murray 1960745SM

NUT, Hex Flange, Whiz Lock, #10-24
(Superseded to 703917)

$3.99

$

In Stock, Qty 20+

0

0030

Murray 2860604SM

SCREW, Hex Washer Head,#10C x 1-1/4 G2

$4.99

$

In Stock, Qty 20+

0

0040

Murray 1925592SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 1737455YP

COVER, Electric Chute Rotation
(Superseded to 1752877YP)

$17.99

$

In Stock, only 2 left!

0

0060

Murray 7011938SM

RETAINER, Spout

$4.49

$

Usually ships in 2-12 days

0

0070

Murray 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.99

$

In Stock, Qty 20+

0

0080

Murray 1734647SM

SPRING, Compression, 6 Inch
(Superseded to 703135)

$4.49

$

Usually ships in 2-12 days

0

0090

Murray 1738243YP

SWITCH, Chute Rotation

$57.99

$

In Stock, only 2 left!

0

0100

Murray 1732971SM

CABLE, Delfector Control
(Superseded to 1750623YP)

$49.99

$

In Stock, Qty 11

0

0110

Murray 1932718SM

NUT, Push, 5/16
(Superseded to 704028)

$5.49

$

In Stock, Qty 7

0

0130

Murray 1734708ASM

ROD, Spring Guide, 5-7/8

$14.99

$

Usually ships in 2-12 days

0

0160

Murray 1737443AYP

CHUTE

$132.99

$

Usually ships in 2-12 days

0

0170

Murray 1960686SM

NUT, Hex Flange, Esna, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

0190

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0200

Murray 1728965SM

MOTOR, Spout Rotator

$181.99

$

In Stock, only 2 left!

0

0230

Murray 1737465AYP

GEAR, Short, Steel Chute

$42.99

$

Usually ships in 2-12 days

0

0240

Murray 1737411YP

ADAPTER, Chute Ring

$20.99

$

Usually ships in 2-12 days

0

0250

Murray 1931317SM

BOLT, Carriage, 1/4-20 x 3/4 G5
(Superseded to 703101)

$4.49

$

In Stock, only 4 left!

0

0260

Murray 2860694SM

NUT, Hex Flange, Esna, 1/4-20
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

0270

Murray 2860210SM

WASHER, Nylon, 3/8

$4.99

$

In Stock, only 2 left!

0
