C950-52955-0 (1695745) - Craftsman 27" Snow Thrower, Canada (2009) Handle Assembly Group Parts Diagram

27" Snow Thrower, Canada

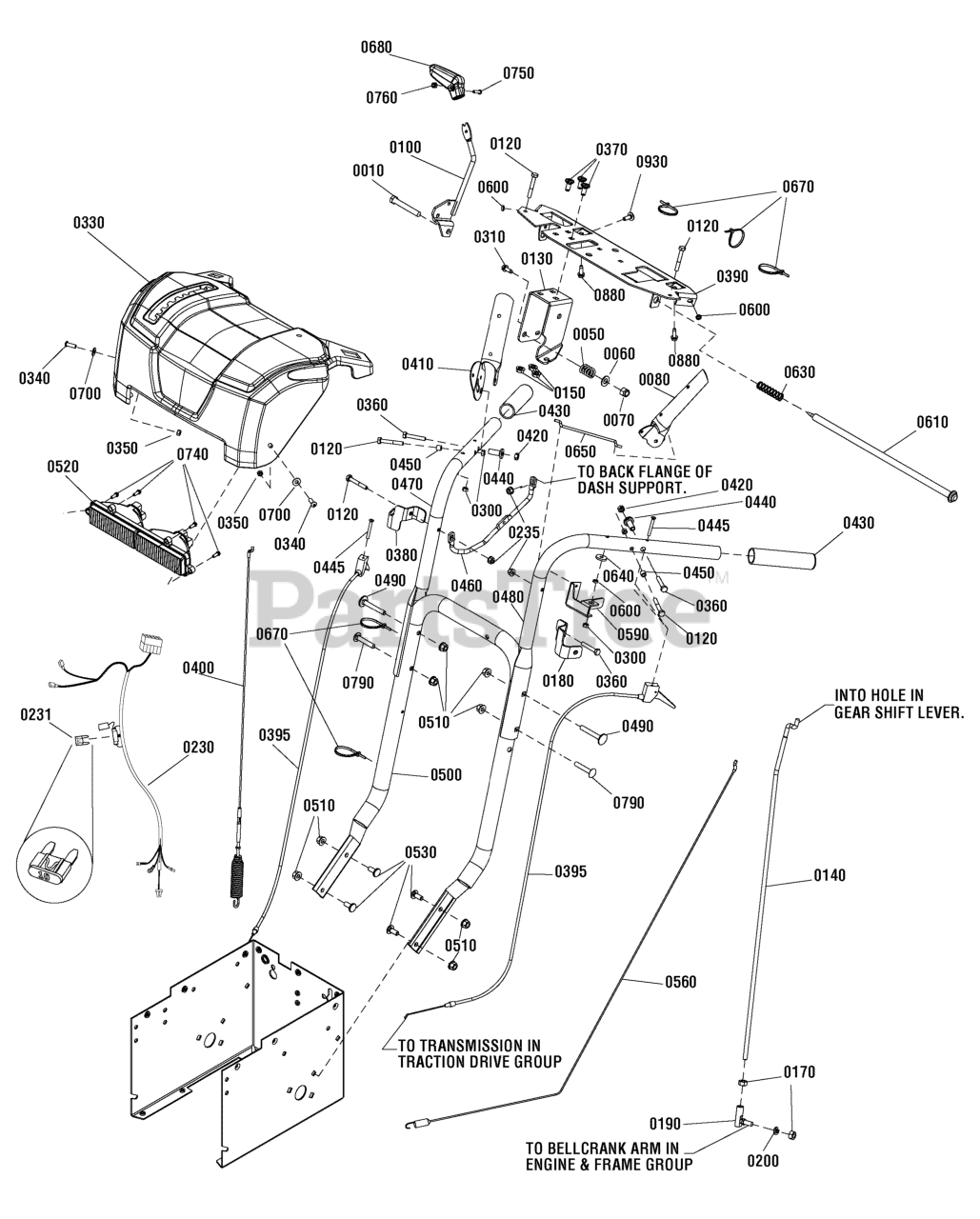

Handle Assembly Group Parts Diagram

  • Title

0010

Murray 1923701SM

CAPSCREW, Hex Head 3/8-16 x 2 G5
(Superseded to 703589)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 50786MA

SPRING, Compression .509 DIA x 3/4

$5.49

$

Usually ships in 2-12 days

0

0060

Murray 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

0070

Murray 1919439SM

NUT, Hex Lock ESNA Light, 3/8-16
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

0080

Murray 1737690YP

LEVER, Clutch, Left

$39.99

$

In Stock, only 2 left!

0

0100

Murray 1736836YP

ASSEMBLY, Speed Lever
(Superseded to 703047)

$59.99

$

Usually ships in 2-12 days

0

0120

Murray 1921962SM

CAPSCREW, Hex Head 1/4-20 x 1-3/4 G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0130

Murray 1737684YP

BRACKET, Controls

$17.99

$

Usually ships in 2-12 days

0

0140

Murray 1737331YP

ROD, SPEED SELECT

$20.99

$

In Stock, only 1 left!

0

0150

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0170

Murray 2820263SM

NUT, Hex 5/16-24
(Superseded to 703331)

$4.49

$

In Stock, Qty 17

0

0180

Murray 1736175YP

BRACKET, Mounting, Panel, Right

$22.99

$

Usually ships in 2-12 days

0

0190

Murray 50782MA

BALLJOINT, STEEL

$22.99

$

In Stock, only 4 left!

0

0200

Murray 1917356SM

LOCKWASHER, Spring 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

0230

Murray 1738241YP

WIRE HARNESS, Headlights, Electric Chute and Deflector

$101.99

$

Usually ships in 2-12 days

0

0231

FUSE, MINI 10 AMP *

$

$

Not available

0235

Murray 703463

NUT, Nylock Flanged, 1/4-20
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

0300

Murray 1920397SM

NUT, Hex Lock ESNA Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0310

Murray 1927429SM

SCREW, Hex Washer Head Taptite 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 12

0

0330

Murray 1738331YP

DASH ASSEMBLY, Twin Light

$101.99

$

Usually ships in 2-12 days

0

0340

Murray 1960556SM

SCREW, Pan Head, Torx,1/4-20 x 3/4

$4.99

$

Usually ships in 2-12 days

0

0350

Murray 7091576SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 17

0

0360

Murray 1922837SM

CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5
(Superseded to 703234)

$4.49

$

In Stock, only 1 left!

0

0370

Murray 340720MA

BOLT, 5/16-18 X .75
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

0380

Murray 1736174YP

BRACKET, Mounting, Panel, Left

$22.99

$

Usually ships in 2-12 days

0

0390

Murray 1737685AYP

SUPPORT, DASH PANEL

$47.99

$

Usually ships in 2-12 days

0

0395

Murray 1737510YP

CABLE STEERING CONTROL

$35.99

$

Usually ships in 2-12 days

0

0400

Murray 1737544YP

CABLE AND SPRING ASSEMBLY, AUGER DRIVE
(Superseded to 703221)

$26.99

$

In Stock, only 3 left!

0

0410

Murray 1736323YP

LEVER, Clutch, Right

$22.99

$

Usually ships in 2-12 days

0

0420

Murray 1923358SM

NUT, Hex Centerlock 1/4-20
(Superseded to 703954)

$5.49

$

In Stock, Qty 12

0

0430

Murray 1726317SM

HAND GRIP

$8.99

$

Usually ships in 2-12 days

0

0440

Murray 1736542YP

SPACER, 1/4 ID x 3/8 OD 1" Long
(Superseded to 703223)

$4.49

$

Usually ships in 2-12 days

0

0445

Murray 7073145YP

SCREW, 10 X 1-1/2
(Superseded to 703134)

$3.49

$

Usually ships in 2-12 days

0

0450

Murray 1678392SM

SPACER, Handle Stop
(Superseded to 703137)

$7.49

$

In Stock, only 2 left!

0

0460

Murray 1737552YP

BRACE, SHIFT

$24.99

$

In Stock, only 1 left!

0

0470

Murray 1737531AYP

HANDLE, RH Upper

$62.99

$

Usually ships in 2-12 days

0

0480

Murray 1737532AYP

HANDLE, LH Upper

$56.99

$

Usually ships in 2-12 days

0

0490

Murray 1960273SM

BOLT, Carriage, 5/16-18 x 2-1/4
(Superseded to 704421)

$5.49

$

In Stock, Qty 17

0

0500

Murray 1737274AYP

HANDLE, Lower

$113.99

$

Usually ships in 2-12 days

0

0510

Murray 1960686SM

NUT, Hex Flange ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0520

Murray 1736176YP

HEADLIGHT ASSEMBLY

$68.99

$

Usually ships in 2-12 days

0

0530

Murray 1737687YP

CARRIAGE BOLT, 5/16-18 x 3/4

$6.99

$

Usually ships in 2-12 days

0

0560

Murray 1737511YP

CABLE, TRACTION DRIVE

$26.99

$

Usually ships in 2-12 days

0

0590

Murray 1733505ASM

BRACKET, Free Hand Control
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0600

Murray 1733095SM

SPACER, Powerdered Metal

$4.49

$

Usually ships in 2-12 days

0

0610

Murray 1733509SM

ROD & SPRING ASSEMBLY, with Pin

$86.99

$

Usually ships in 2-12 days

0

0630

Murray 2108360SM

SPRING, Compression

$5.99

$

In Stock, Qty 12

0

0640

Murray 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 20+

0

0650

Murray 1736360YP

ROD, HOLDDOWN

$12.99

$

Usually ships in 2-12 days

0

0670

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0680

Murray 1733192SM

KNOB, Slot Speed

$8.99

$

Usually ships in 2-12 days

0

0700

Murray 1921319SM

WASHER, 1/4"
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0740

Murray 7091105YP

SCREW, #10-16 x 1/2
(Superseded to 26X245MA)

$4.49

$

In Stock, Qty 10

0

0750

Murray 1960589SM

SCREW, 10-24 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0760

Murray 1933896SM

NUT, Hex Lock 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

0790

Murray 1931338SM

BOLT, Round-Head, 5/16-18 x 1-3/4
(Superseded to 703175)

$3.99

$

Usually ships in 2-12 days

0

0880

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 1960728SM)

$3.99

$

In Stock, only 4 left!

0

0930

Murray 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4, G5
(Superseded to 703101)

$4.49

$

In Stock, only 4 left!

0
