C950-52956-0 (1695748) - Craftsman 30" Snow Thrower, Canada (2009) Discharge Chute Group Parts Diagram

30" Snow Thrower, Canada

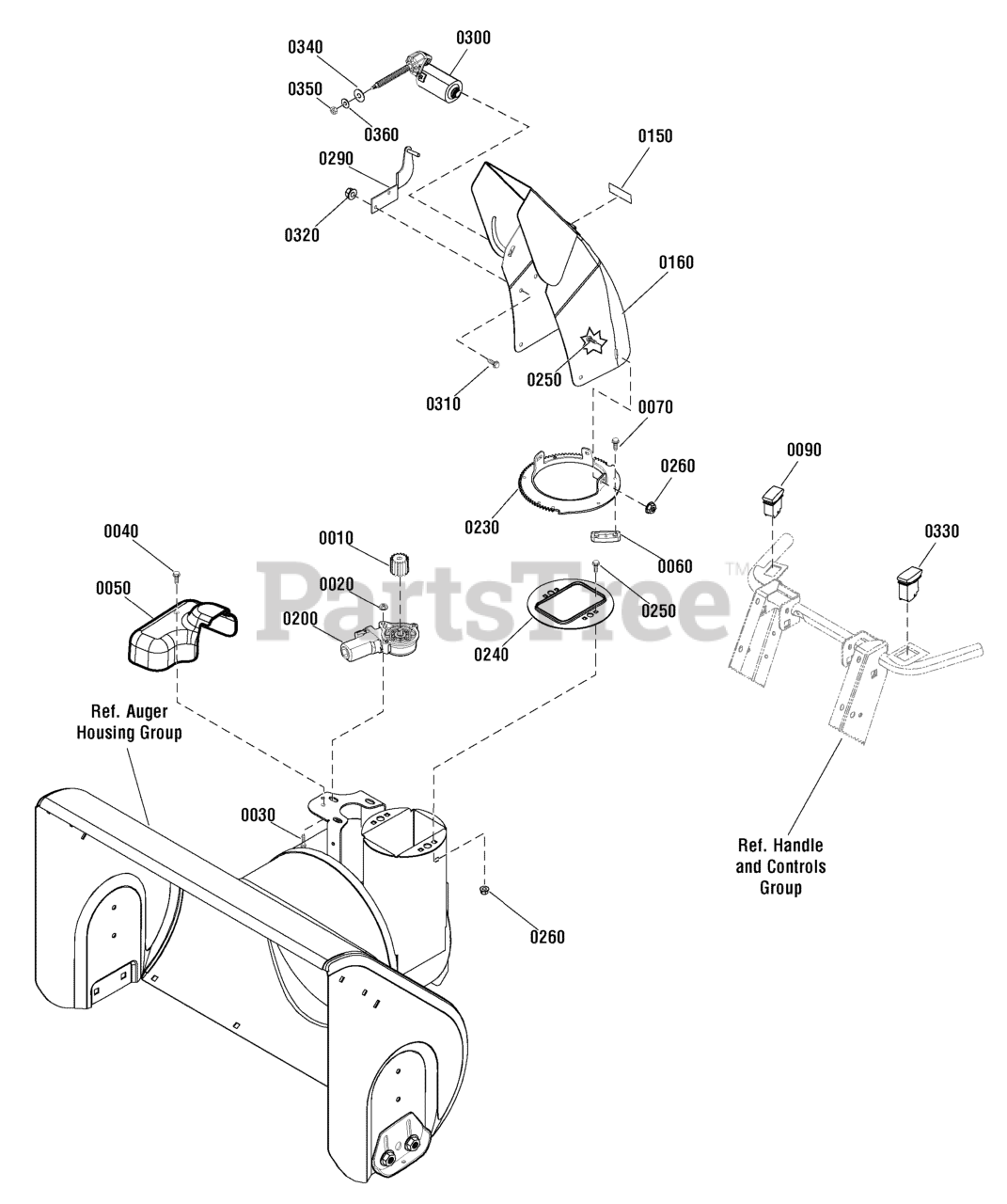

Discharge Chute Group Parts Diagram

  • Title

0010

Murray 1728967SM

PINION

$18.99

$

In Stock, Qty 6

0

0020

Murray 1960745SM

NUT, Hex Flange #10-24
(Superseded to 703917)

$3.99

$

In Stock, Qty 20+

0

0030

Murray 2860604SM

SCREW, Hex Washer Head, Slot, #10C x 1-1/4 G2

$4.99

$

In Stock, Qty 20+

0

0040

Murray 1925592SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 1737455YP

COVER, Electric Chute Rotation
(Superseded to 1752877YP)

$17.99

$

In Stock, only 2 left!

0

0060

Murray 7011938SM

RETAINER, Spout

$4.49

$

Usually ships in 2-12 days

0

0070

Murray 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.99

$

In Stock, Qty 20+

0

0090

Murray 1738243YP

SWITCH, Chute Rotation

$57.99

$

In Stock, only 2 left!

0

0150

Murray 1738340YP

DECAL, Hinge

$12.99

$

Usually ships in 2-12 days

0

0160

Murray 1738045AYP

CHUTE

$138.99

$

Usually ships in 2-12 days

0

0200

Murray 1728965SM

MOTOR, Spout Rotator

$181.99

$

In Stock, only 2 left!

0

0230

Murray 1737465AYP

GEAR

$42.99

$

Usually ships in 2-12 days

0

0240

Murray 1737411YP

ADAPTER, Chute Ring

$20.99

$

Usually ships in 2-12 days

0

0250

Murray 1931317SM

BOLT, Carriage, 1/4-20 x 3/4 G5
(Superseded to 703101)

$4.49

$

In Stock, only 4 left!

0

0260

Murray 2860694SM

NUT, Hex Flange, Esna, 1/4-20
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

0290

Murray 1738267BMYP

BRACKET, Weld Stud

$32.99

$

Usually ships in 2-12 days

0

0300

Murray 1737941YP

MOTOR, Chute Deflector

$144.99

$

In Stock, only 2 left!

0

0310

Murray 1960715SM

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 770135)

$4.49

$

In Stock, Qty 15

0

0320

Murray 1960694SM

NUT, Hex Flange, Esna, 1/4-20
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

0330

Murray 1738242YP

SWITCH, Deflector Control

$57.99

$

Usually ships in 2-12 days

0

0340

Murray 1738244YP

WASHER, Rubber

$4.99

$

In Stock, Qty 9

0

0350

Murray 1738245YP

NUT, Left Handed
(Superseded to 703143)

$3.99

$

In Stock, Qty 13

0

0360

Murray 71067MA

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0
