C950-60106-1 (7800820 A) - Craftsman ZTS7000 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton, Canada (2011) Electrical Group Parts Diagram

ZTS7000 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton, Canada

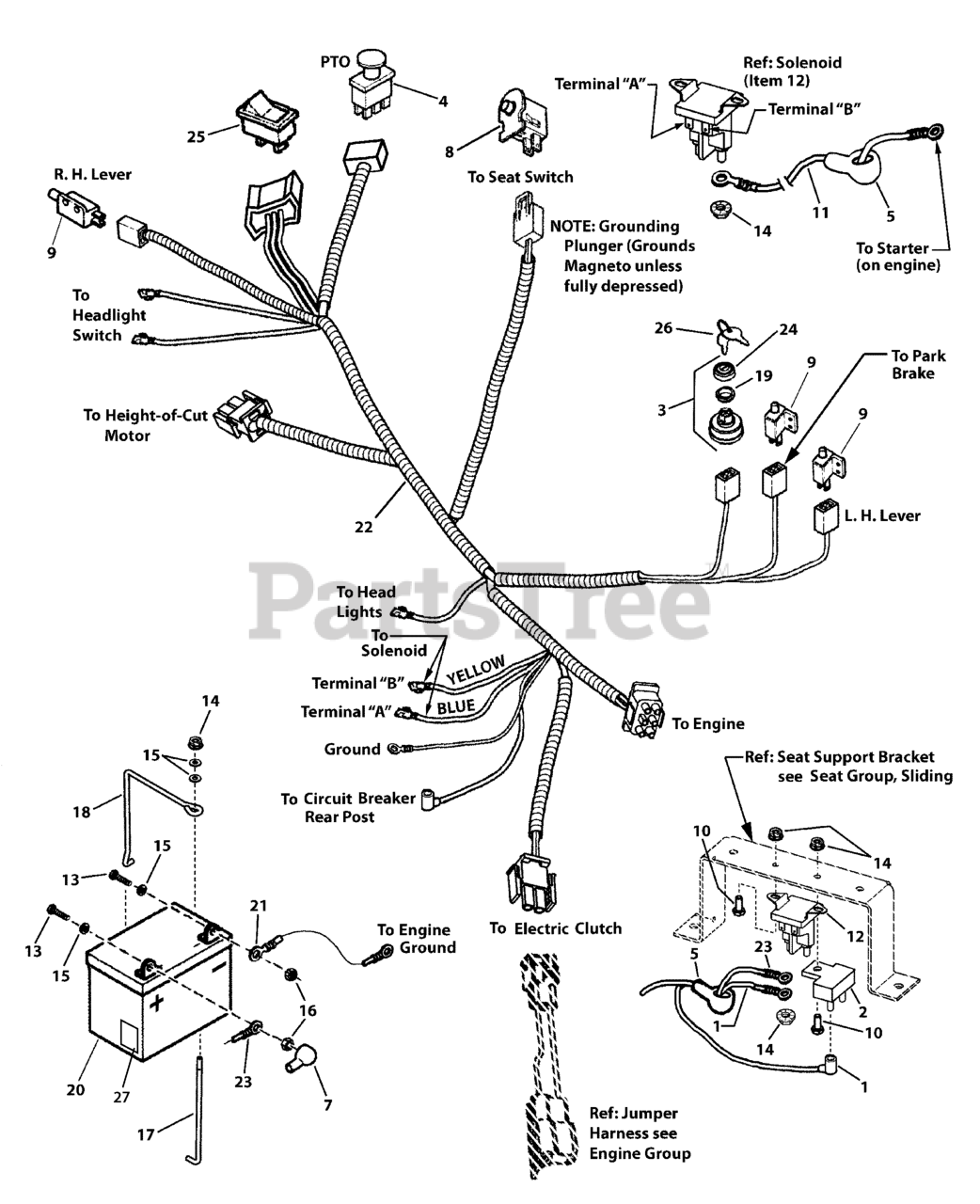

Electrical Group Parts Diagram

  • Title

1

Murray 1665237SM

WIRE, 12 Gage, 8", Red

$12.99

$

In Stock, only 1 left!

0

2

Murray 1665238SM

BREAKER, Circuit 12 Volt 20 AMP w/Tab

$12.99

$

In Stock, Qty 7

0

3

Murray 1686734SM

SWITCH ASSEMBLY, Ignition, 5/8-32 6 Pin Indak

Note: (Includes Ref. Nos. 19, 24, 26)

$34.99

$

In Stock, Qty 20+

0

4

Murray 1722887SM

SWITCH, PTO, Push/Pull

$35.99

$

In Stock, Qty 20+

0

5

Murray 1724588SM

COVER, Terminal, Red Vinyl

$

$

Not available

7

Murray 1677296SM

COVER, Battery Cable, Red

$6.99

$

In Stock, Qty 6

0

8

Murray 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

9

Murray 7023355YP

SWITCH, DPDT (NC/NO)
(Superseded to 1717050SM)

$18.99

$

In Stock, only 4 left!

0

10

Murray 7090072SM

SCREW, 1/4-20 x 5/8" Hex Head Cap, GR 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 12

0

11

Murray 7042956SM

CABLE, Starter, 8 Gage, 14", Black
(Superseded to 7028027YP)

$10.99

$

In Stock, only 2 left!

0

12

Murray 7075622SM

SOLENOID, Super Trombetta - 2 Terminal
(Superseded to 1755382YP)

$29.99

$

In Stock, Qty 11

0

13

Murray 7090072SM

SCREW, 1/4-20 x 5/8" Hex Head Cap, GR 5 or B
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 12

0

14

Murray 7090372SM

NUT, 1/4-20 Hex Nyloc
(Superseded to 703954)

$5.49

$

In Stock, Qty 12

0

15

Murray 7091294SM

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

16

Murray 7091584SM

NUT, 1/4-20 Hex Flange Lock, YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 11

0

17

Murray 7100308SM

HOLD DOWN, Battery

$8.49

$

In Stock, only 2 left!

0

18

Murray 7100309SM

BRACKET, Battery

$10.99

$

Usually ships in 2-12 days

0

19

Murray 7100329YP

NUT, 5/8"-32 E-Start
(Superseded to 703995)

Note: (Included in Ref. No. 3)

$5.99

$

Usually ships in 2-12 days

0

20

Murray 1685215SM

BATTERY, 12 Volt, 230 CCA

$

$

Not available

21

Murray 7100636SM

CABLE, Battery Negative, 8 Gage, 20", Black

$9.49

$

Usually ships in 2-12 days

0

22

Murray 7103412YP

HARNESS, Wiring, ZT

$109.99

$

Usually ships in 2-12 days

0

23

Murray 024X31MA

CABLE, Battery Positive, 8 Gage, 18", Red

$7.99

$

In Stock, only 3 left!

0

24

Murray 091488MA

CAP, Ignition Switch
(Superseded to 847150)

Note: (Included in Ref. No. 3)

$8.99

$

In Stock, Qty 8

0

25

Murray 1734141SM

SWITCH, Rocker Electric Height-Of-Cut

Note: (also shown on 52" Deck Lift Group)

$50.99

$

In Stock, Qty 20+

0

26

Murray 1737836YP

KEYS, Blister Pk (KIDS+MWRS DON'T MIX) English/Spanish

Note: (set of two, one coated)

$22.99

$

In Stock, only 4 left!

0

27

Murray 1734375SM

DECAL, Die Hard

$11.99

$

Usually ships in 2-12 days

0
