C950-60107-0 (7800819) - Craftsman ZTS7000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton, Canada (2011) Seat Group, Sliding Parts Diagram

ZTS7000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton, Canada

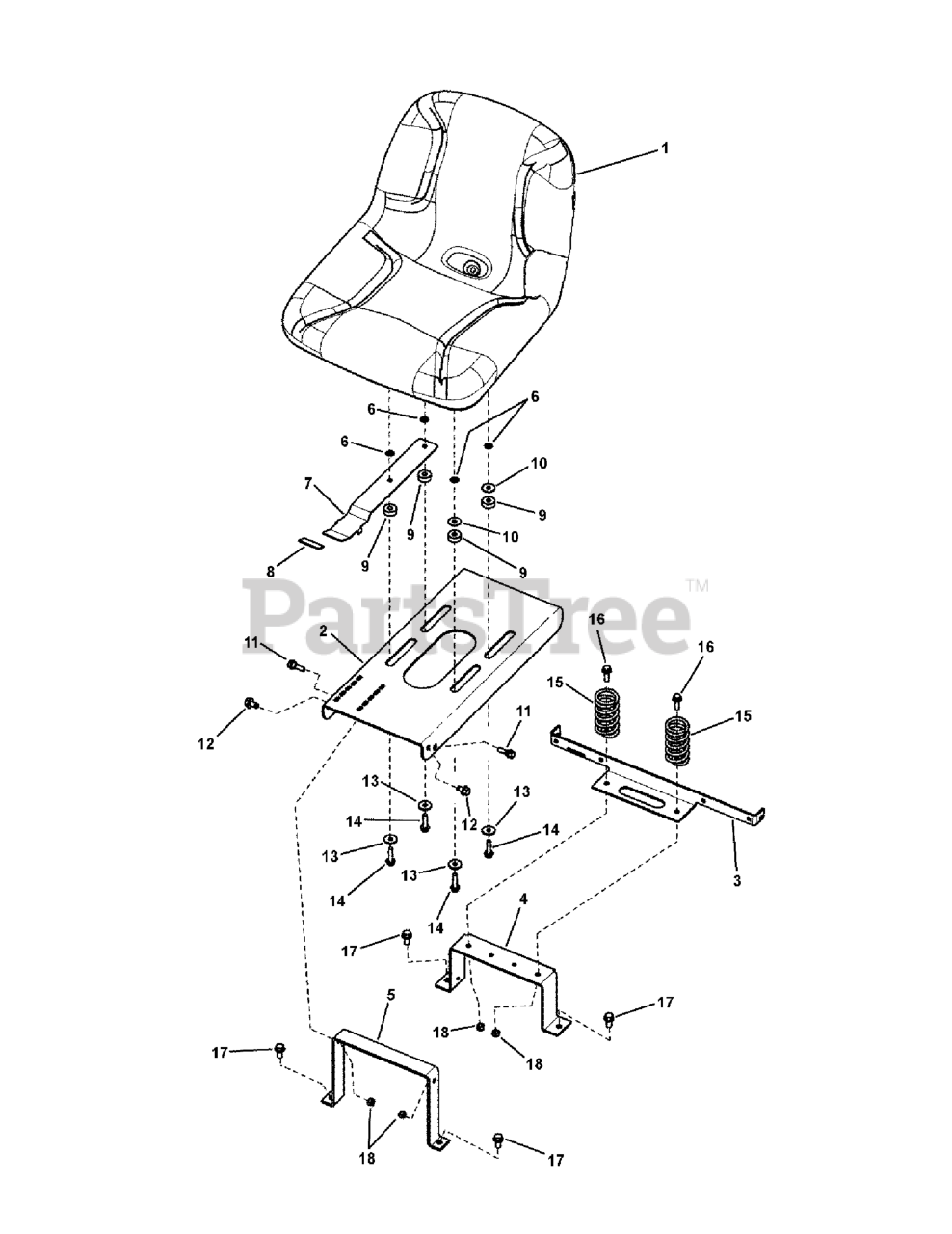

Seat Group, Sliding Parts Diagram

  • Title

1

Murray 7104548YP

SEAT, 15" Back

$420.99

$

Usually ships in 2-12 days

0

2

Murray 7301095BMYP

PLATE, Seat, Adjustable

$54.99

$

Usually ships in 2-12 days

0

3

Murray 7301107BMYP

BRACKET, Support, Seat & Fender

$27.99

$

Usually ships in 2-12 days

0

4

Murray 7043316BMYP

BRACKET, Seat Support

$19.99

$

Usually ships in 2-12 days

0

5

Murray 7301070BMYP

BRACKET, Seat

$20.99

$

Usually ships in 2-12 days

0

6

Murray 7011791SM

RETAINER, 5/16" Bolt, Black
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

7

Murray 7103673BMYP

LATCH, Seat

$19.99

$

Usually ships in 2-12 days

0

8

Murray 885215YP

COVER, Seat Adjustment Lever

$4.99

$

Usually ships in 2-12 days

0

9

Murray 7103920YP

SPACER, Seat, Adjustable

$3.99

$

Usually ships in 2-12 days

0

10

Murray 7011763SM

FENDER WASHER, 5/16"

$4.49

$

In Stock, Qty 9

0

11

Murray 7011078SM

SHOULDER BOLT, 5/16-18 x 1"
(Superseded to 703840)

$5.49

$

In Stock, Qty 11

0

12

Murray 7091198SM

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap

$4.49

$

Usually ships in 2-12 days

0

13

Murray 1919381SM

WASHER, 5/16" Flat (.341 ID x 1.00 OD x .13 Thick) Black
(Superseded to 703298)

$4.49

$

In Stock, Qty 15

0

14

Murray 1930595SM

SCREW, 5/16-18 x 1-1/4" Hex Head Flange Lock

$3.99

$

In Stock, Qty 7

0

15

Murray 7103425YP

SPRING, 3.62 " Compression

$18.99

$

Usually ships in 2-12 days

0

16

Murray 7091591SM

BOLT, 5/16-18 x 1" Hex Flange Lock, GR 5, YZ
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

17

Murray 7090815YP

SCREW, 3/8-16 x 3/4" Hex Washer Self-Tap
(Superseded to 703950)

$5.99

$

In Stock, Qty 7

0

18

Murray 7091298YP

NUT, 5/16-18- Nyloc, YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0
