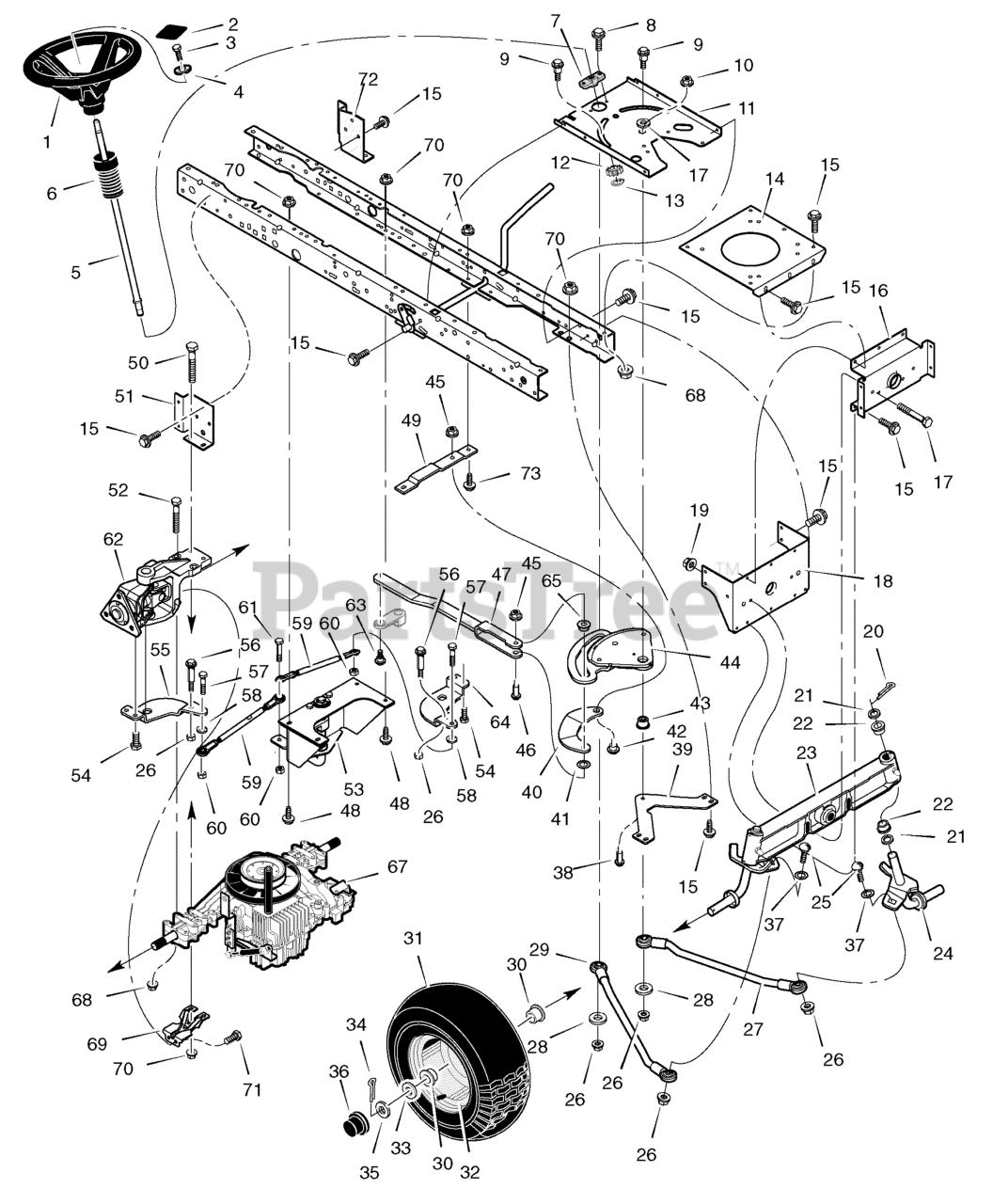

C950-60471-0 - Craftsman 42" Lawn Tractor, Canada (2004) (Sears) Steering Parts Diagram

42" Lawn Tractor, Canada

Steering Parts Diagram

  • Title

1

Murray 95185

Wheel, Steering

$

$

Not available

2

Murray 711326

Cap, Steering Wheel

$7.49

$

Usually ships in 2-12 days

0

3

Murray 0025X3

Screw, Hex
(Superseded to 0025X3MA)

$4.99

$

Usually ships in 2-12 days

0

4

Murray 17X146

Washer
(Superseded to 17X146MA)

$5.49

$

Usually ships in 2-12 days

0

5

Murray 690625

Shaft, Steering

$49.99

$

In Stock, only 1 left!

0

6

Murray 92059

Cover
(Superseded to 92059GS)

$82.99

$

Usually ships in 2-12 days

0

7

Murray 94124

Bearing, Lower Steering

$3.49

$

Usually ships in 2-12 days

0

8

Murray 26X267

Screw
(Superseded to 26X267MA)

$4.99

$

In Stock, Qty 20+

0

9

Murray 009X62

Bolt, Shoulder
(Superseded to 009X62MA)

$4.49

$

Usually ships in 2-12 days

0

10

Murray 15X111

Nut, Flanged Lock

$4.49

$

Usually ships in 2-12 days

0

11

Murray 1001121E701

Plate, Steering

$

$

Not available

12

Murray 1001893

Gear, Pinion
(Superseded to 690183MA)

$

$

Not available

13

Murray 011X25

Ring, Snap
(Superseded to 011X25MA)

$4.49

$

In Stock, Qty 6

0

14

Murray 094006E701

Plate, Engine

$114.99

$

Usually ships in 2-12 days

0

15

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

16

Murray 094007E701

Hanger, Axle

$32.99

$

Usually ships in 2-12 days

0

17

Murray 01X146

Bolt, Hex
(Superseded to 01X146MA)

$3.99

$

Usually ships in 2-12 days

0

18

Murray 1001270E701

Bracket, Rear Hanger

$165.99

$

Usually ships in 2-12 days

0

19

Murray 15X118

Nut, Flanged Lock
(Superseded to 15X118MA)

$4.49

$

Usually ships in 2-12 days

0

20

Murray 030X49

Pin, Cotter
(Superseded to 030X49MA)

$4.49

$

In Stock, Qty 12

0

21

Murray 17X113

Washer

$3.99

$

In Stock, only 2 left!

0

22

Murray 690150

Bearing, Steering
(Superseded to 690150MA)

$8.99

$

In Stock, only 4 left!

0

23

Murray 690232E701

Axle, Front
(Superseded to 690232E701MA)

$161.99

$

In Stock, only 1 left!

0

24

Murray 1001173E701

Spindle Assembly, Left

$271.99

$

In Stock, only 1 left!

0

--

Murray 1001175E701

Spindle Assembly, Right

$

$

Not available

25

Murray 002X96

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

26

Murray 015X84

Nut, Flanged Lock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

27

Murray 1001177E701

Link, Left Drag
(Superseded to 1001177E701MA)

$91.99

$

Usually ships in 2-12 days

0

28

Murray 17X168ZMA

Washer

$6.49

$

Usually ships in 2-12 days

0

29

Murray 1001178E701

Link, Right Drag
(Superseded to 1001178E701MA)

$85.99

$

Usually ships in 2-12 days

0

30

Murray 91334

Bearing, Front Wheel
(Superseded to 91334GS)

$14.99

$

Usually ships in 2-12 days

0

31

Murray 24380

Tire ONLY *
(Superseded to 7072921YP)

$9.49

$

Usually ships in 2-12 days

0

--

Murray 407924

Tube ONLY

$

$

Not available

32

Murray 094583-804

Wheel and Tire Assembly

$

$

Currently unavailable

33

Murray 17X195

Washer
(Superseded to 17X195MA)

$4.99

$

In Stock, Qty 20+

0

34

Murray 030X49

Pin, Cotter
(Superseded to 030X49MA)

$4.49

$

In Stock, Qty 12

0

35

Murray 17X192

Washer
(Superseded to 17X192MA)

$4.99

$

In Stock, Qty 5

0

36

Murray 94618

Hub Cap

$5.99

$

In Stock, Qty 20+

0

37

Murray 017X91

Washer
(Superseded to 017X91MA)

$5.49

$

In Stock, only 2 left!

0

38

Murray 001X75

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

39

Murray 1001939E701

Support, Sector Gear

$67.99

$

Usually ships in 2-12 days

0

40

Murray 1001886E701

Follower, Cam

$48.99

$

Usually ships in 2-12 days

0

41

Murray 17X175

Washer

$3.49

$

Usually ships in 2-12 days

0

42

Murray 009X81

Bolt, Shoulder
(Superseded to 009X81MA)

$8.49

$

Usually ships in 2-12 days

0

43

Murray 1001888

Bearing, Sector Gear
(Superseded to 1001888MA)

$9.49

$

Usually ships in 2-12 days

0

44

Murray 1001889

Sector Gear & Cam Assembly

$109.99

$

Usually ships in 2-12 days

0

45

Murray 015X87

Nut. Flanged Lock

$4.49

$

In Stock, only 1 left!

0

46

Murray 009X80

Bolt, Shoulder
(Superseded to 009X80MA)

$9.49

$

In Stock, only 2 left!

0

47

Murray 1001885E701

Link, Primary Drag

$85.99

$

Usually ships in 2-12 days

0

48

Murray 26X267

Screw
(Superseded to 26X267MA)

$4.99

$

In Stock, Qty 20+

0

49

Murray 1001894E701

Member, Cam Cross

$55.99

$

Usually ships in 2-12 days

0

50

Murray 01X118

Bolt, Hex

$4.99

$

Usually ships in 2-12 days

0

51

Murray 1001891E701

Bracket, Right Transaxle
(Superseded to 1001891E701MA)

$40.99

$

Usually ships in 2-12 days

0

52

Murray 009X79

Bolt, Shoulder
(Superseded to 009X79MA)

$11.99

$

Usually ships in 2-12 days

0

53

Murray 1001950

Pivot Assembly, Rear
(Superseded to 7600165YP)

$622.99

$

Usually ships in 2-12 days

0

54

Murray 0025X6

Screw
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

55

Murray 304120E701

Arm, Right Rear
(Superseded to 728578BMYP)

$36.99

$

Usually ships in 2-12 days

0

56

Murray 009X82

Bolt, Shoulder
(Superseded to 009X82MA)

$8.49

$

Usually ships in 2-12 days

0

57

Murray 001X70

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

58

Murray 018X31

Washer, Split Lock
(Superseded to 018X31MA)

$4.49

$

Usually ships in 2-12 days

0

59

Murray 1001935

Rod Assembly, Tie

$

$

Not available

60

Murray 15X119

Nut, Lock

$3.49

$

Usually ships in 2-12 days

0

61

Murray 01X194

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

62

Murray 1001931

Steering Assembly, Rear
(Superseded to 1001931MA)

$

$

Not available

63

Murray 009X81

Bolt, Shoulder
(Superseded to 009X81MA)

$8.49

$

Usually ships in 2-12 days

0

64

Murray 304121E701

Arm, Left Rear
(Superseded to 728579BMYP)

$36.99

$

Usually ships in 2-12 days

0

65

Murray 1001882

Bushing, Cam
(Superseded to 1001882MA)

$7.99

$

In Stock, only 1 left!

0

67

Transaxle

$

$

Not available

68

Murray 015X88

Nut, Flanged Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

69

Murray 1001944E701

Bracket, Transaxle Support

$23.99

$

Usually ships in 2-12 days

0

71

Murray 26X216

Screw
(Superseded to 26X216MA)

$6.99

$

In Stock, Qty 5

0

72

Murray 1001890E701

Bracket, Left Transaxle
(Superseded to 1001890E701MA)

$40.99

$

Usually ships in 2-12 days

0

73

Murray 025X22

Screw
(Superseded to 025X22MA)

$3.99

$

Usually ships in 2-12 days

0

70

Murray 015X84

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
