C950-60472-0 - Craftsman 46" Lawn Tractor, Canada (2004) (Sears) Electrical System Parts Diagram

46" Lawn Tractor, Canada

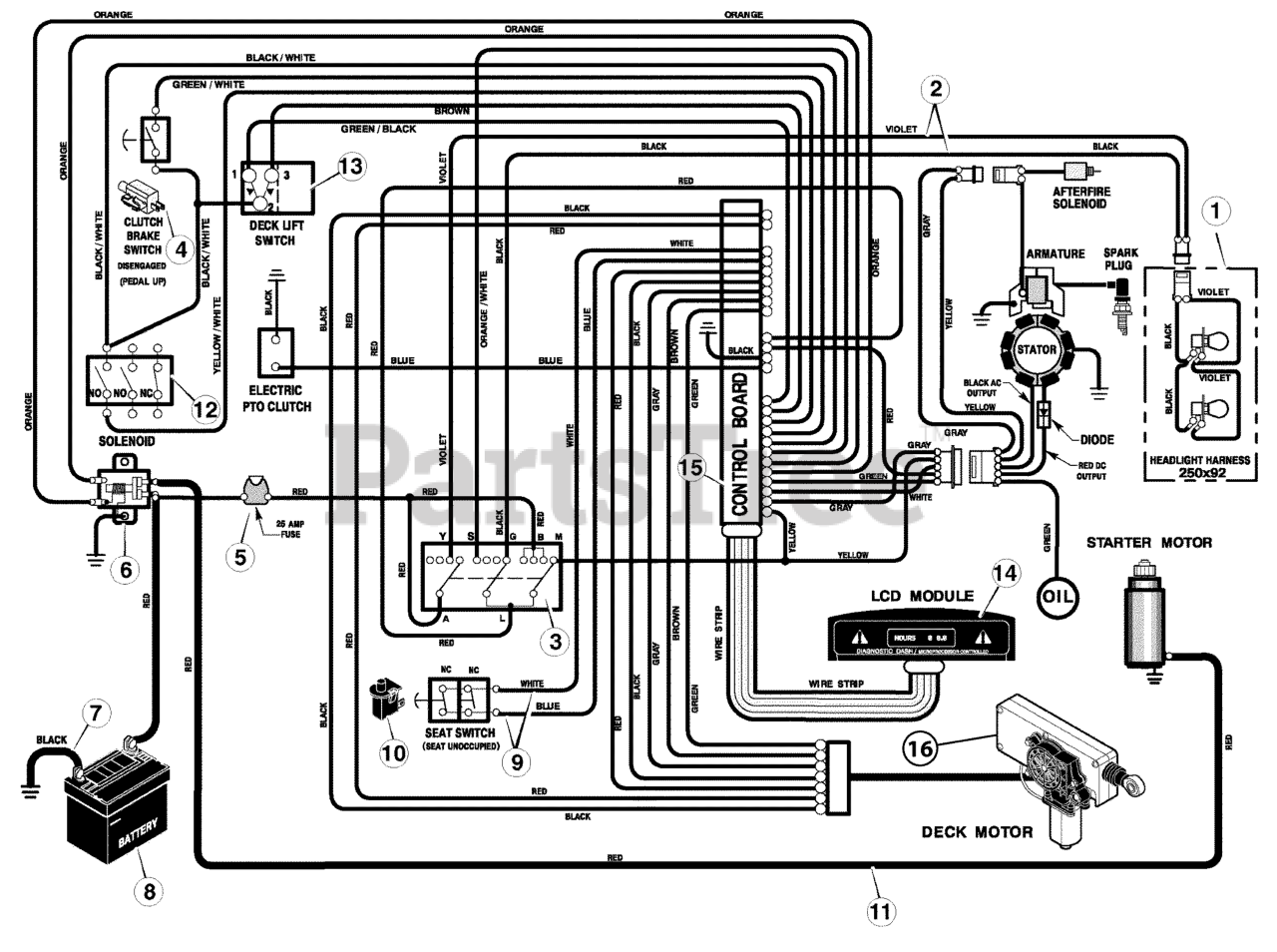

Electrical System Parts Diagram

  • Title

1

Murray 250X92

Harness, Light Wire

$16.99

$

In Stock, only 1 left!

0

1

Murray 1001716

Socket, Light

$

$

Not available

1

Murray 90084

Bulb, Light
(Superseded to 7090639YP)

$3.49

$

In Stock, only 1 left!

0

2

Murray 250X134

Harness, Chassis Wire

$45.99

$

Usually ships in 2-12 days

0

3

Murray 92556

Switch, Ignition

$28.99

$

Usually ships in 2-12 days

0

3

Murray 20729

Key, Ignition

$5.49

$

In Stock, only 1 left!

0

3

Murray 91489

Nut, Hex
(Superseded to 91489GS)

$1.99

$

Usually ships in 2-12 days

0

3

Murray 91488

Cap, Ignition
(Superseded to 794903)

$5.49

$

In Stock, only 1 left!

0

4

Murray 94136

Switch, Limit

$12.99

$

In Stock, Qty 5

0

5

Murray 302031

Fuse 25 AMP
(Superseded to 302031MA)

$6.49

$

Usually ships in 2-12 days

0

5

Murray 407078

Holder, Fuse

$20.99

$

Usually ships in 2-12 days

0

6

Murray 1001904

Solenoid

$17.99

$

Usually ships in 2-12 days

0

6

Murray 26X229

Screw, Mounting
(Superseded to 26X229MA)

$4.49

$

In Stock, only 1 left!

0

6

Murray 15X116

Locknut

$4.49

$

In Stock, Qty 20+

0

7

Murray 024X32

Cable, Battery Ground
(Superseded to 024X32MA)

$8.49

$

Usually ships in 2-12 days

0

7

Murray 26X229

Screw, Ground Cable
(Superseded to 26X229MA)

$4.49

$

In Stock, only 1 left!

0

8

Murray 21075

Battery

$

$

Currently unavailable

8

Murray 002X82

Bolt, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

8

Murray 014X79

Wingnut
(Superseded to 014X79MA)

$4.99

$

Usually ships in 2-12 days

0

9

Murray 250X135

Harness, Seat Switch Wire

$77.99

$

Usually ships in 2-12 days

0

10

Murray 94159

Switch, Seat Sensor

$12.99

$

Usually ships in 2-12 days

0

11

Murray 024X31

Cable
(Superseded to 024X31MA)

$7.49

$

Usually ships in 2-12 days

0

12

Murray 94927

Switch, Electric PTO
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

13

Murray 1001685

Switch, Lifter

$47.99

$

Usually ships in 2-12 days

0

14

Murray 1001902

LCD Module

$111.99

$

Usually ships in 2-12 days

0

15

Murray 1001903

Contol Board Module

$

$

Not available

15

Murray 1001908

Key, English Electrical

$9.49

$

Usually ships in 2-12 days

0

15

Murray 1001909

Key, French Electrical

$58.99

$

Usually ships in 2-12 days

0

16

Murray 1001901

Lift Assembly, Deck

$296.99

$

Usually ships in 2-12 days
