C950-60473-0 - Craftsman 46" Lawn Tractor, Canada (2004) (Sears) Engine Mount Parts Diagram

46" Lawn Tractor, Canada

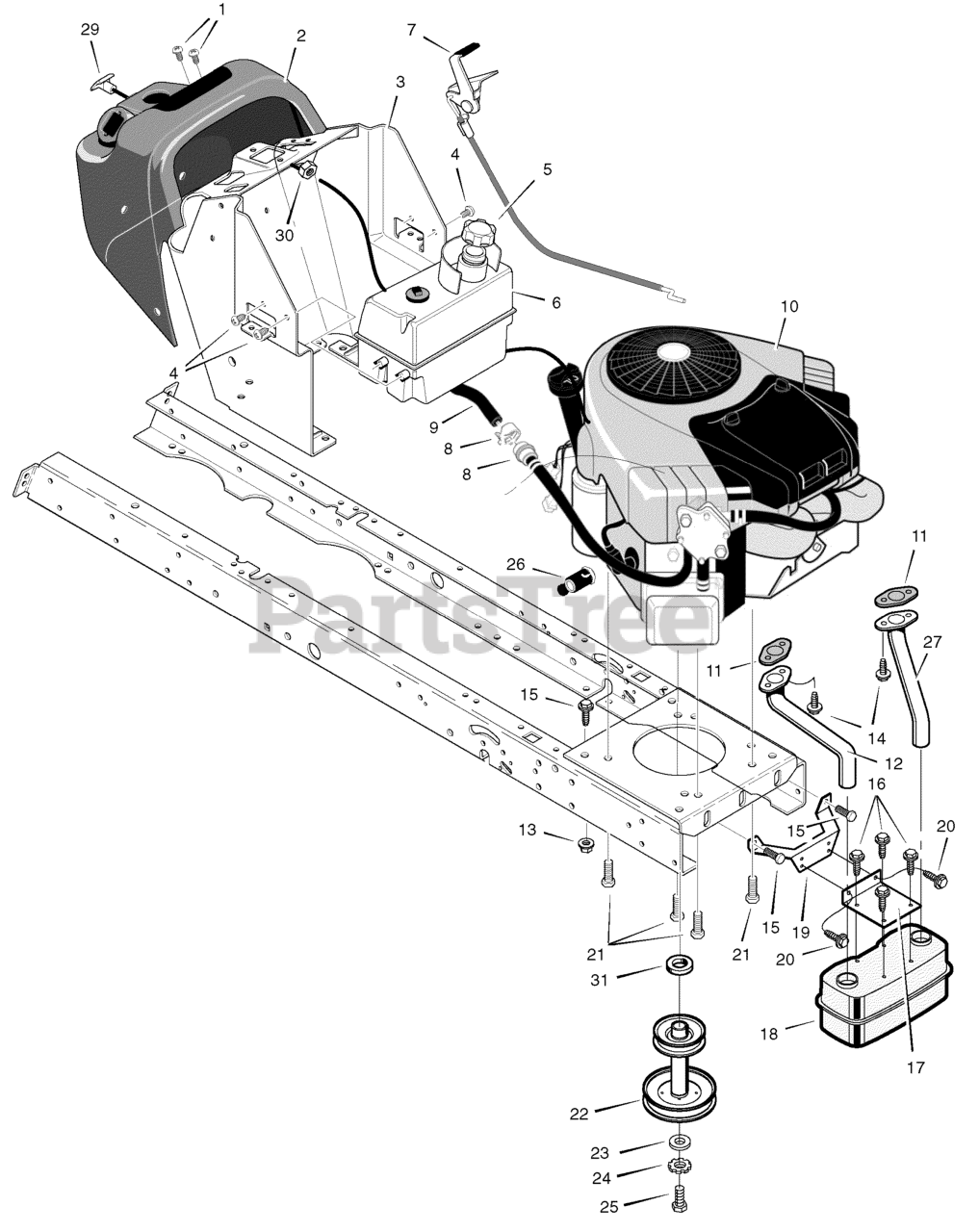

Engine Mount Parts Diagram

  • Title
1

Murray 26X201

Screw
(Superseded to 26X201MA)

$4.49

$

In Stock, only 2 left!

0

$104.99

$

Usually ships in 2-12 days

0

3

Murray 95173

Console
(Superseded to 690992)

$4.99

$

In Stock, only 1 left!

0

4

$4.49

$

Usually ships in 2-12 days

0

5

Murray 92317

Cap, Fuel
(Superseded to 691077)

Note: (Part included when ordering Ref. No. 6)

$3.49

$

Usually ships in 2-12 days

0

6

Murray 690289

Tank, Fuel

$6.99

$

Usually ships in 2-12 days

0

7

Murray 1001503

Control, Throttle

$27.99

$

Usually ships in 2-12 days

0

8

Murray 95197

Clamp, Hose

Note: (Part included when ordering Ref. No. 6)

$

$

Not available

9

Murray 7601033

Line, Fuel (Must cut to length)

Note: (Included with Ref. No. 6)

$22.99

$

In Stock, only 1 left!

0

10

Engine

$

$

Not available

11

Murray 711851

Gasket, Exhaust

$4.49

$

Usually ships in 2-12 days

0

12

Murray 690541

Tube, Right Exhaust

$471.99

$

Usually ships in 2-12 days

0

13

Murray 015X88

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

14

Murray 06X103

Bolt
(Superseded to 06X103MA)

$6.49

$

In Stock, only 2 left!

0

15

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

16

Murray 26X229

Screw
(Superseded to 26X229MA)

$4.49

$

In Stock, only 1 left!

0

17

Murray 690538E701MA

Bracket, Muffler

$11.99

$

Usually ships in 2-12 days

0

18

Murray 93259

Muffler

$3.99

$

Usually ships in 2-12 days

0

19

Murray 690537E701MA

Bracket, Muffler Mount

$76.99

$

Usually ships in 2-12 days

0

20

Murray 26X263

Screw
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

21

Murray 0025X7

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

22

Murray 690507

Pulley, Stack

$7.49

$

Usually ships in 2-12 days

0

23

Murray 17X170

Washer
(Superseded to 17X170MA)

$

$

Not available

24

Murray 019X35

Washer
(Superseded to 019X35MA)

$4.99

$

In Stock, only 2 left!

0

25

Murray 01X140

Bolt
(Superseded to 01X140MA)

$5.49

$

In Stock, only 1 left!

0

26

Murray 325547

Drain, Oil

$

$

Not available

--

Murray 327422

Cap, Oil Drain

$

$

Not available

27

Murray 690542

Tube, Left Exhaust

$19.99

$

Usually ships in 2-12 days

0

29

$3.99

$

In Stock, only 1 left!

0

30

Murray 015X68

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

31

Murray 93077

Spacer
(Superseded to 93100)

$4.99

$

Usually ships in 2-12 days

0
