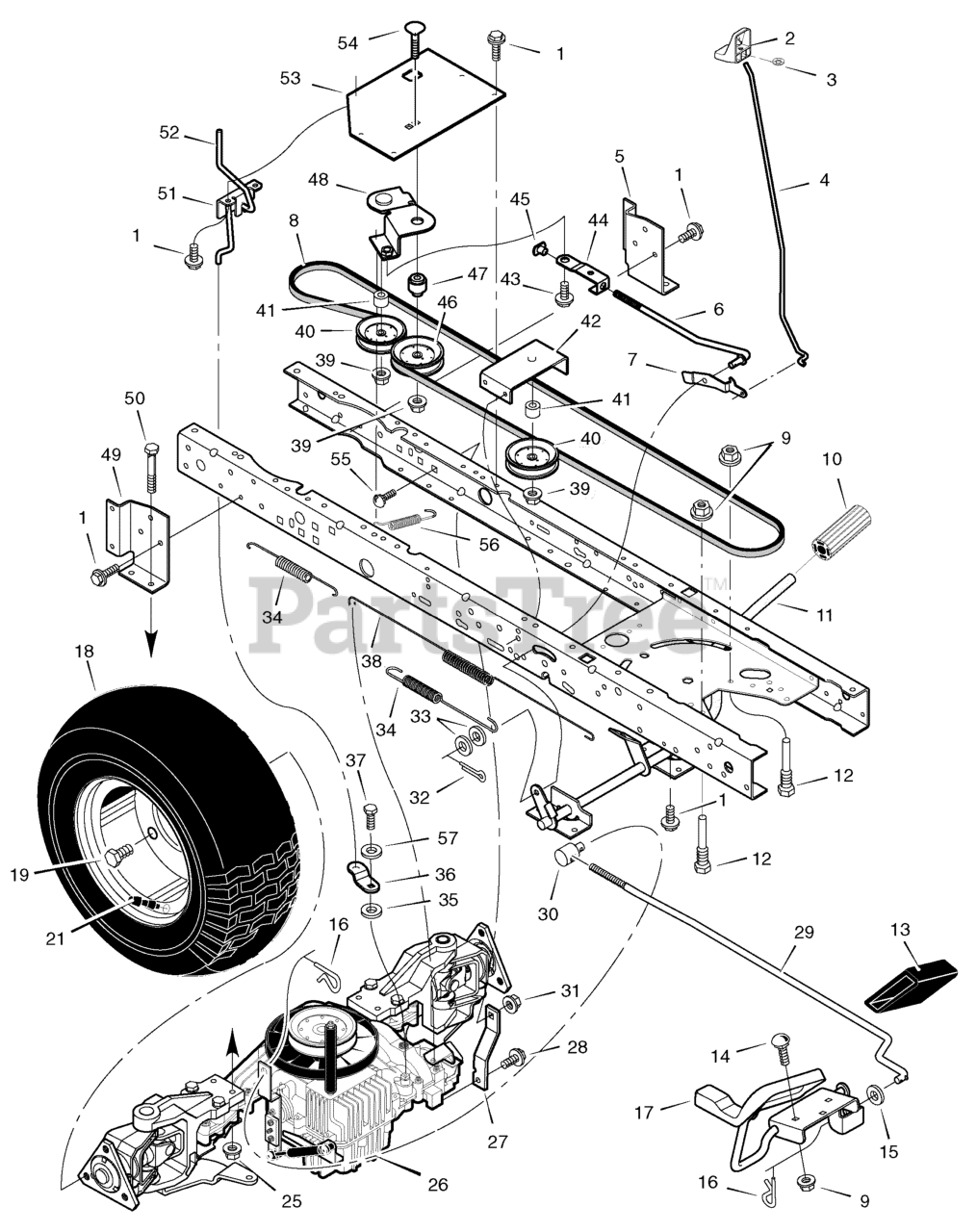

C950-60473-0 - Craftsman 46" Lawn Tractor, Canada (2004) (Sears) Motion Drive Parts Diagram

46" Lawn Tractor, Canada

Motion Drive Parts Diagram

  • Title

1

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

2

Murray 95315

Knob, Parking Brake

$9.49

$

Usually ships in 2-12 days

0

3

Murray 028X49

Nut, Push

$3.99

$

In Stock, Qty 13

0

4

Murray 1001217 Z

Rod, Parking Brake

$

$

Currently unavailable

5

Murray 1001890E701

Bracket, Left Transaxle
(Superseded to 1001890E701MA)

$40.99

$

Usually ships in 2-12 days

0

6

Murray 1001013 Z

Rod, Clutch

$

$

Currently unavailable

7

Murray 094045 Z

Latch, Parking Brake

$

$

Currently unavailable

8

Murray 37X106

V-Belt, Drive

$43.99

$

In Stock, only 1 left!

0

9

Murray 015X79

Nut, Flange

$5.49

$

In Stock, Qty 20+

0

10

Murray 21544

Pedal, Brake/Clutch

$9.99

$

In Stock, only 1 left!

0

11

Murray 1001011E701

Assembly, Brake Pedal

$

$

Not available

12

Murray 94384

Screw, Guide

$

$

Not available

13

Murray 94798

Pad, Pedal

$

$

Not available

14

Murray 002X53

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

15

Murray 017X57

Washer

$4.49

$

Usually ships in 2-12 days

0

16

Murray 0031X4

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

17

Murray 1001936E701

Pedal Assembly, Hydro

$96.99

$

Usually ships in 2-12 days

0

18

Murray 1001942-804

Wheel & Tire Assembly

$

$

Currently unavailable

--

Murray 407926

Tire ONLY *

$179.99

$

Usually ships in 2-12 days

0

--

Murray 407049

Tube ONLY

$68.99

$

Usually ships in 2-12 days

0

19

Murray 181683

Screw

$6.99

$

Usually ships in 2-12 days

0

21

Murray 24373

Stem, Valve

$

$

Not available

25

Murray 015X88

Nut, Centerlock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

26

Transaxle

$

$

Not available

27

Murray 1001085E701

Strap, Torque

$10.99

$

Usually ships in 2-12 days

0

28

Murray 26X216

Screw
(Superseded to 26X216MA)

$6.99

$

In Stock, Qty 5

0

29

Murray 1001929 Z

Rod, Control

$

$

Currently unavailable

30

Murray 092132ZMA

NUT, Adjusting

$14.99

$

Usually ships in 2-12 days

0

31

Murray 015X84

Nut, Centerlock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

32

Murray 030X20

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

33

Murray 017X48

Washer
(Superseded to 017X48MA)

$8.49

$

Usually ships in 2-12 days

0

34

Murray 165X92

Spring, Extension
(Superseded to 165X92MA)

$5.49

$

In Stock, only 3 left!

0

35

Murray 17X148

Washer
(Superseded to 17X148MA)

$3.99

$

Usually ships in 2-12 days

0

36

Murray 1001086ZMA

ARM, Disconnect

$34.99

$

Usually ships in 2-12 days

0

37

Murray 06X105

Capscrew
(Superseded to 06X105MA)

$3.99

$

In Stock, only 1 left!

0

38

Murray 165X150

Spring, Brake
(Superseded to 165X150MA)

$29.99

$

In Stock, only 1 left!

0

39

Murray 015X98

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

40

Murray 690409

Pulley, Idler

$19.99

$

In Stock, only 3 left!

0

41

Murray 690369

Spacer

$5.99

$

Usually ships in 2-12 days

0

42

Murray 1001097E701

Bracket Assembly, Idler

$22.99

$

Usually ships in 2-12 days

0

43

Murray 009X49

Bolt, Shoulder

$5.49

$

In Stock, only 1 left!

0

44

Murray 1001007 Z

Link, Clutch

$

$

Currently unavailable

45

Murray 1001014

Nut, Tee
(Superseded to 1001014MA)

$4.99

$

Usually ships in 2-12 days

0

46

Murray 690410

Pulley, Idler

$15.99

$

Usually ships in 2-12 days

0

47

Murray 1001012

Bushing, Pivot
(Superseded to 1001012MA)

$9.49

$

Usually ships in 2-12 days

0

48

Murray 1001018 Z

Arm Assembly, Idler

$

$

Currently unavailable

49

Murray 1001891E701

Bracket, Right Transaxle
(Superseded to 1001891E701MA)

$40.99

$

Usually ships in 2-12 days

0

50

Murray 01X118

Screw

$4.99

$

Usually ships in 2-12 days

0

51

Murray 1001214 Z

Bracket, Disconnect

$

$

Currently unavailable

52

Murray 1001215ZMA

Rod, Disconnect

$16.99

$

Usually ships in 2-12 days

0

53

Murray 1001108E701

Bracket, Idler Pivot
(Superseded to 726355BMYP)

$42.99

$

Usually ships in 2-12 days

0

54

Murray 002X92

Bolt, Carriage
(Superseded to 002X92MA)

$4.99

$

In Stock, only 4 left!

0

55

Murray 002X78

Bolt, Carriage
(Superseded to 002X78MA)

$3.49

$

Usually ships in 2-12 days

0

56

Murray 165X155

Spring, Clutch
(Superseded to 165X155MA)

$6.49

$

In Stock, only 2 left!

0

57

Murray 017X38

Washer
(Superseded to 017X38MA)

$3.99

$

Usually ships in 2-12 days

0
