CA 328 (31AH57K8897) - Columbia 28" Snow Thrower (2014) Engine Drive Parts Diagram

28" Snow Thrower

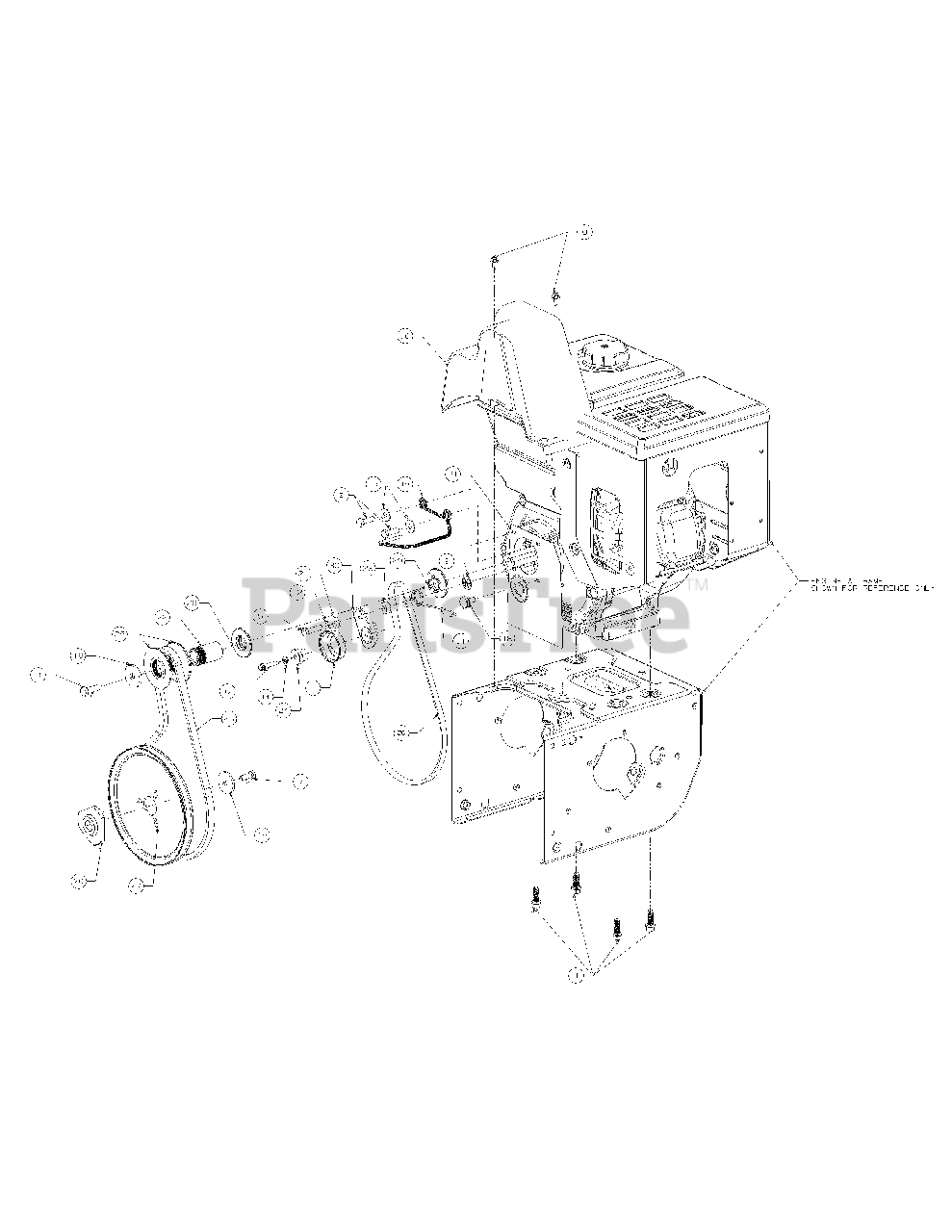

Engine Drive Parts Diagram

  • Title

1

MTD 684-04169

Pulley Asm:Idler

$34.99

$

In Stock, only 1 left!

0

2

710-0117a

Hhcs-5/16-24 X 1.0

$

$

Not available

3

MTD 710-0191

Screw 3/8-24X1.25

$4.99

$

In Stock, Qty 8

0

4

710-0654a

Screw-Hex

$

$

Not available

5

MTD 710-0672

Screw-Hex 5/16-24

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0809

Screw-Hex 1/4-20 X

$6.99

$

In Stock, Qty 20+

0

7

710-1245b

Screw-Hex Cap 5/1

$

$

Not available

8

MTD 710-1652

Screw Hex.Wash.Hd

$4.49

$

In Stock, Qty 20+

0

9

MTD 926-04012

Nut-Push On
(Superseded to 726-04012)

$

$

Not available

10

MTD 731-06401

Cover-Belt 4 Way
(Superseded to 753-09065)

$27.99

$

Usually ships in 3-6 days

0

11

732-04308a

Spring-Torsion

$

$

Not available

12

MTD 936-0119

Washer-Lock 5/16

$4.99

$

In Stock, Qty 20+

0

13

MTD 936-0159

Washer-Fl
(Superseded to 736-0159)

$

$

Not available

14

MTD 936-0329

Washer-Lock

$4.49

$

In Stock, Qty 11

0

15

MTD 736-0505

Washer-Fl

$6.49

$

In Stock, Qty 5

0

16

736-3082a

Washer-Flat .45 X

$

$

Not available

17

MTD n/a

Grease-

Note: (purchase locally)

$

$

Currently unavailable

18

MTD 738-04439

Screw-Shoulder

$3.99

$

In Stock, Qty 7

0

19

MTD 747-06336

Guide-Belt
(Superseded to 747-06336A)

$

$

Not available

20

748-04053a

Pulley-Adapter .75

$

$

Not available

21

748-04112b

Spacer-Shoulder

$

$

Not available

22

MTD 750-04303

Spacer-Pulley

$17.99

$

In Stock, only 1 left!

0

23

750-04477a

Spacer-Idler Brkt

$

$

Not available

24

MTD 750-04571

Spacer:Shoulder

$6.99

$

In Stock, Qty 6

0

25

MTD 954-04195A

Belt-.500 X 37.00 Lg

$34.99

$

In Stock, Qty 20+

0

26

MTD 954-04201A

Belt-V Type 3/8 X 35.68"

$34.99

$

In Stock, Qty 20+

0

27

MTD 756-04109

Pulley-Auger 8.1 O

$54.99

$

In Stock, only 3 left!

0

28

MTD 756-04113

Pulley-Half 4L V
(Superseded to 756-06563)

$3.99

$

Usually ships in 3-6 days

0

29

MTD 756-04252

Pulley Half-3/8 V

$6.49

$

In Stock, only 3 left!

0

30

790-00208d

Bracket-Idler Drive

$

$

Not available

31

MTD 790-00332-0637

Plate-Cove
(Superseded to 790-00332A)

$6.49

$

Usually ships in 3-6 days

0
