CA-631185 - Tecumseh Carburetor Carburetor Parts Diagram

Carburetor

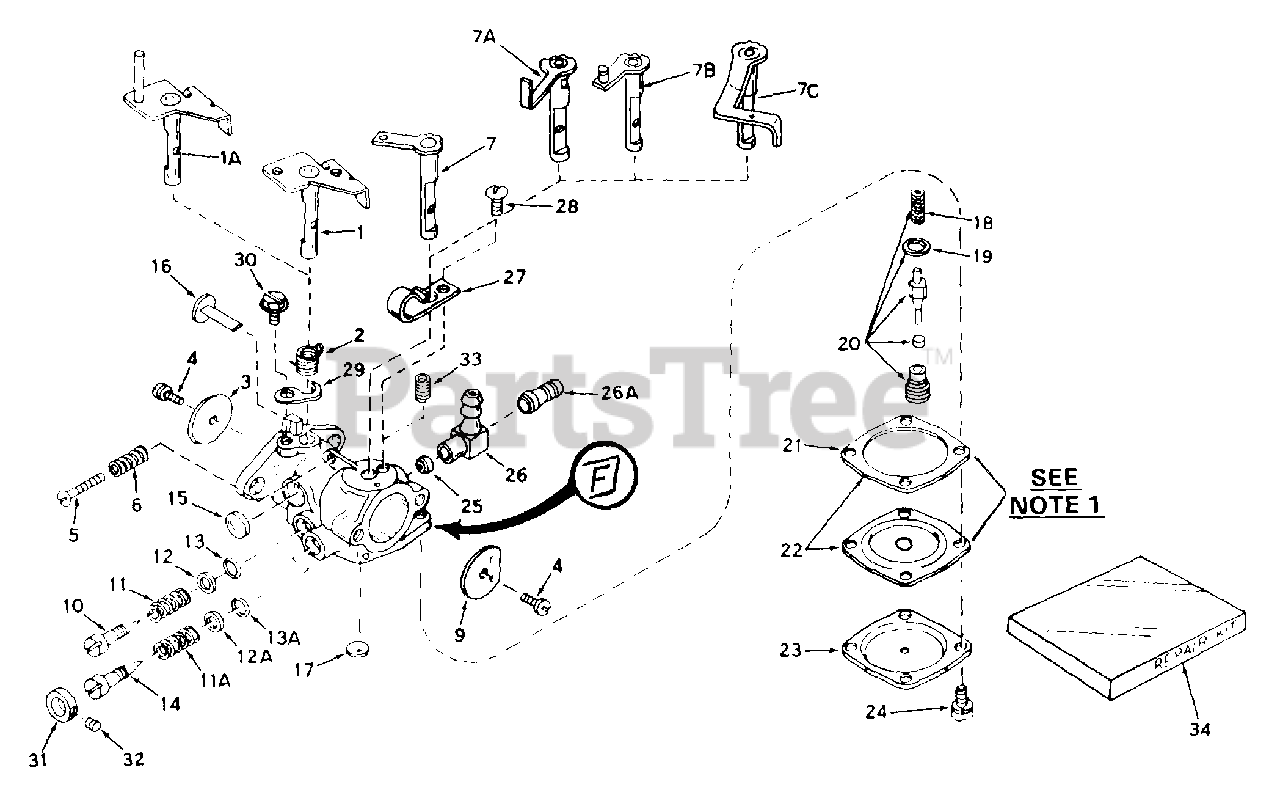

Carburetor Parts Diagram

  • Title
1

Tecumseh 631187

"Shaft & Lever Assy., Throttle

$

$

Currently unavailable

2

Tecumseh 631066

Spring, Throttle return

$0.99

$

In Stock, only 1 left!

0

3

Tecumseh 631036

Shutter, Throttle

$1.99

$

In Stock, Qty 6

0

4

Tecumseh 650506

Screw, Throttle & Choke shutter

$1.49

$

In Stock, Qty 17

0

5

Tecumseh 650417

Screw, Idle regulating
(Superseded to 651025)

$1.99

$

In Stock, Qty 5

0

6

Tecumseh 630766

Spring, Idle speed screw

$1.99

$

In Stock, Qty 12

0

7B

Tecumseh 631130

Shaft & Lever Assy., Choke

$

$

Currently unavailable

9

Tecumseh 630736

Shutter, Choke

$3.49

$

Usually ships in 3-12 days

0

10

Tecumseh 631562

Screw, Idle adj.

$5.49

$

In Stock, Qty 7

0

11

Tecumseh 630738

Spring, Idle adj. screw

$1.99

$

In Stock, Qty 5

0

11A

Tecumseh 631192

Spring, Main adj. screw

$

$

Currently unavailable

12A

Tecumseh 631191

Washer, Main adj. screw

$1.99

$

In Stock, only 1 left!

0

12

Tecumseh 630739

Washer, Idle adj. screw

$1.99

$

In Stock, Qty 20+

0

13

Tecumseh 630740

"O" Ring, Idle adj. screw

$2.49

$

In Stock, Qty 20+

0

13A

Tecumseh 631190

"O" Ring, Main adj. screw

$

$

Currently unavailable

14

Tecumseh 631189

Screw, Main adj. (.0225 dia. hole)

$2.99

$

Usually ships in 3-12 days

0

15

Tecumseh 630748

Plug, Welch

$1.99

$

In Stock, Qty 15

0

17

Tecumseh 630746

Plug, Welch
(Superseded to 632554)

$1.99

$

In Stock, only 3 left!

0

18

Tecumseh 631049

Spring, Valve

$1.99

$

Usually ships in 3-12 days

0

19

Tecumseh 630742

Gasket, Valve seat

$1.99

$

In Stock, only 1 left!

0

20

Tecumseh 630932A

Inlet Needle, Seat, Gasket & Spring A ssy.

$5.49

$

In Stock, Qty 20+

0

21

Tecumseh 630750

Gasket, Diaphragm
(Superseded to 630750A)

$4.49

$

In Stock, Qty 6

0

22

Tecumseh 630978

Diaphragm Assy.

$5.99

$

In Stock, only 4 left!

0

23

Tecumseh 630751

Cover, Diaphragm

$12.99

$

Usually ships in 3-12 days

0

24

Tecumseh 650545

Screw, Cover

$1.99

$

In Stock, only 1 left!

0

26A

Tecumseh 631803

Fitting, Fuel inlet
(Superseded to 632164)

$3.99

$

In Stock, only 1 left!

0

27

Tecumseh 631048

Spring, Detent

$

$

Currently unavailable

28

Tecumseh 650569

Screw, Detent spring

$1.49

$

Usually ships in 3-12 days

0

29

Tecumseh 630955

Retainer, Throttle shaft

$

$

Not available

30

Tecumseh 650545

Screw, Retainer

$1.99

$

In Stock, only 1 left!

0

34

Tecumseh 631893

Repair Kit
(Superseded to 631893A)

$21.99

$

In Stock, only 3 left!

0
