CA-631723 - Tecumseh Carburetor Carburetor Parts Diagram

Carburetor

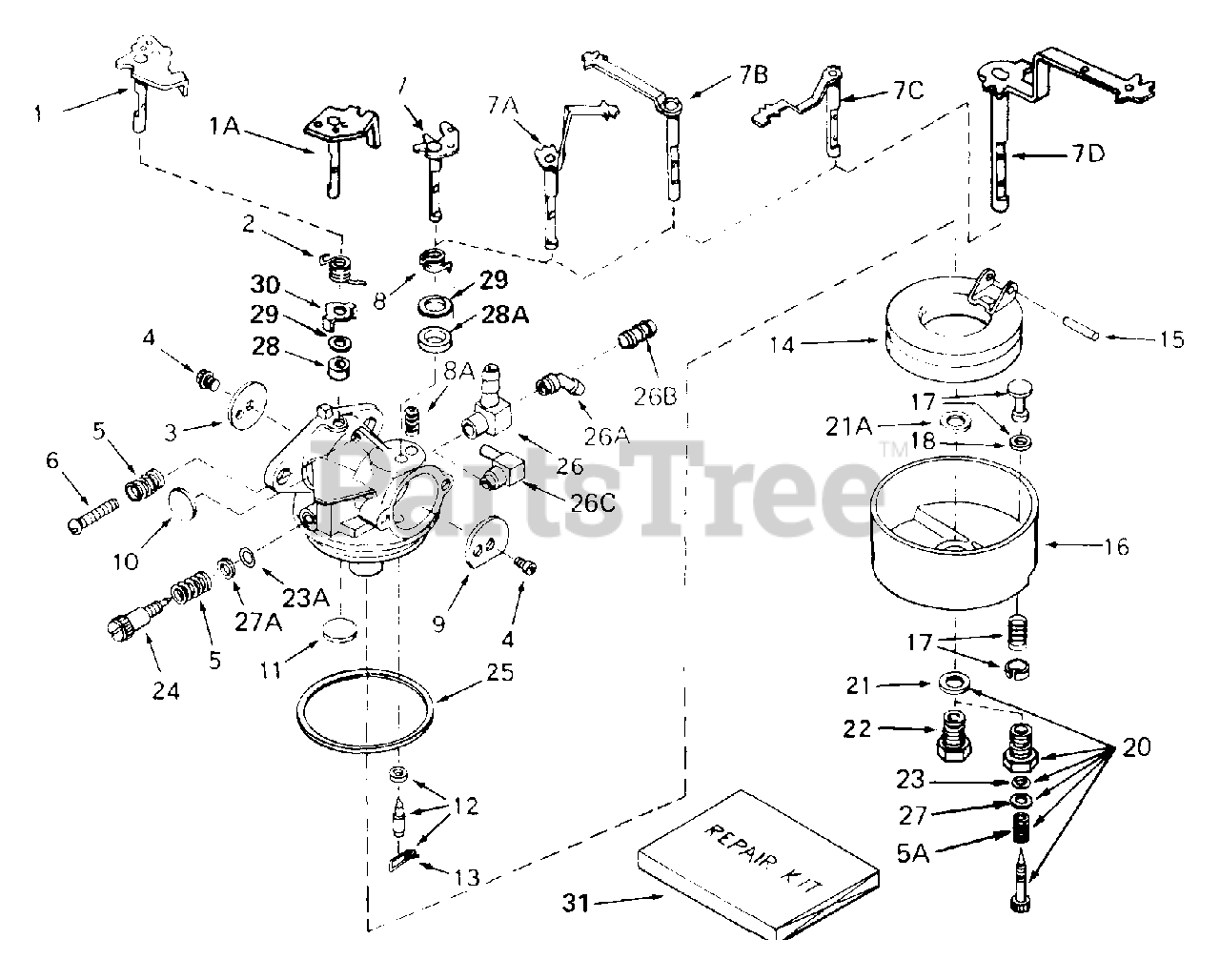

Carburetor Parts Diagram

  • Title

1

Tecumseh 31834

"Shaft & Lever Assy., Throttle

$9.49

$

In Stock, only 1 left!

0

2

Tecumseh 631279A

Spring, Throttle return
(Superseded to 632016)

$1.99

$

In Stock, Qty 7

0

3

Tecumseh 631036

Shutter, Throttle

$1.99

$

In Stock, only 1 left!

0

4

Tecumseh 650506

Screw, Throttle & Choke shutter

$1.49

$

In Stock, Qty 17

0

5

Tecumseh 630766

Spring, Regulating screw

$1.99

$

In Stock, only 4 left!

0

5A

Tecumseh 630738

Spring, Main adj. screw

$1.99

$

In Stock, Qty 12

0

6

Tecumseh 650417

Screw, Regulating screw
(Superseded to 651025)

$1.99

$

In Stock, Qty 5

0

7C

Tecumseh 31868

Shaft & Lever, Choke

$11.99

$

Usually ships in 3-12 days

0

8A

Tecumseh 630735

Spring, Choke positioning

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 31837

Shutter, Choke

$1.99

$

In Stock, only 1 left!

0

10

Tecumseh 630748

Plug, Welch

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 631027

Plug, Welch

$1.99

$

In Stock, only 3 left!

0

12

Tecumseh 631021

Inlet needle, Seat & Clip
(Superseded to 631021B)

$6.99

$

In Stock, Qty 20+

0

13

Tecumseh 631022

Clip, Inlet needle

$1.99

$

In Stock, Qty 7

0

14

Tecumseh 632019

Float, Carburetor
(Superseded to 632019A)

$7.49

$

In Stock, only 4 left!

0

15

Tecumseh 631024

Shaft, Float

$1.99

$

In Stock, Qty 17

0

16

Tecumseh 631951

Bowl & Drain Assy., Float

$17.99

$

In Stock, only 1 left!

0

17

Tecumseh 27136A

Plunger Assy., Drain

$7.49

$

In Stock, only 1 left!

0

18

Tecumseh 27554

Gasket, Drain plunger

$1.49

$

In Stock, Qty 20+

0

20

Tecumseh 631026

Adj. Screw Assy., Main

$13.99

$

Usually ships in 3-12 days

0

21

Tecumseh 27110

Gasket, Bowl-to-body
(Superseded to 27110A)

$2.49

$

In Stock, Qty 20+

0

23

Tecumseh 630740

"O" Ring, Adj. screw

$2.49

$

In Stock, Qty 13

0

23A

Tecumseh 630740

"O" Ring, Adj. screw

$2.49

$

In Stock, Qty 13

0

24

Tecumseh 631078

Screw, Idle adj
(Superseded to 631838)

$3.99

$

In Stock, only 3 left!

0

25

Tecumseh 631028

Gasket, Bowl-to-body
(Superseded to 631028A)

$2.49

$

In Stock, Qty 20+

0

26A

Tecumseh 631808

Fitting, Fuel inlet

$13.99

$

Usually ships in 3-12 days

0

27

Tecumseh 630739

Washer

$1.99

$

In Stock, Qty 16

0

27A

Tecumseh 630739

Washer

$1.99

$

In Stock, Qty 16

0

31

Tecumseh 631029

Repair Kit

$24.99

$

In Stock, Qty 6

0
