CB 65 (59A40005727) - Cub Cadet Yanmar Tractor 7.5' Curved Boom Backhoe Attachment Boom Cylinder Parts Diagram

Tractor 7.5' Curved Boom Backhoe Attachment

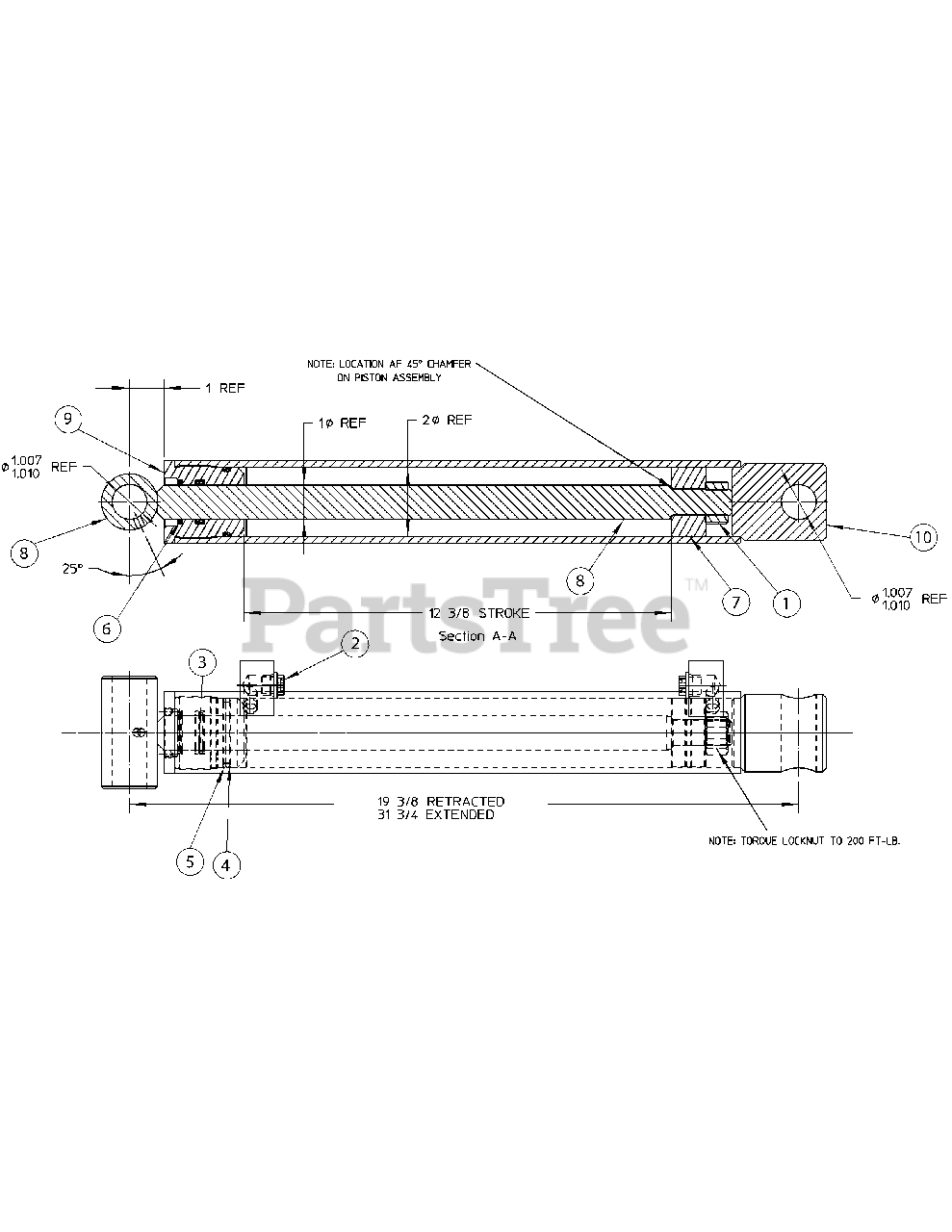

Boom Cylinder Parts Diagram

  • Title

1

Cub Cadet AQ-007574

Nut, 3/4 NF Nylok

$

$

Not available

2

Cub Cadet N/A

Cap Plug, 9/16-18 Th’d with O-Ring

$

$

Currently unavailable

3

Cub Cadet N/A

Rod Seal*

$

$

Currently unavailable

4

Cub Cadet N/A

O-Ring*

$

$

Currently unavailable

5

Cub Cadet N/A

Back-Up Ring*

$

$

Currently unavailable

6

Cub Cadet N/A

Rod Wiper*

$

$

Currently unavailable

7

Cub Cadet AQ-011684

Piston

$

$

Not available

8

Cub Cadet AQ-903550

Piston Rod Weldment

$

$

Not available

9

Cub Cadet AQ-903564

Threaded Gland

$

$

Not available

10

Cub Cadet AQ-903585

Cylinder Tube Weldment

$

$

Currently unavailable

Cub Cadet AQ-903580

Seal Repair Kit

Note: Not shown (Items denoted with * )

$

$

Not available

Cub Cadet AQ-000237

Complete Hydraulic Cylinder

Note: Not shown

$

$

Not available
