CB 65 (59A40005727) - Cub Cadet Yanmar Tractor 7.5' Curved Boom Backhoe Attachment Control Valve Service Components Parts Diagram

Tractor 7.5' Curved Boom Backhoe Attachment

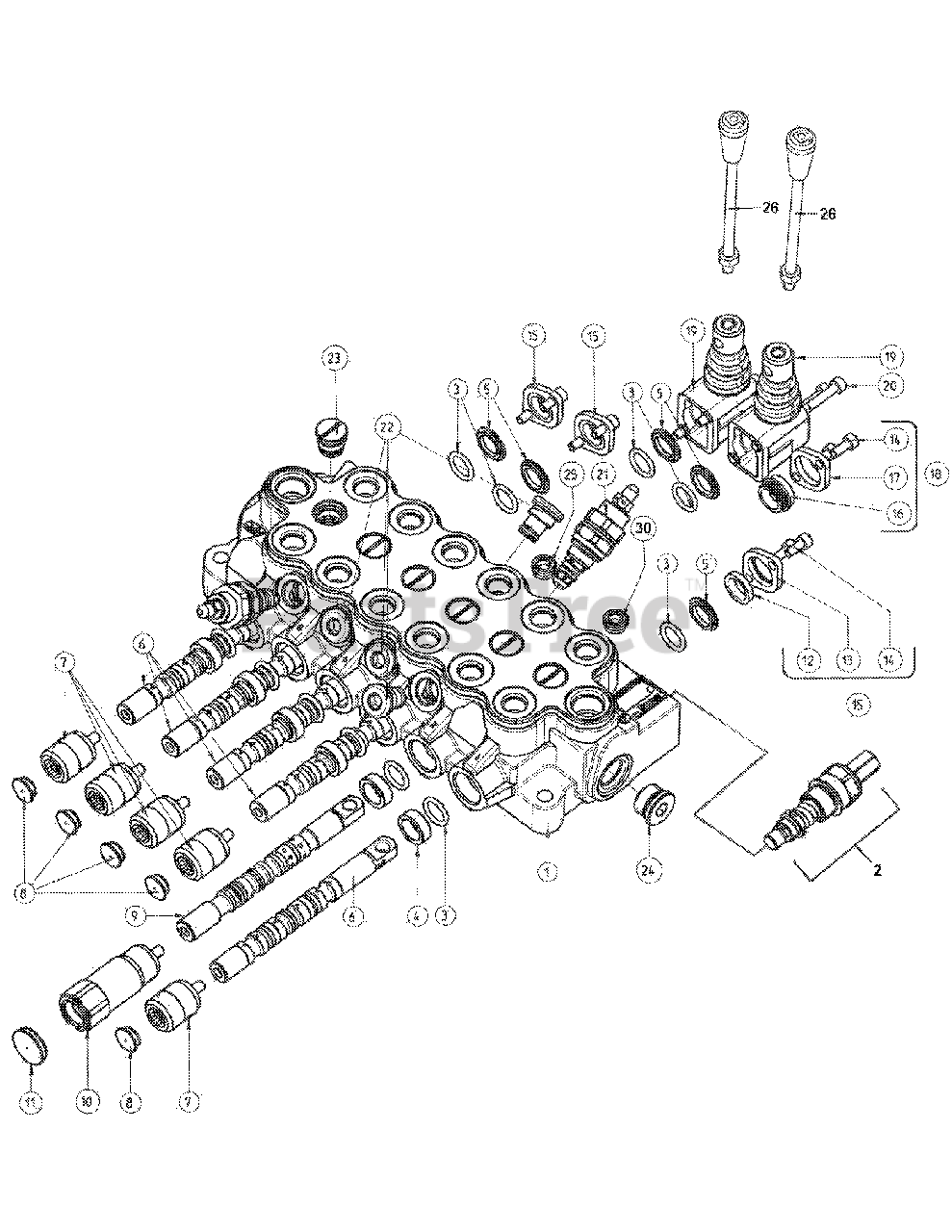

Control Valve Service Components Parts Diagram

  • Title

1

Cub Cadet N/A

Valve Casting Body

$

$

Currently unavailable

2

Cub Cadet AQ-023266

Main Relief Cartridge Components - 2250 psi

$

$

Not available

3

Cub Cadet N/A

Spool Seal

Note: (Part of Ref No. 27)

$

$

Currently unavailable

4

Cub Cadet N/A

Spacer

$

$

Currently unavailable

5

Cub Cadet N/A

Metal Washer

Note: (Part of Ref No. 27)

$

$

Currently unavailable

6

Cub Cadet N/A

Spool

$

$

Currently unavailable

7

Cub Cadet AQ-023221

Positioner

$

$

Not available

8

Cub Cadet N/A

Plug for Positioner

$

$

Currently unavailable

9

Cub Cadet N/A

Boom Spool for Non-Detented "Float"

$

$

Currently unavailable

10

Cub Cadet AQ-023222

Boom Positioner with Non-Detented "Float"

$

$

Not available

11

Cub Cadet N/A

Plug

$

$

Currently unavailable

12

Cub Cadet N/A

Spool Wiper

$

$

Currently unavailable

13

Cub Cadet N/A

Retaining Plate

$

$

Currently unavailable

14

Cub Cadet N/A

Socket Screw, M5 x 0.8 x 12 DIN 912

$

$

Currently unavailable

15

Cub Cadet N/A

Wiper Retaining Plate

Note: (Consists of the Plates and Screws which secure Ref 12, 13, and 14 in place)

$

$

Currently unavailable

16

Cub Cadet N/A

Spacer with two O-Rings

Note: (Part of Ref No. 27)

$

$

Currently unavailable

17

Cub Cadet N/A

Retaining Plate - Boom

$

$

Currently unavailable

18

Cub Cadet N/A

Wiper Retaining Plate and Hardware

Note: (Consists of the Plates and Screws which secure Ref 14, 16, and 17 in place)

$

$

Currently unavailable

19

Cub Cadet AQ-023217

Stabilizer Lever Box Assembly

$

$

Not available

20

Cub Cadet N/A

Socket Screw, M5 x 0.8 x 45 DIN 912

$

$

Currently unavailable

21

Cub Cadet AQ-023219

Work Port Relief Valve - 2175 psi

$

$

Not available

22

Cub Cadet N/A

Work Port Plug

$

$

Currently unavailable

23

Cub Cadet AQ-023220

Load Check Valve

$

$

Not available

24

Cub Cadet AQ-023214

Plug, 3/4-16 UNF SAE 8

$

$

Not available

25

Cub Cadet AQ-023218

.046 inch Orifice Assembly

Note: (Located in "B" work port of Boom Circuit)

$

$

Not available

26

Cub Cadet AQ-023216

Stabilizer Handle Assembly

$

$

Not available

27

Cub Cadet AQ-023223

Control Valve Seal Service Kit

Note: (Consists of Ref No. 3, 5, and 16)

$

$

Not available

28

Cub Cadet AQ-023225

Wiper Retaining Plate Kit

Note: (Consists of Ref 15 (three sets) and 18 (one set))

$

$

Not available

29

Cub Cadet AQ-023271

Complete Valve Assembly

$

$

Not available

30

Cub Cadet AQ-023294

Orifice Assembly, .076 inch

Note: (Located in "A" and "B" work port of Swing Circuit)

$

$

Not available
