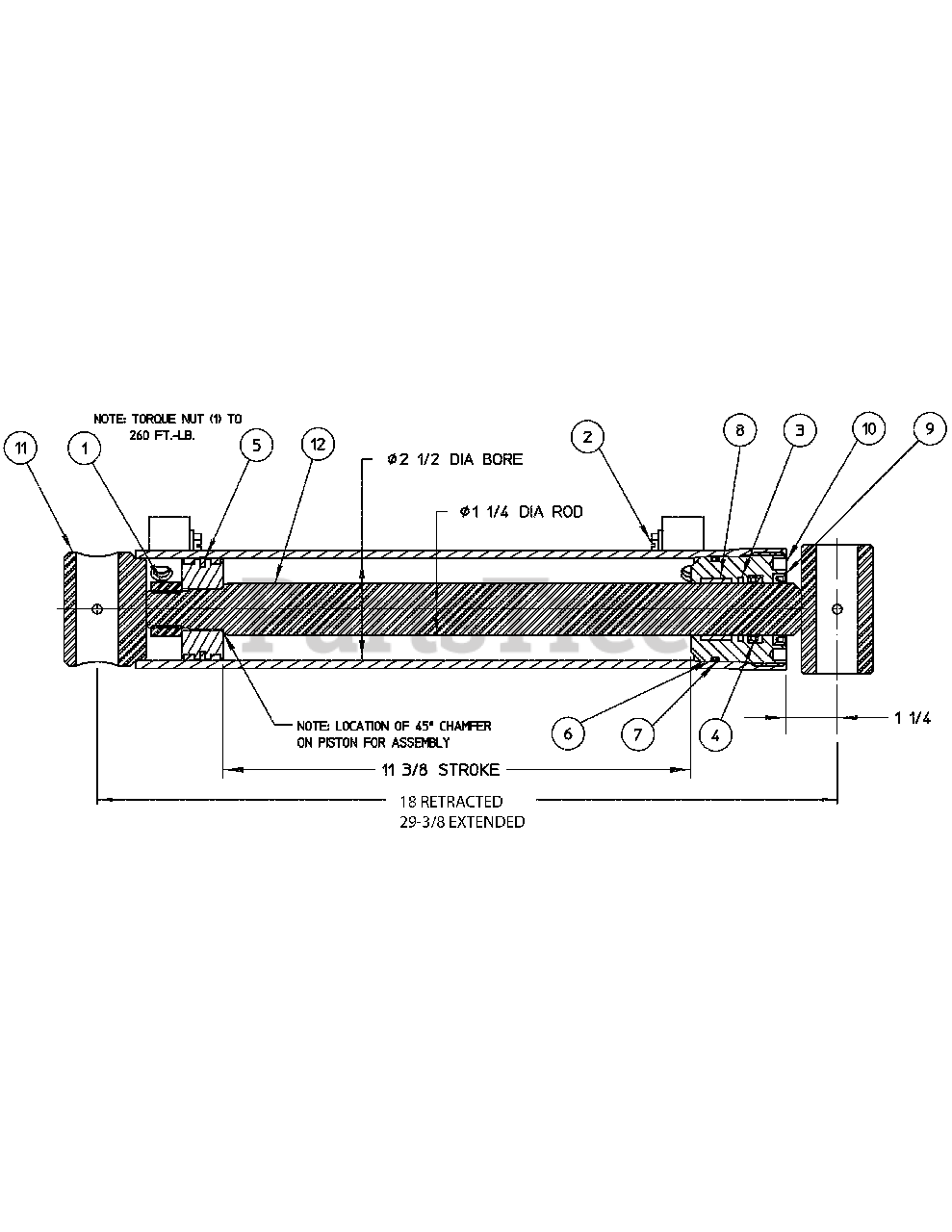

CB 65 (59A40005727) - Cub Cadet Yanmar Tractor 7.5' Curved Boom Backhoe Attachment Dipperstick Cylinder Parts Diagram

Tractor 7.5' Curved Boom Backhoe Attachment

Dipperstick Cylinder Parts Diagram

  • Title

1

Cub Cadet AQ-007609

Nut, 7/8 NF Nylok

$

$

Not available

2

Cub Cadet N/A

Cap Plug, 9/16-18 Th’d with O-Ring

$

$

Currently unavailable

3

Cub Cadet N/A

Step Seal*

$

$

Currently unavailable

4

Cub Cadet N/A

U-Cup Seal*

$

$

Currently unavailable

5

Cub Cadet AQ-011688

Piston Assembly

$

$

Not available

6

Cub Cadet N/A

O-Ring*

$

$

Currently unavailable

7

Cub Cadet N/A

Back-Up Ring*

$

$

Currently unavailable

8

Cub Cadet N/A

Wear Ring*

$

$

Currently unavailable

9

Cub Cadet N/A

Wiper Seal*

$

$

Currently unavailable

10

Cub Cadet N/A

Gland*

$

$

Currently unavailable

11

Cub Cadet AQ-908295

Cylinder Tube Weldment

$

$

Currently unavailable

12

Cub Cadet AQ-908300

Piston Rod Weldment

$

$

Not available

Cub Cadet AQ-908110

Gland Assembly Repair Kit with Seals

Note: Not Shown (Items denoted with *)

$

$

Not available

Cub Cadet AQ-000238

For Complete Hydraulic Cylinder, order

Note: Not Shown

$

$

Not available
