CB 65 (59A40005727) - Cub Cadet Yanmar Tractor 7.5' Curved Boom Backhoe Attachment Stabilizer Cylinder Parts Diagram

Tractor 7.5' Curved Boom Backhoe Attachment

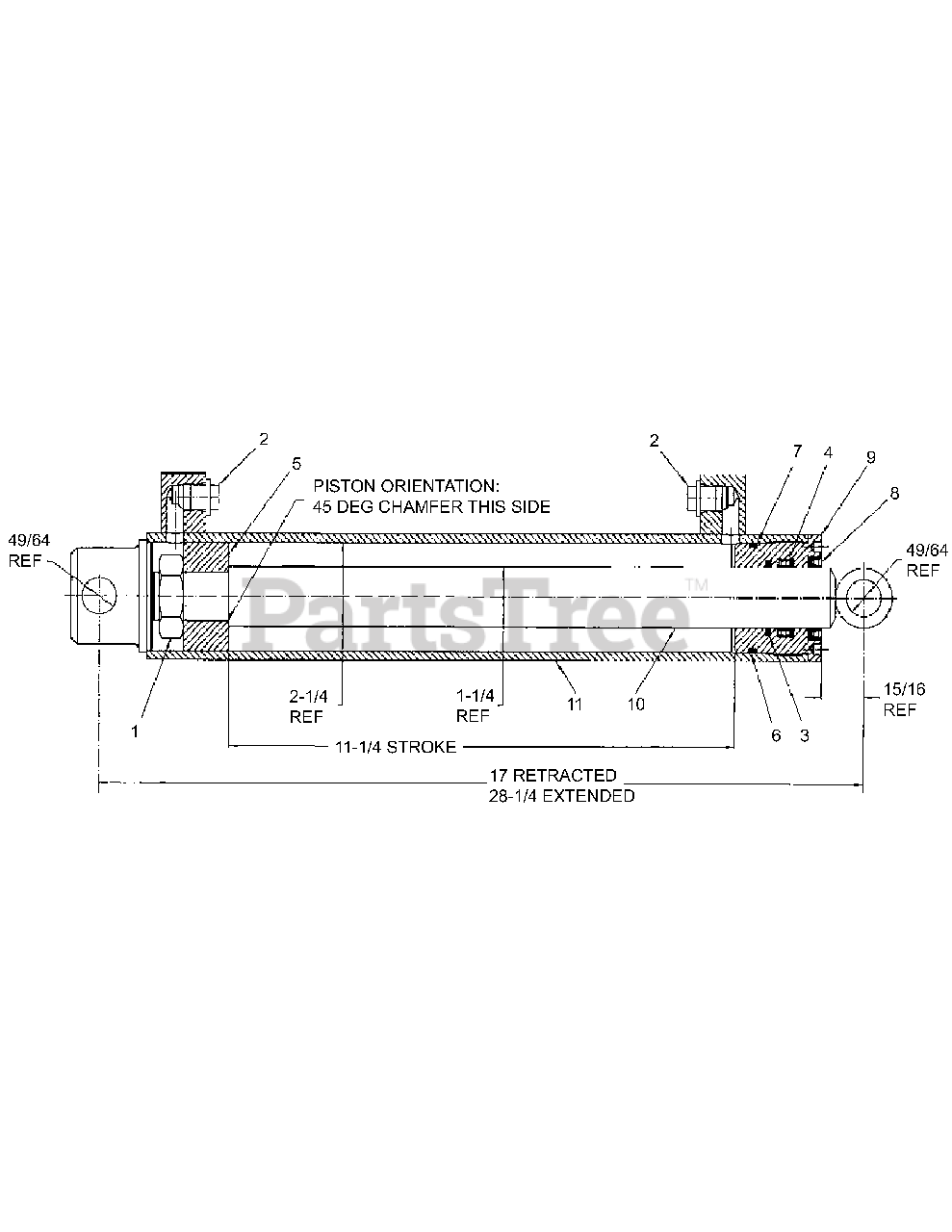

Stabilizer Cylinder Parts Diagram

  • Title

1

Cub Cadet AQ-007712

Nut, 1" Lock

$

$

Not available

2

Cub Cadet AQ-011289

Cap Plug

$

$

Currently unavailable

3

Cub Cadet N/A

Step Seal*

$

$

Currently unavailable

4

Cub Cadet N/A

U-Cup Seal*

$

$

Currently unavailable

5

Cub Cadet AQ-011687

Piston

$

$

Currently unavailable

6

Cub Cadet N/A

O-Ring*

$

$

Currently unavailable

7

Cub Cadet N/A

Back-Up Ring*

$

$

Currently unavailable

8

Cub Cadet N/A

Rod Wiper*

$

$

Currently unavailable

9

Cub Cadet AQ-902584

Threaded Gland

$

$

Not available

10

Cub Cadet AQ-902585

Piston Rod Weldment

$

$

Not available

11

Cub Cadet AQ-902590

Cylinder Tube Weldment

$

$

Currently unavailable

Cub Cadet AQ-902583

Seal Repair Kit

Note: Not shown (Items denoted with * , less Piston)

$

$

Not available

Cub Cadet AQ-902582

Seal Repair Kit

Note: Not shown (Items denoted with * , with Piston)

$

$

Not available

Cub Cadet AQ-000242

For Complete Hydraulic Cylinder

Note: Not shown

$

$

Not available
