CB 65 (59A40005727) - Cub Cadet Yanmar Tractor 7.5' Curved Boom Backhoe Attachment Swing Cylinder Parts Diagram

Tractor 7.5' Curved Boom Backhoe Attachment

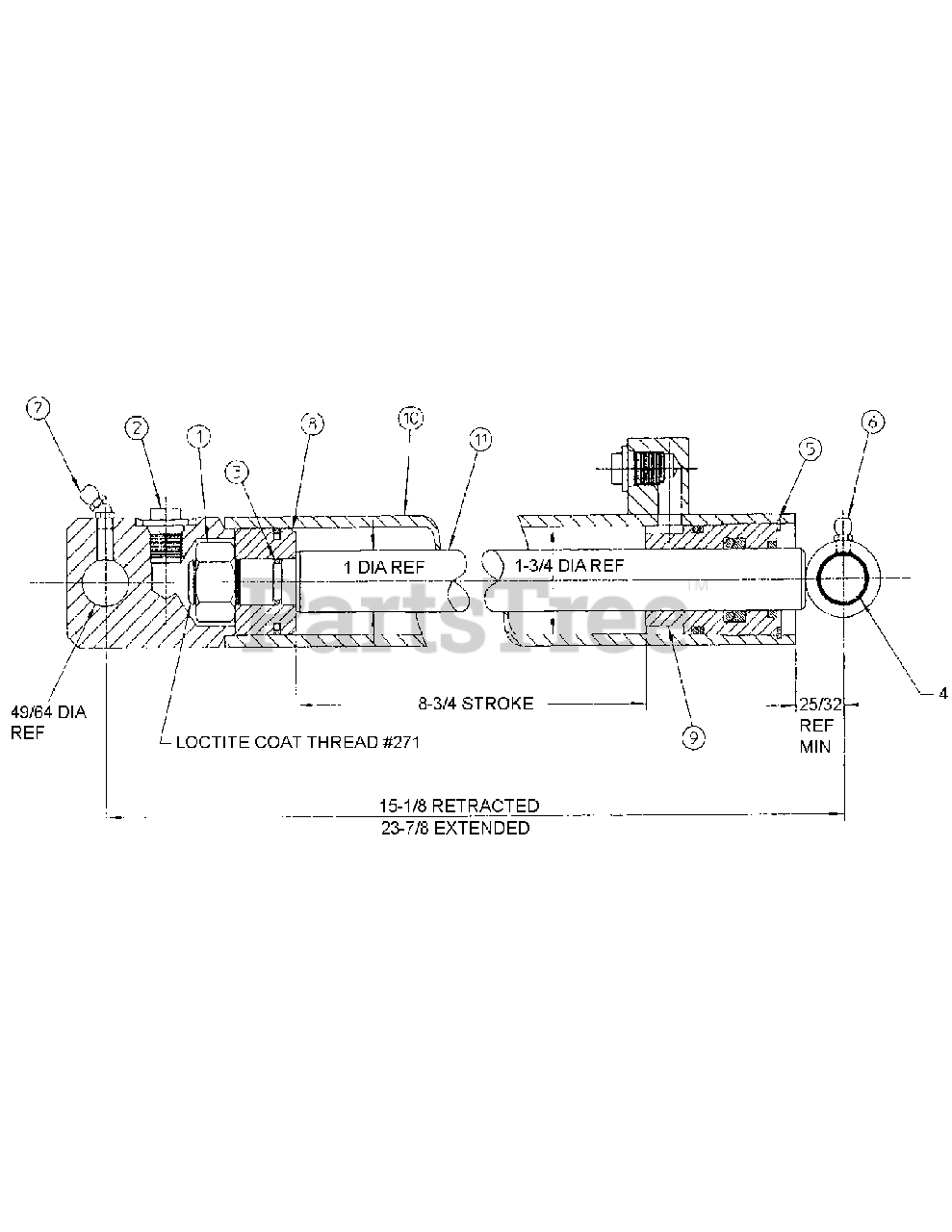

Swing Cylinder Parts Diagram

  • Title

1

Cub Cadet AQ-007574

Nut, 3/4" NF Lock

$

$

Not available

2

Cub Cadet N/A

Plug

$

$

Currently unavailable

3

Cub Cadet N/A

O-Ring*

$

$

Currently unavailable

4

Cub Cadet AQ-011974

Bronze Bearing 7/8"OD x 3/4"ID x 1" long

$

$

Not available

5

Cub Cadet AQ-013404

Retaining Ring

$

$

Not available

6

Cub Cadet AQ-014505

Grease Fitting, 1/4-28 Self Tapping

$

$

Not available

7

Cub Cadet AQ-014521

Grease Fitting, 1/4-28 Self Tapping x 45 degree

$

$

Not available

8

Cub Cadet AQ-903160

Piston Assembly with O-Ring

$

$

Not available

9

Cub Cadet AQ-903165

Gland with O-Ring, Back-Up Ring, etc.

$

$

Not available

10

Cub Cadet AQ-903145

Cylinder Tube Weldment

$

$

Currently unavailable

11

Cub Cadet AQ-903155

Piston Rod Weldment with Bronze Bearings

$

$

Not available

Cub Cadet AQ-903175

Seal Repair Kit

Note: Not shown (Includes all O-Rings, Seals, Nut, Retaining Ring and Items denoted with * )

$

$

Not available

Cub Cadet AQ-000187

For Complete Hydraulic Cylinder, order

Note: Not shown

$

$

Not available
