CB 75 (59A40006727) - Cub Cadet Yanmar Tractor Curved Boom Backhoe Attachment BUCKET CYLINDER Parts Diagram

Tractor Curved Boom Backhoe Attachment

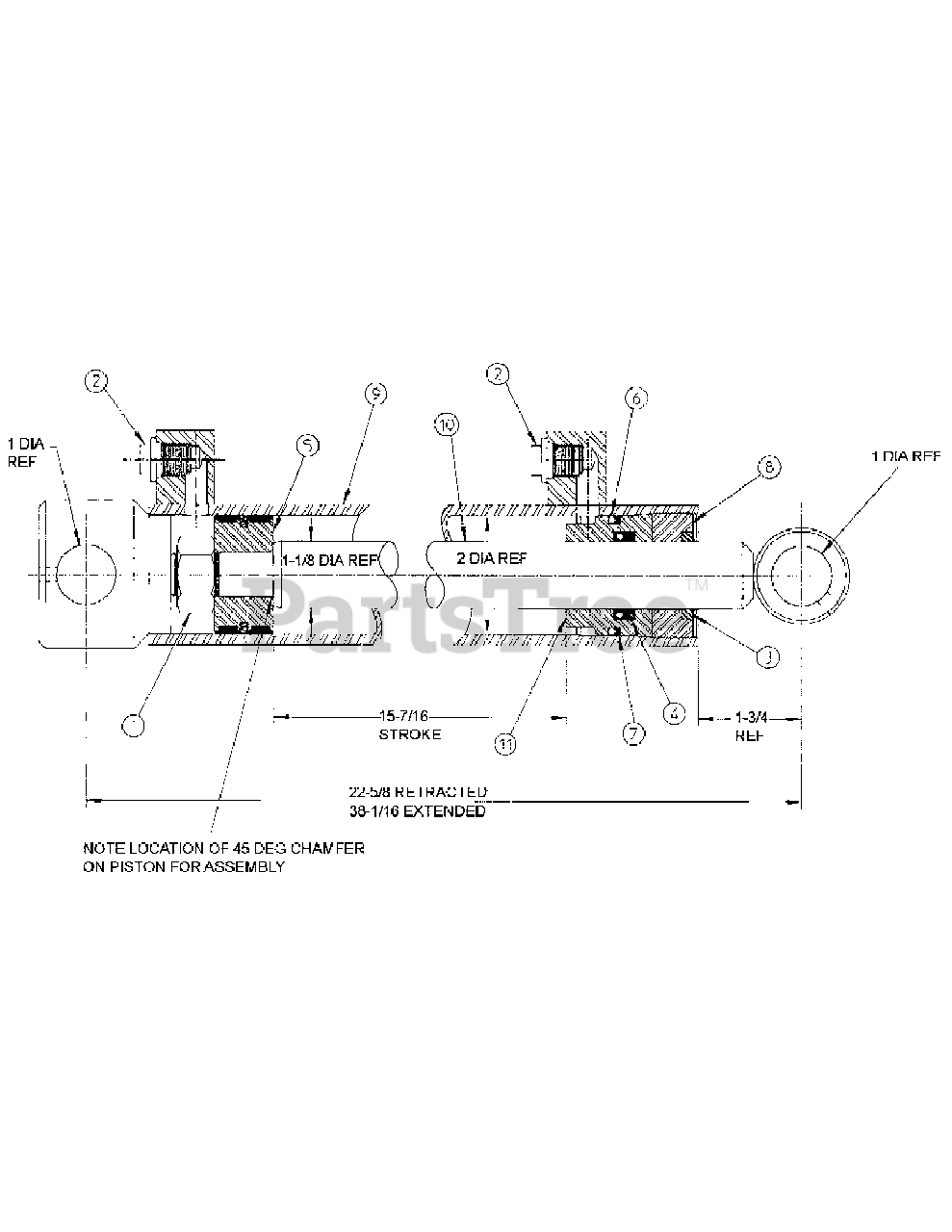

BUCKET CYLINDER Parts Diagram

  • Title

1

Cub Cadet YS-007574

NUT, 3/4'' NF LOCK

$

$

Not available

2

Cub Cadet N/A

PLUG

$

$

Currently unavailable

3

Cub Cadet N/A

ROD WIPER

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

4

Cub Cadet N/A

ROD SEAL

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

5

Cub Cadet YS-011684

PISTON

$

$

Not available

6

Cub Cadet N/A

O-RING, 2''OD X 1-3/4'' ID

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

7

Cub Cadet N/A

BACK-UP RING

Note: (Included in Seal Repair Kit)

$

$

Currently unavailable

8

Cub Cadet YS-904727

GLAND NUT (LESS ROD WIPER)

$

$

Not available

9

Cub Cadet YS-000188

CYLINDER TUBE WELDMENT

Note: furnish complete cylinder

$

$

Not available

10

Cub Cadet YS-904765

PISTON ROD WELDMENT

$

$

Not available

11

Cub Cadet YS-904800

GLAND WITH O-RINGS, BACK-UP, ETC

$

$

Not available

Cub Cadet YS-904795

SEAL REPAIR KIT

Note: (INCLUDES ALL O-RINGS, SEALS, NUT AND ROD WIPER)

$

$

Not available

Cub Cadet YS-000188

COMPLETE HYDRAULIC CYLINDER

$

$

Not available
