CB 75 (59A40006727) - Cub Cadet Yanmar Tractor Curved Boom Backhoe Attachment SWING CYLINDER Parts Diagram

Tractor Curved Boom Backhoe Attachment

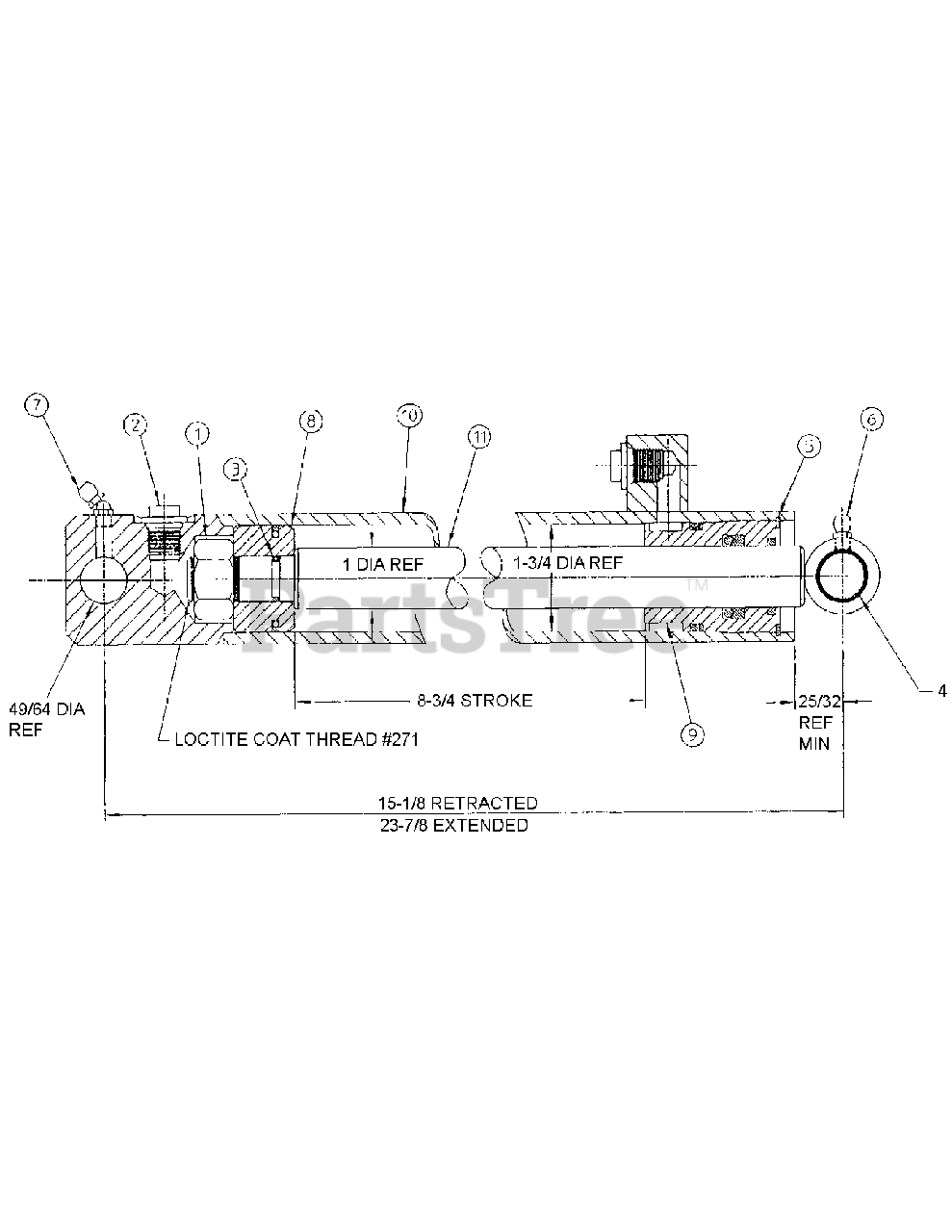

SWING CYLINDER Parts Diagram

  • Title

1

Cub Cadet YS-007574

NUT, 3/4'' NF LOCK

$

$

Not available

2

Cub Cadet N/A

PLUG

$

$

Currently unavailable

3

Cub Cadet N/A

O-RING

Note: (Included in Seal Repair Kit # YS-903175)

$

$

Currently unavailable

4

Cub Cadet YS-011974

BRONZE BEARING 7/8''OD X 3/4''ID X 1'' LONG

$

$

Not available

5

Cub Cadet YS-013404

RETAINING RING

$

$

Not available

6

Cub Cadet YS-014505

GREASE FITTING, 1/4-8 SELF TAPPING

$

$

Not available

7

Cub Cadet YS-014521

GREASE FITTING, 1/4-8 SELF TAPPING X 45 DEGREE

$

$

Not available

8

Cub Cadet YS-903160

PISTON ASSEMBLY WITH O-RING

$

$

Not available

9

Cub Cadet YS-903165

GLAND WITH O-RING, BACK-UP RING, ETC.

$

$

Not available

10

Cub Cadet YS-000187

CYLINDER TUBE WELDMENT

Note: furnish complete cylinder

$

$

Not available

11

Cub Cadet YS-903155

PISTON ROD WELDMENT WITH BRONZE BEARINGS

$

$

Not available

Cub Cadet YS-903175

SEAL REPAIR KIT

Note: (INCLUDES ALL O-RINGS, SEALS, NUT, RETAINING RING)

$

$

Not available

Cub Cadet YS-000187

COMPLETE HYDRAULIC CYLINDER

$

$

Not available
