CB 85 (59A40054727) - Cub Cadet Yanmar Tractor Curved Boom Backhoe Attachment Boom Cylinder Parts Diagram

Tractor Curved Boom Backhoe Attachment

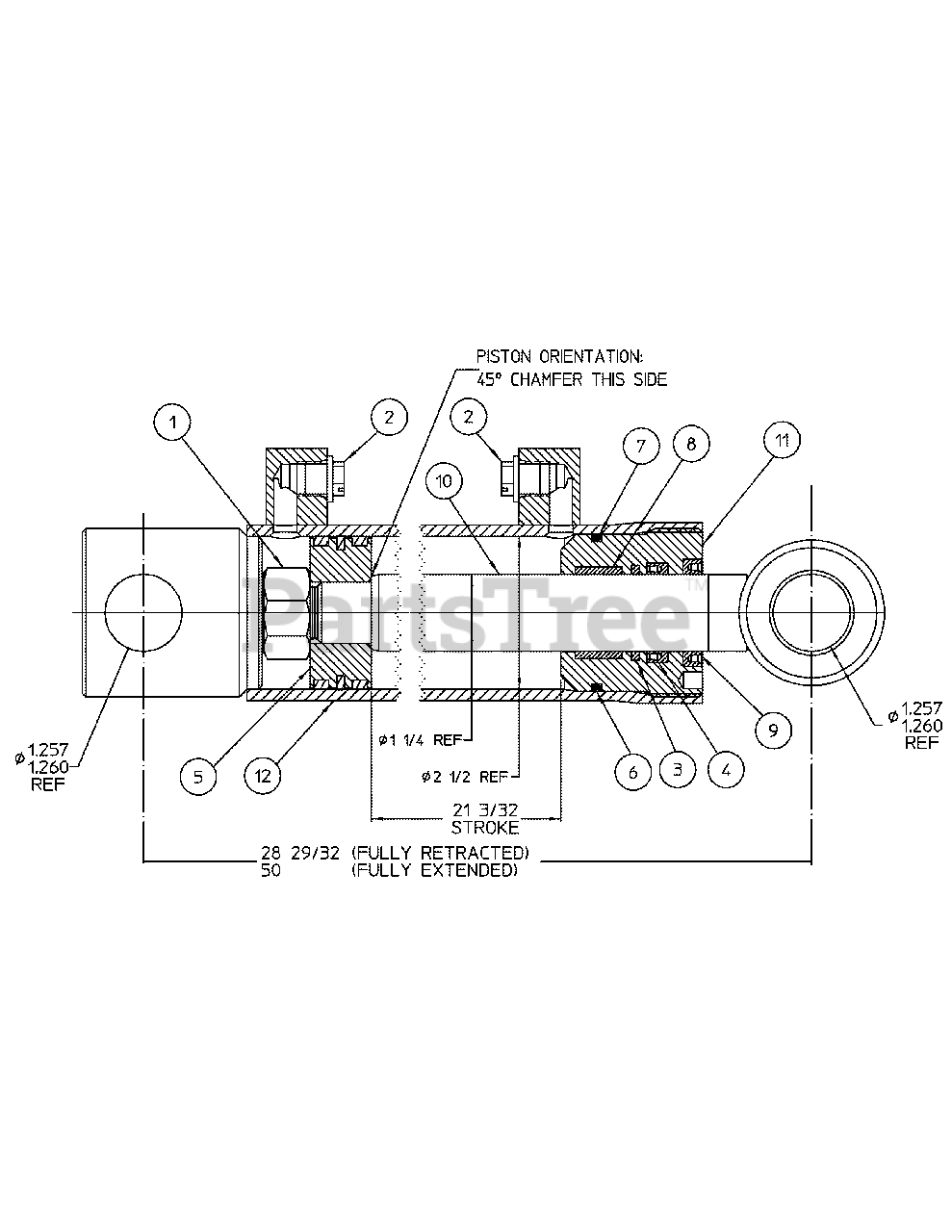

Boom Cylinder Parts Diagram

  • Title

1

Cub Cadet YS-007609

Nut, 7/8 NF Lock

$

$

Not available

2

Cub Cadet N/A

Plug

$

$

Currently unavailable

3

Cub Cadet N/A

Step Seal

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

4

Cub Cadet N/A

U-Cup Seal

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

5

Cub Cadet N/A

Piston Assembly

Note: Order YS-908115 Repair Kit with Piston

$

$

Currently unavailable

6

Cub Cadet N/A

O-Ring, 2-9/16" x 2-3/8 ID

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

7

Cub Cadet N/A

Back-Up Ring

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

8

Cub Cadet N/A

Wear Ring

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

9

Cub Cadet N/A

Rod Wiper

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

10

Cub Cadet YS-905240

Piston Rod Weldment

Note: Order Either Seal Repair Kit Below

$

$

Currently unavailable

11

Cub Cadet YS-908110

Gland with O-Rings, Back-Up, etc.

Note: Order Either Seal Repair Kit Below

$

$

Not available

12

Cub Cadet N/A

Cylinder Tube Weldment

Note: Order Completre

$

$

Currently unavailable

Cub Cadet YS-908085

Seal Repair Kit (Without Piston)

Note: Not shown

$

$

Not available

Cub Cadet YS-908115

Seal Repair Kit (With Piston)

Note: Not shown

$

$

Not available

Cub Cadet YS-000244

For Complete Hydraulic Cylinder, order

Note: Not shown

$

$

Not available
