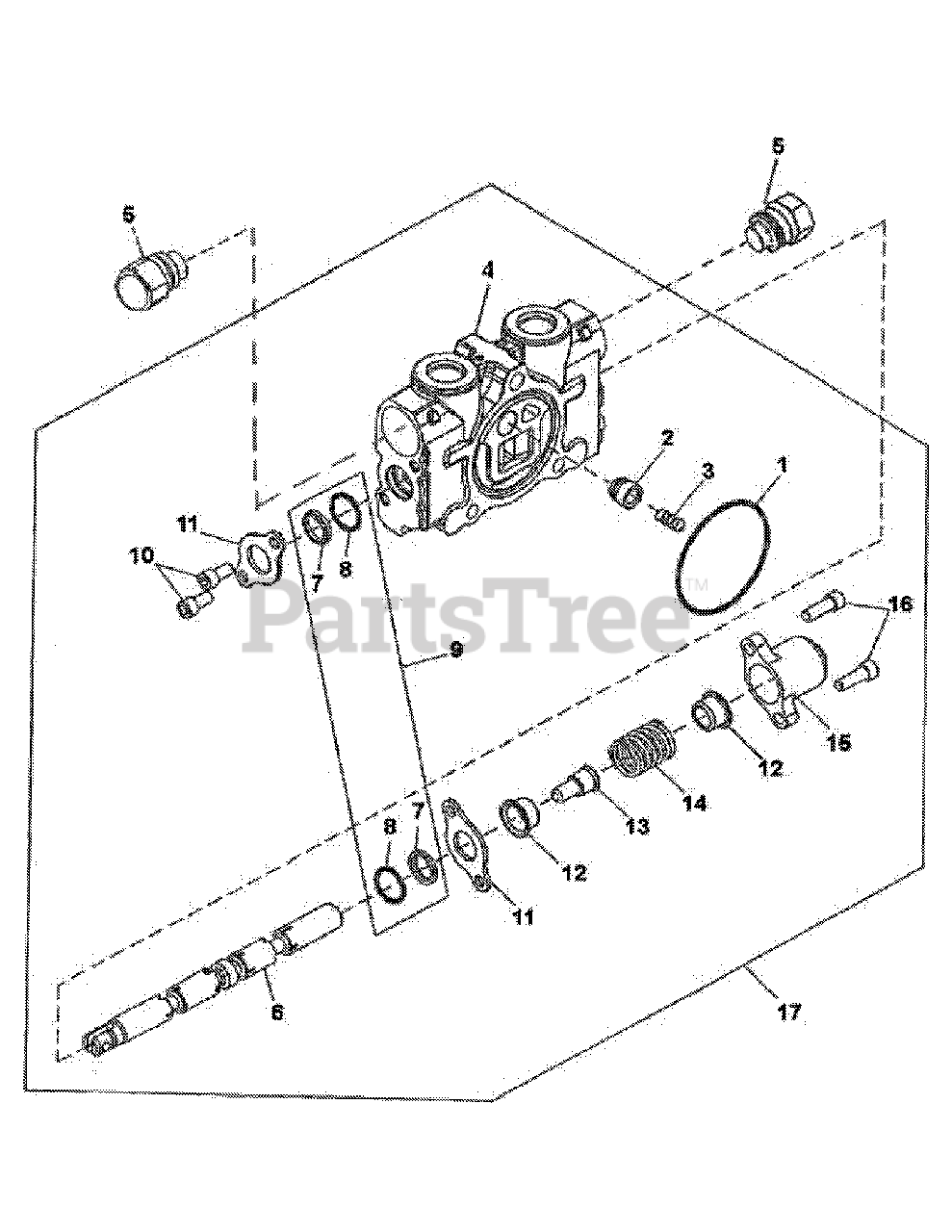

CB 85 (59A40054727) - Cub Cadet Yanmar Tractor Curved Boom Backhoe Attachment Bucket Section Parts Diagram

Tractor Curved Boom Backhoe Attachment

Bucket Section Parts Diagram

  • Title

1

Cub Cadet N/A

O-Ring

$

$

Currently unavailable

2

Cub Cadet N/A

Poppet, Load Check

$

$

Currently unavailable

3

Cub Cadet N/A

Spring, Load Check

$

$

Currently unavailable

4

Cub Cadet N/A

Valve Section

$

$

Currently unavailable

5

Cub Cadet YS-023147

Plug, Shut Off

$

$

Not available

6

Cub Cadet N/A

Spool

$

$

Currently unavailable

7

Cub Cadet N/A

Wiper, Spool

$

$

Currently unavailable

8

Cub Cadet N/A

O-Ring, Spool

$

$

Currently unavailable

9

Cub Cadet N/A

Seal Kit, Minor (contains two of Item 7 & 8)

Note: Order Seal Kit, Major

$

$

Currently unavailable

10

Cub Cadet N/A

Cap Screws, Socket Head

$

$

Currently unavailable

11

Cub Cadet N/A

Plate, Retainer

$

$

Currently unavailable

12

Cub Cadet N/A

Seat, Spring

$

$

Currently unavailable

13

Cub Cadet N/A

Screw, Spring Seat

$

$

Currently unavailable

14

Cub Cadet N/A

Spring, Spool Centering

$

$

Currently unavailable

15

Cub Cadet N/A

Cap, Spring Spool

$

$

Currently unavailable

16

Cub Cadet N/A

Cap Screws, Socket Head

$

$

Currently unavailable

17

Cub Cadet YS-023177

Valve Section Assembly (less Item 5)

$

$

Not available

18

Cub Cadet YS-023156

Seal Kit, Major

Note: Contains Ref No. 1(x1) & 7(x2),8(x2)

$

$

Not available

19

Cub Cadet YS-023149

Load Check Poppet Kit

Note: Contains Ref No. 2(x1) & 3(x1))

$

$

Not available

20

Cub Cadet YS-023141

Spring Centered Spool Positioner Kit

Note: Contains Ref No. 7(x1),8(x1),11(x1),13(x1),14(x1),15(x1) & 12(x2),16(x2)

$

$

Not available
