CBL-58V (107946001) - Echo Handheld Blower, 58V Battery, Revision 05 (2018-03) General Assembly Parts Diagram

Handheld Blower, 58V Battery, Revision 05

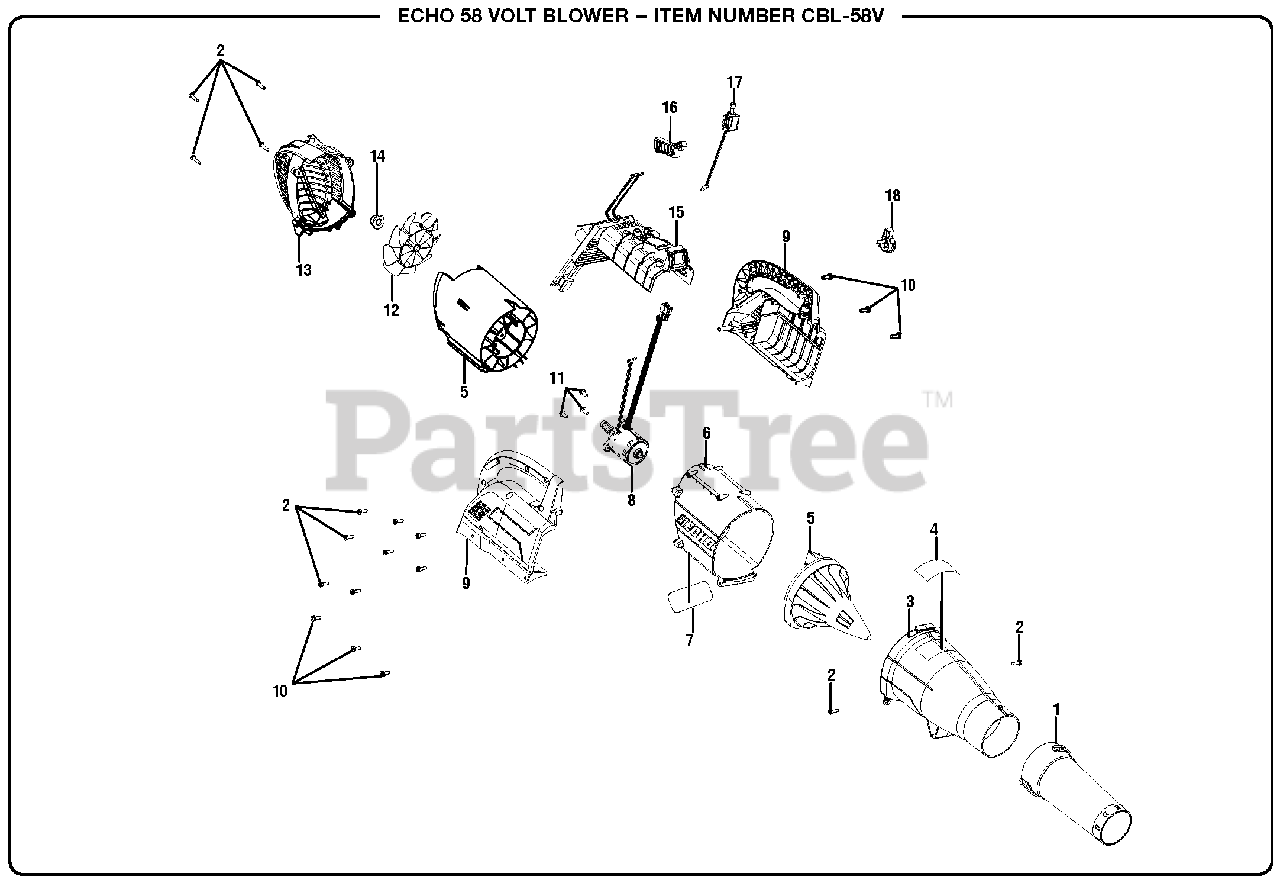

General Assembly Parts Diagram

  • Title

1

Echo 203484001

Nozzle and Scraper Assembly

$9.49

$

Usually ships in 2-4 days

0

2

Echo 662051002

Screw (M5, T25 Torx)

$1.49

$

In Stock, Qty 8

0

3

Echo 203483001

Outlet Housing
(Superseded to Discontinued)

Note: (Inc. Key No. 4)

$

$

Not available

4

Echo 940657151

Warning Icon Label

$1.49

$

Usually ships in 2-4 days

0

5

Echo 380003001

Tailcone and Guide Vein Assembly
(Superseded to Discontinued)

$

$

Not available

6

Echo 203482001

Motor Housing Assembly

Note: (Inc. Key No. 7)

$7.99

$

Usually ships in 2-4 days

0

7

Echo 941588072

Data Label

$1.49

$

Usually ships in 2-4 days

0

8

Echo 742172001

Motor Assembly
(Superseded to Discontinued)

$

$

Not available

9

Echo 380001001

Housing Assembly

$17.99

$

Usually ships in 2-4 days

0

10

Echo 662065001

Screw (M5 x 15 mm, T25 Torx)

$1.49

$

Usually ships in 2-4 days

0

11

Echo 662052002

Screw (M5 x 8 mm, T25 Torx)

$1.49

$

Usually ships in 2-4 days

0

12

Echo 528326001

Fan w/Insert

$5.49

$

Usually ships in 2-4 days

0

13

Echo 528322001

Guard Inlet

$9.99

$

Usually ships in 2-4 days

0

14

Echo 678128002

Lock Nut (M8 x 1.25)

$1.49

$

Usually ships in 2-4 days

0

15

Echo 203486001

Circuit Board & Battery Carriage Assembly

$81.99

$

Usually ships in 2-4 days

0

16

Echo 528320001

Trigger Button

$1.49

$

Usually ships in 2-4 days

0

17

Echo 760952004

Variable Speed Switch

$8.99

$

Usually ships in 2-4 days

0

18

Echo 203485001

Speed Adjustment Knob Assembly

$1.49

$

In Stock, Qty 5

0

Echo 000998945DG9

58V Battery Pack (CBP-58V20, Not Included)

Note: Not Shown

$

$

Currently unavailable

Echo 000998946DG9

58V Battery Pack (CBP-58V40, Not Included)

$

$

Currently unavailable

Echo 140330001

58V Charger (CBC-58V, Not Included)

$

$

Currently unavailable

Echo 991000278

Operator's Manual (Echo #99922205261)

$

$

Currently unavailable
