CBPW 2500 (UT-01820) - Homelite Pressure Washer Frame Assembly Parts Diagram

Pressure Washer

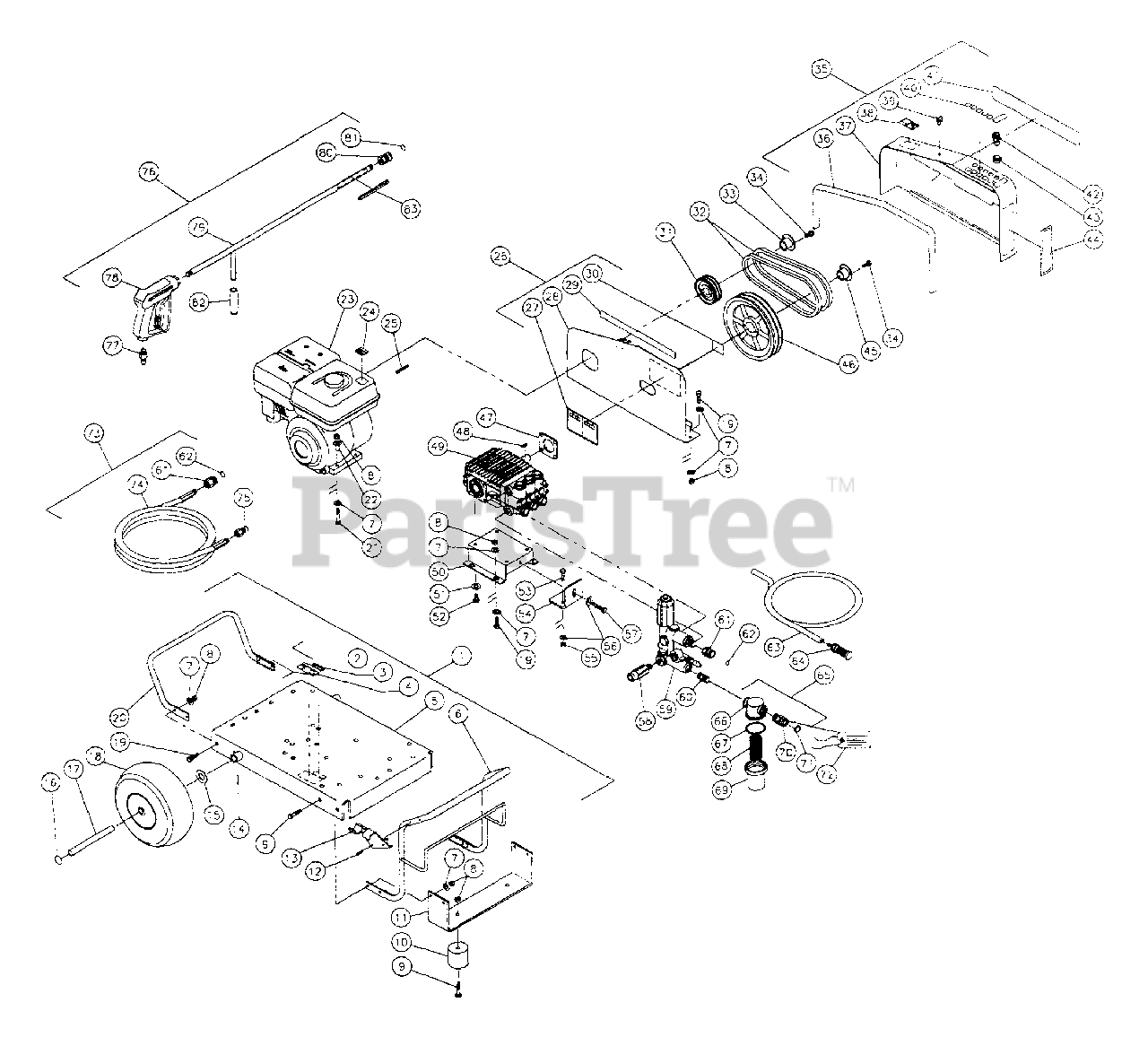

Frame Assembly Parts Diagram

  • Title

1

Homelite 0770255

Base Plate Assembly

Note: 5-20

$

$

Currently unavailable

2

Homelite 0757542

Decal - Clear Laminate

$

$

Currently unavailable

3

Decal - Cold Water Serial Number

Note: N/A

$

$

Not available

4

Homelite 0770104

Decal - Silver Sticker

$

$

Currently unavailable

5

Homelite 0770256

Base Plate

$

$

Currently unavailable

6

Homelite 0770135

Handle - Front

$

$

Currently unavailable

7

Homelite 0770144

Washer

$

$

Currently unavailable

8

Homelite 0757539

Locknut

$

$

Currently unavailable

9

Homelite 0770142

Bolt

$

$

Currently unavailable

10

Homelite 0770138

Isolator

$

$

Not available

11

Homelite 0770137

Underbracket

$

$

Currently unavailable

12

Homelite 0770143

Screw

$

$

Not available

13

Homelite 0770149

Wand holder - Plastic

$

$

Currently unavailable

14

Homelite 0770148

Roll Pin

$

$

Currently unavailable

15

Homelite 0770145

Washer

$

$

Currently unavailable

16

Homelite 0770147

Hub Cap

$

$

Not available

17

Homelite 0770257

Axle

$

$

Currently unavailable

18

Homelite 0770139

Wheel

$

$

Currently unavailable

19

Homelite 0770141

Bolt

$

$

Not available

20

Homelite 0770208

Handle - Rear

$

$

Currently unavailable

21

Homelite 0770209

Bolt

$

$

Currently unavailable

22

Homelite 0770130

Engine Shim

$

$

Currently unavailable

23

Engine - 9 HP

Note: CBPW2500

$

$

Not available

24

Homelite 0770116

Decal - Caution Allow to Cool

$

$

Currently unavailable

25

Homelite 0770156

Key

$

$

Currently unavailable

26

Homelite 0770210

Beltguard Back Assembly

Note: 27-30

$

$

Currently unavailable

27

Homelite 0770112

Decal - Caution/Warning Statements

$

$

Currently unavailable

28

Homelite 0770211

Beltguard Back-Small

$

$

Currently unavailable

29

Homelite 0770212

Edging (1" x 13.5")

$

$

Currently unavailable

30

Homelite 0770213

Decal - Warning Beltguard in Place

$

$

Currently unavailable

31

Homelite 0770214

Sheave 2AG32D

Note: CBPW2500

$

$

Currently unavailable

32

Homelite 0770215

Belt - Engine A X 33

$

$

Not available

33

Homelite 0770216

Bushing

$

$

Currently unavailable

34

Homelite 0770217

Bolt - with bushing

$

$

Currently unavailable

35

Homelite 0770218

Beltguard Cover Assy

$

$

Currently unavailable

36

Homelite 0770212

Edging (1" x 34.5")

$

$

Currently unavailable

37

Homelite 0770219

Beltguard Cover - Small

$

$

Currently unavailable

37

Homelite 0770219

Beltguard Cover - Small

$

$

Currently unavailable

38

Homelite 0770107

Decal-Warning Muffler Hot

$

$

Currently unavailable

39

Homelite 0770220

Fastener

$

$

Currently unavailable

40

Homelite 0770221

Decal - Nozzles 0ø, 15ø, 25ø, 40ø

$

$

Currently unavailable

41

Homelite 0770222

Decal -

Note: CBPW2500

$

$

Currently unavailable

42

Homelite 0783739

Nozzle - 00045

Note: CBPW2500

$

$

Currently unavailable

Homelite 0783740

Nozzle - 15045

Note: CBPW2500

$

$

Currently unavailable

Homelite 0783741

Nozzle - 25045

Note: CBPW2500

$

$

Not available

42

Homelite 0783742

Nozzle - 40045

Note: CBPW2500

$

$

Not available

Homelite 0783714

Nozzle - 6540

Note: CBPW2500

$

$

Currently unavailable

43

Homelite 0770223

Grommet

$

$

Not available

44

Homelite 0770224

Operating Instructions

$

$

Currently unavailable

45

Homelite 0770225

Bushing

$

$

Currently unavailable

46

Homelite 0770226

Sheave 2AK74H

Note: CBPW2500

$

$

Currently unavailable

47

Homelite 0770227

Isolator - Pump

$

$

Currently unavailable

48

Homelite 0770228

Key - with pump

$

$

Currently unavailable

49

Homelite 0783734

Pump

$

$

Not available

50

Homelite 0770229

Pump Bracket

$

$

Currently unavailable

51

Homelite 0770230

Washer - with pump

$

$

Currently unavailable

52

Homelite 0770231

Bolt - with pump

$

$

Currently unavailable

53

Homelite 0770153

Bolt

$

$

Currently unavailable

54

Homelite 0770232

Brace Tightener

$

$

Currently unavailable

55

Homelite 0770233

Locknut

$

$

Currently unavailable

56

Homelite 0770234

Washer

$

$

Currently unavailable

57

Homelite 0770235

Bolt

$

$

Currently unavailable

58

Homelite 0770236

Heat Dump Valve

$

$

Currently unavailable

59

Homelite 0783736

Unloader

$

$

Currently unavailable

60

Homelite 0770242

Hex Nipple

$

$

Currently unavailable

61

Homelite 0783715

Quick Connect Socket

$

$

Not available

62

Homelite 0783722

O-ring

$

$

Currently unavailable

63

Homelite 0757509

Detergent Hose (4')

$

$

Not available

64

Homelite 0757508

Detergent Strainer

$

$

Not available

65

Homelite 0770237

Strainer Complete

$

$

Not available

66

Homelite 0770238

Strainer Cap

$

$

Not available

67

Homelite 0770239

Strainer Gasket

$

$

Not available

68

Homelite 0770240

Strainer Steel Screen

$

$

Not available

69

Homelite 0770241

Strainer Bowl

$

$

Currently unavailable

70

Homelite 0770152

Garden Hose Swivel

$

$

Currently unavailable

71

Homelite 0783750

Garden Hose Gasket

$8.99

$

Usually ships in 3-7 days

0

72

Homelite 0770105

Tag - Water Supply Inlet

$

$

Currently unavailable

73

Homelite 0770122

Pressure Hose Assy

$

$

Not available

74

Homelite 0770123

Pressure Hose 3/8" x 50' 3000 PSI

$

$

Not available

75

Homelite 0770124

Quick Connect Plug - Female 3/8"

$

$

Not available

76

Homelite 0770129

Gun/Wand Assy

$

$

Currently unavailable

77

Homelite 0783717

Quick Connect Plug - Male 3/8"

$

$

Not available

78

Homelite 0783718

Gun

$

$

Currently unavailable

79

Homelite 0783720

Wand with 36" Handle

$

$

Currently unavailable

80

Homelite 0783719

Quick connect socket 1/4"

$

$

Not available

81

Homelite 0783721

O-ring

$

$

Currently unavailable

82

Homelite 0783733

Handle Grip for Wand

$

$

Currently unavailable

83

Homelite 0770114

Decal - Warning Risk of injection

$12.99

$

Usually ships in 3-7 days

0
