CBPW 3000 (UT-01821) - Homelite Pressure Washer Pump Assembly (07837-34) Parts Diagram

Pressure Washer

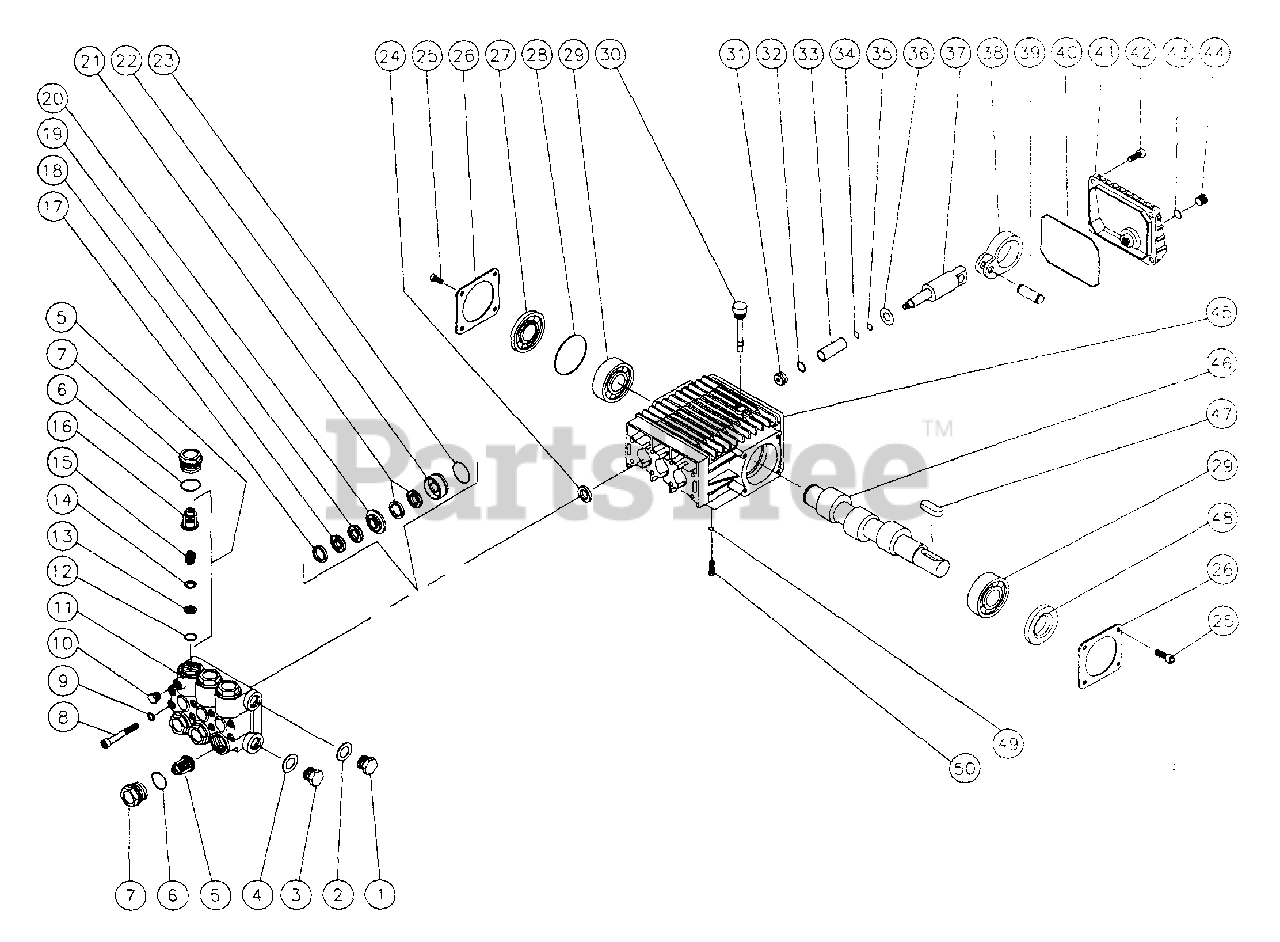

Pump Assembly (07837-34) Parts Diagram

  • Title

Homelite 0783734

Pump Assembly

$

$

Not available

1

Homelite 0812302

Hex Plug

Note: Torque Specs, Ft/Lbs 29.4

$

$

Not available

2

Homelite 0812369

Washer

$

$

Currently unavailable

3

Homelite 0812370

Hex Plug

Note: Torque Specs, Ft/Lbs 29.4

$

$

Currently unavailable

4

Homelite 0812371

Washer

$

$

Currently unavailable

5

Valve Assy

Note: 12-16, N/A Sep.; See P/N 0783727

$

$

Not available

6

Homelite 0812310

O-ring

$

$

Not available

7

Homelite 0812373

Valve Plug

Note: Torque Specs, Ft/Lbs 73.7

$

$

Currently unavailable

8

Homelite 0812334

Bolt

Note: Torque Specs, Ft/Lbs 14.7

$

$

Not available

9

Homelite 0762819

Lockwasher

$

$

Currently unavailable

10

Homelite 0812375

Hex Plug

Note: Torque Specs, Ft/Lbs 9.5

$

$

Currently unavailable

11

Homelite 0812364

Pump Manifold - Brass 18mm

$

$

Currently unavailable

12

O-ring

Note: N/A Sep.; See P/N 0783727

$

$

Not available

13

Valve Seat

Note: N/A Sep.; See P/N 0783727

$

$

Not available

14

Valve Plate

Note: N/A Sep.; See P/N 0783727

$

$

Not available

15

Valve Spring

Note: N/A Sep.; See P/N 0783727

$

$

Not available

16

Valve Cage

Note: N/A Sep.; See P/N 0783727

$

$

Not available

17

Head Ring

Note: N/A Sep.; See P/N 0783735

$

$

Not available

18

V-Packing

Note: N/A Sep.; See P/N 0783735

$

$

Not available

19

Stop Ring Packing

Note: N/A Sep.; See P/N 0783735

$

$

Not available

20

Homelite 0812305

Intermediate Ring

$

$

Currently unavailable

21

Pressure Seal

Note: N/A Sep.; See P/N 0783735

$

$

Not available

22

Homelite 0812330

Packing Retainer

$175.99

$

Usually ships in 3-7 days

0

23

Homelite 0812379

O-ring

$

$

Not available

24

Homelite 0783738

Oil Seal

$

$

Currently unavailable

25

Homelite 0812381

Bolt

Note: Torque Specs, Ft/Lbs 7.3

$

$

Currently unavailable

26

Homelite 0812382

Retainer/Oil Level/Spacer

$

$

Currently unavailable

27

Homelite 0812383

Oil Level Indicator/Spacer

$

$

Currently unavailable

28

Homelite 0812336

O-ring

$

$

Not available

29

Homelite 0812384

Ball Bearing

$

$

Currently unavailable

30

Homelite 0812317

Oil Dipstick

$

$

Currently unavailable

31

Homelite 0812318

Nut

Note: Torque Specs, Ft/Lbs 11.0

$

$

Currently unavailable

32

Homelite 0812319

Washer

$

$

Not available

33

Homelite 0783737

Plunger

$

$

Not available

34

Homelite 0812321

O-ring

$

$

Currently unavailable

35

Homelite 0812322

Back-up Ring

$

$

Not available

36

Homelite 0812386

Flinger Washer

$

$

Not available

37

Homelite 0812387

Piston Guide

$

$

Currently unavailable

38

Homelite 0812388

Connecting Rod

$

$

Currently unavailable

39

Homelite 0812389

Pin for Connecting Rod

$

$

Currently unavailable

40

Homelite 0812390

O-ring

$

$

Currently unavailable

41

Homelite 0812391

Crankcase cover

$

$

Currently unavailable

42

Homelite 0812392

Bolt

Note: Torque Specs, Ft/Lbs 7.3

$

$

Currently unavailable

43

Homelite 0812393

O-ring

$

$

Not available

44

Homelite 0812306

Hex Plug

Note: Torque Specs, Ft/Lbs 14.7

$15.99

$

Usually ships in 3-7 days

0

45

Homelite 0812394

Crankcase

$

$

Currently unavailable

46

Homelite 0770228

Crankcase Shaft

$

$

Currently unavailable

47

Homelite 0812372

Key

$

$

Currently unavailable

48

Homelite 0812374

Oil Seal

$

$

Not available

49

Homelite 0770230

Lockwasher

$

$

Currently unavailable

50

Homelite 0770231

Bolt

Note: Torque Specs, 14.7

$

$

Currently unavailable

Homelite 0783727

Valve Kit

Note: 6 each of 12-16

$

$

Not available

Homelite 0783735

V-Packing Kit

Note: 3 each of 17, 18, 19, & 21

$

$

Not available
