CBR-32 - Toro 32" Sickle Mower Deck (1961) Parts List For Cbr-32 Parts Diagram

32" Sickle Mower Deck

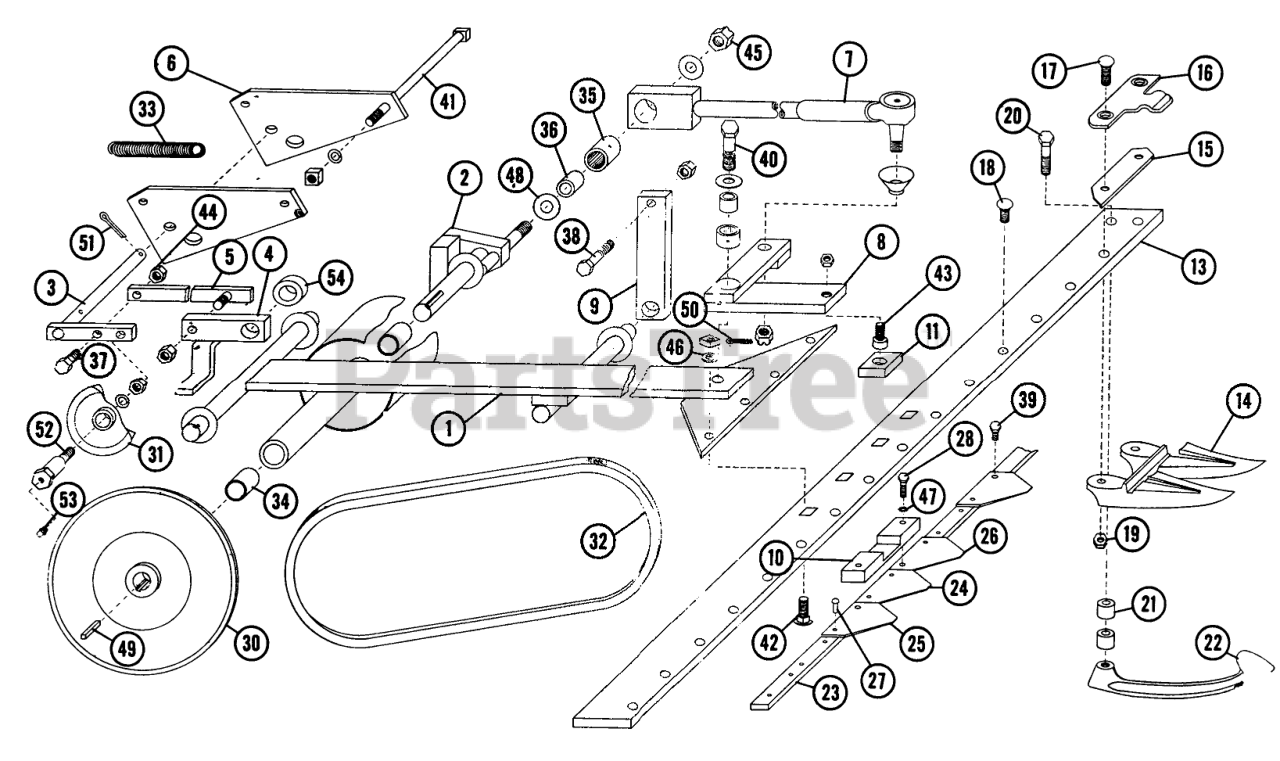

Parts List For Cbr-32 Parts Diagram

  • Title

1

Toro 2240

Spacer
(Superseded to 147181)

$

$

Not available

2

Toro 2207

Crankshaft Assembly

$

$

Currently unavailable

3

Toro 2245

Idler Lever Assembly

$

$

Currently unavailable

4

Toro 2248

Pedal, Clutch

$

$

Currently unavailable

5

Toro 2251

Link, Clutch

$

$

Currently unavailable

6

Toro 2239

Hanger Plate

$

$

Currently unavailable

7

Toro 2253

Pitman Assembly

$

$

Currently unavailable

8

Toro 2254

Rocker Arm Assembly

$

$

Currently unavailable

9

Toro 2260

Lift Link

$

$

Currently unavailable

10

Toro 2228

Saddle Block
(Superseded to 741201)

$858.99

$

Usually ships in 3-6 days

0

11

Toro 2227

Drive Block

$

$

Currently unavailable

12

Toro 2237

Cutting Unit Complete
(Superseded to 740905)

$

$

Not available

13

Toro 2229

Guard Bar

$

$

Currently unavailable

14

Toro 2230

DUP PART SEE $BOOK

$

$

Not available

15

Toro 2231

Wear Plates

$

$

Currently unavailable

16

Toro 2232

DISCONTINUED

$

$

Not available

17

Toro 1068

Plow Bolt, 3/8-16 x 1 1/4

$

$

Currently unavailable

18

Toro 1069

Plow Bolt w/nut

$

$

Currently unavailable

19

Toro 1016

Hex Nut

$

$

Currently unavailable

20

Toro 1015

Hex Hd. Cap Screw 3/8-16 x 1 3/4

$

$

Currently unavailable

21

Toro 2233

DISCONTINUED

$

$

Not available

22

Toro 2234

DISCONTINUED

$

$

Not available

23

Toro 2235

Knife Bar

$

$

Currently unavailable

24

Toro 2236

Section

$

$

Currently unavailable

25

Toro 2261

Knife Section, R.H.

$

$

Currently unavailable

26

Toro 2262

Knife Section, L.H.

$

$

Currently unavailable

27

Toro 1071

Rivet

$

$

Currently unavailable

28

Toro 1055

Inner Felt Seal
(Superseded to 703428)

$16.99

$

Usually ships in 3-6 days

0

29

Toro 2238

Knife Assembly, Includes No. 23, 24, 27

$

$

Currently unavailable

30

Toro 1603

DISCONTINUED

$

$

Not available

31

Toro 1602

DISCONTINUED

$

$

Not available

32

Toro 1563

DISCONTINUED

$

$

Not available

33

Toro 1014

DUP PART SEE $BOOK

$

$

Not available

34

Toro 1504

BUSHING-BRONZE

$53.99

$

Usually ships in 3-6 days

0

35

Toro 1508

See Supercession: 252-6
(Superseded to 252-6)

$13.99

$

In Stock, Qty 7

0

36

Toro 1507

Inner Race

$

$

Currently unavailable

37

Toro 1062

Hex Head Cap

$

$

Currently unavailable

38

Toro 1064

Hex Head Cap Screw

$

$

Currently unavailable

39

Toro 1056

Felt Seal
(Superseded to 701778)

$8.99

$

In Stock, only 2 left!

0

40

Toro 1057

DUP PART SEE $BOOK

$

$

Not available

41

Toro 1162

Machine Bolt 3/8 x 7

$

$

Currently unavailable

42

Toro 1063

Spring Clip
(Superseded to 146428)

$

$

Not available

43

Toro 1059

Soc. Hd. Cap Screw 3/8-16 x 3/4
(Superseded to 704006)

$

$

Not available

44

Toro 1080

31300 '65-67&UP 20

$3.49

$

Usually ships in 3-6 days

0

45

Toro 1044

Bearing Cup
(Superseded to 254-79)

$7.49

$

In Stock, Qty 12

0

46

Toro 1039

Lockwasher

$

$

Currently unavailable

47

Toro 1067

Lockwasher, 1/4

$

$

Currently unavailable

48

Toro 1017

S.A.E. Washer
(Superseded to 704001)

$

$

Not available

49

Toro 1005

See Supercession: 5-1077
(Superseded to 5-1077)

$7.49

$

In Stock, Qty 14

0

50

Toro 1002

Cotter Key
(Superseded to 703201)

$

$

Not available

51

Toro 1137

Cotter Pin

$

$

Not available

52

Toro 1049

Shoulder Bolt

$

$

Currently unavailable

53

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

54

Toro 1085

See Supercession: 83-2770
(Superseded to 83-2770)

$

$

Not available
