CBT 65 (59A40116727) - Cub Cadet Yanmar Tractor Mechanical Thumb Kit Attachment General Assembly Parts Diagram

Tractor Mechanical Thumb Kit Attachment

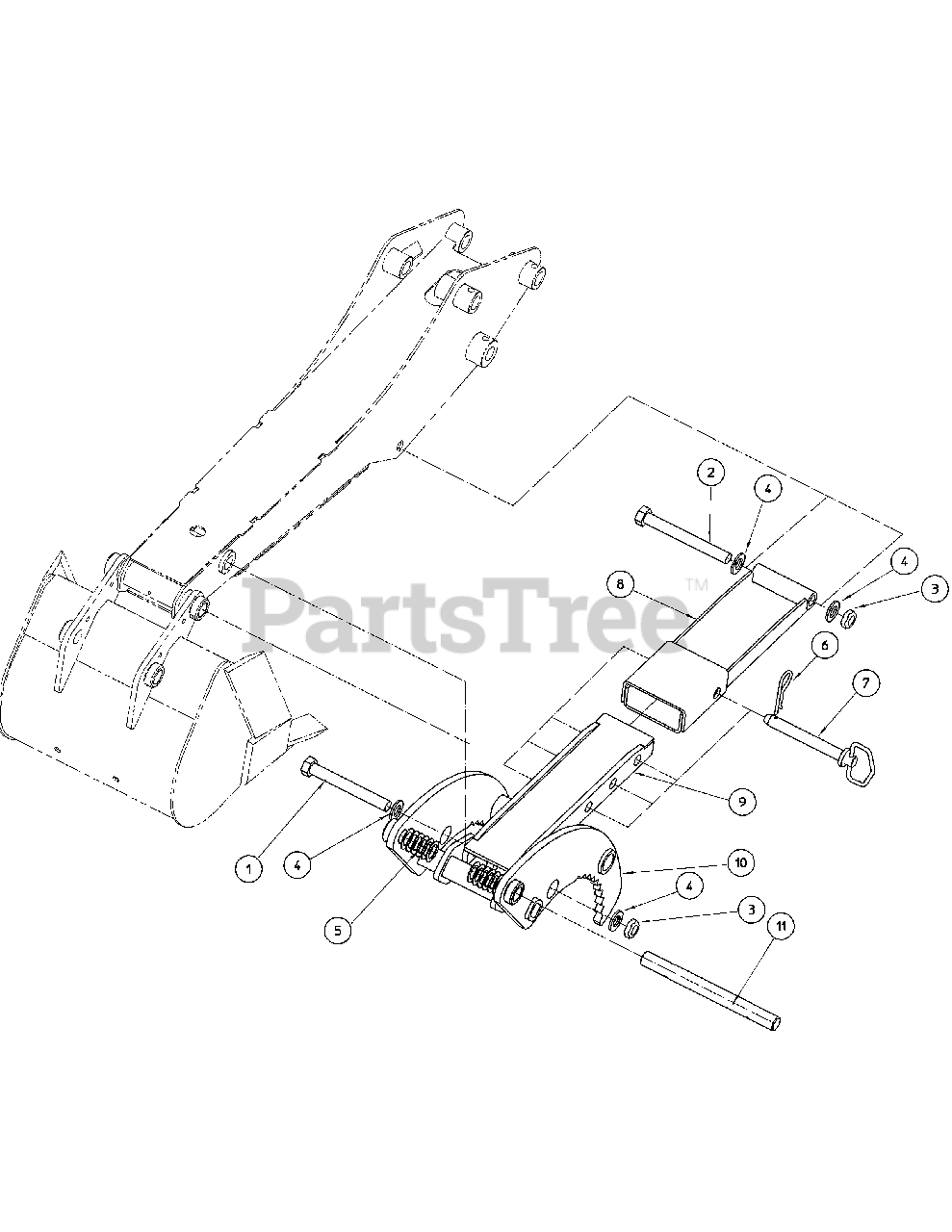

General Assembly Parts Diagram

  • Title

1

Cub Cadet AQ-007270

Hex Head Cap Screw, 3/4-16 x 6.00 Gr 5

$

$

Not available

2

Cub Cadet AQ-007272

Hex Head Cap Screw, 3/4-16 x 6.50 Gr 8

$

$

Not available

3

Cub Cadet AQ-007576

Nut, Hex 3/4-16 Jam

$

$

Not available

4

Cub Cadet AQ-008192

Flat Washer, 3/4 SAE

$

$

Not available

5

Cub Cadet AQ-008283

Machine Bushing 1 x 1-1/2 x 18G

$

$

Not available

6

Cub Cadet AQ-008623

Hair Pin Clip, #6

$

$

Not available

7

Cub Cadet AQ-013511

Hitch Pin

$

$

Not available

8

Cub Cadet AQ-868285

Upper Column Weldment

$

$

Not available

9

Cub Cadet AQ-868290

Lower Column Weldment

$

$

Not available

10

Cub Cadet AQ-868355

Mechanical Thumb Weldment

$

$

Not available

11

Cub Cadet AQ-868369

Bucket/Thumb Link Pin

$

$

Not available
