CC 2000 (41BDC02G100) - Cub Cadet String Trimmer (2002) Boom And Trimmer (Automatic Line Feed Head) Parts Diagram

String Trimmer

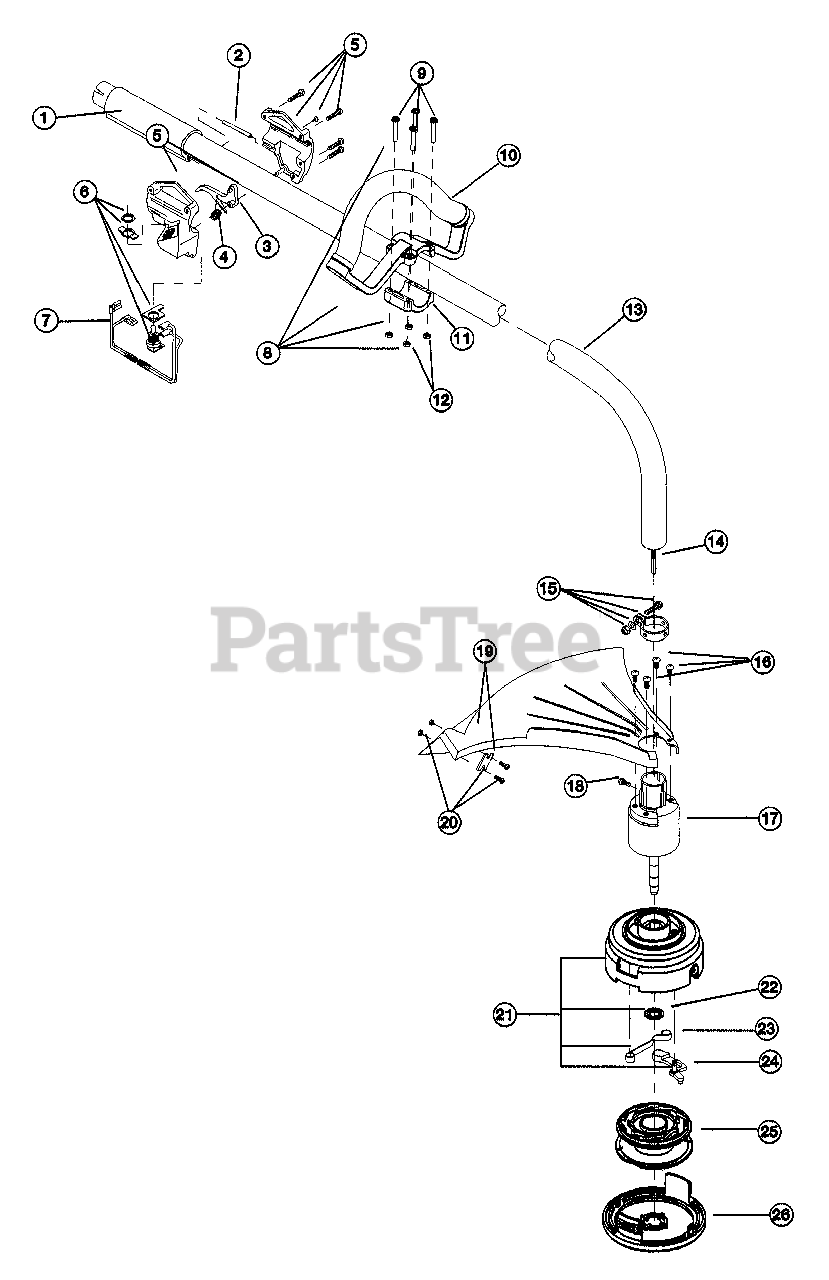

Boom And Trimmer (Automatic Line Feed Head) Parts Diagram

  • Title

1

Cub Cadet 791-180866

Grip

$

$

Not available

2

Cub Cadet 753-05088

Throttle Cable Assembly

Note: Replaces 791-181688

$

$

Not available

3

Cub Cadet 791-181807

Throttle Trigger

Note: Replaces 791-181556

$10.99

$

In Stock, only 2 left!

0

4

Cub Cadet 791-610314

Throttle Trigger Spring

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 791-182603

Throttle Trigger Assembly

Note: (Incl. Ref No 3 & 4)

$

$

Not available

6

Cub Cadet 791-180252

Switch Assembly

$

$

Not available

7

Cub Cadet 791-181690

Wire Lead Assembly

$

$

Not available

8

Cub Cadet 791-180869

Loop Handle Assembly

Note: (Incl. Ref No 9-12))

$

$

Not available

9

Cub Cadet 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 791-182167

Loop Handle

$76.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 791-182168

Bottom Clamp

$

$

Not available

12

Cub Cadet 791-181810

Nut

$

$

Not available

13

Cub Cadet 791-182838

Drive Shaft Housing Assembly

$

$

Not available

14

Cub Cadet 791-182839

Flexible Drive Shaft
(Superseded to 753-04280)

$86.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 791-153597

Lower Clamp Assembly

$

$

Not available

16

Cub Cadet 791-181858

Shield Mounting Screw

Note: Replaces 791-180531

$

$

Not available

17

Cub Cadet 791-182870

Bushing Housing Assembly

Note: (For ALF Head)

$

$

Not available

18

Cub Cadet 791-145569

Anti-Rotation Screw

$10.99

$

In Stock, Qty 7

0

19

Cub Cadet 791-180341

Shield and Blade Assembly

Note: (Includes 20)

$57.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 791-682061

Blade Assembly

$15.99

$

In Stock, only 2 left!

0

21

Cub Cadet 791-182841

Outer Spool w/ Retainer

Note: (Includes 22-24)

$

$

Not available

22

Cub Cadet 753-04348

Retainer

Note: Replaces 791-181560

$7.49

$

In Stock, only 2 left!

0

23

Cub Cadet 791-182842

Pawl Spring

$

$

Not available

24

Cub Cadet 791-182843

Ratchet Pawl

$

$

Not available

25

Cub Cadet 791-182844

Inner Reel

$

$

Not available

26

Cub Cadet 791-182845

Spool Cover

$

$

Not available

Cub Cadet 953-1156

Replacement Line, 0.095 Diameter

Note: (Not Shown) Optional Accessory

$33.99

$

In Stock, only 2 left!

0

Cub Cadet 791-182840

Automatic Line Feed Head Assembly

Note: (Not Shown) (Includes 21-26); Optional Accessory

$

$

Not available

Cub Cadet 791-682075B

Shoulder Harness

Note: (Not Shown) Optional Accessory

$41.99

$

Usually ships in 3-6 days

0
