CC 2036 - Jonsered Brushcutter (2008-08) BEVEL GEAR Parts Diagram

Brushcutter

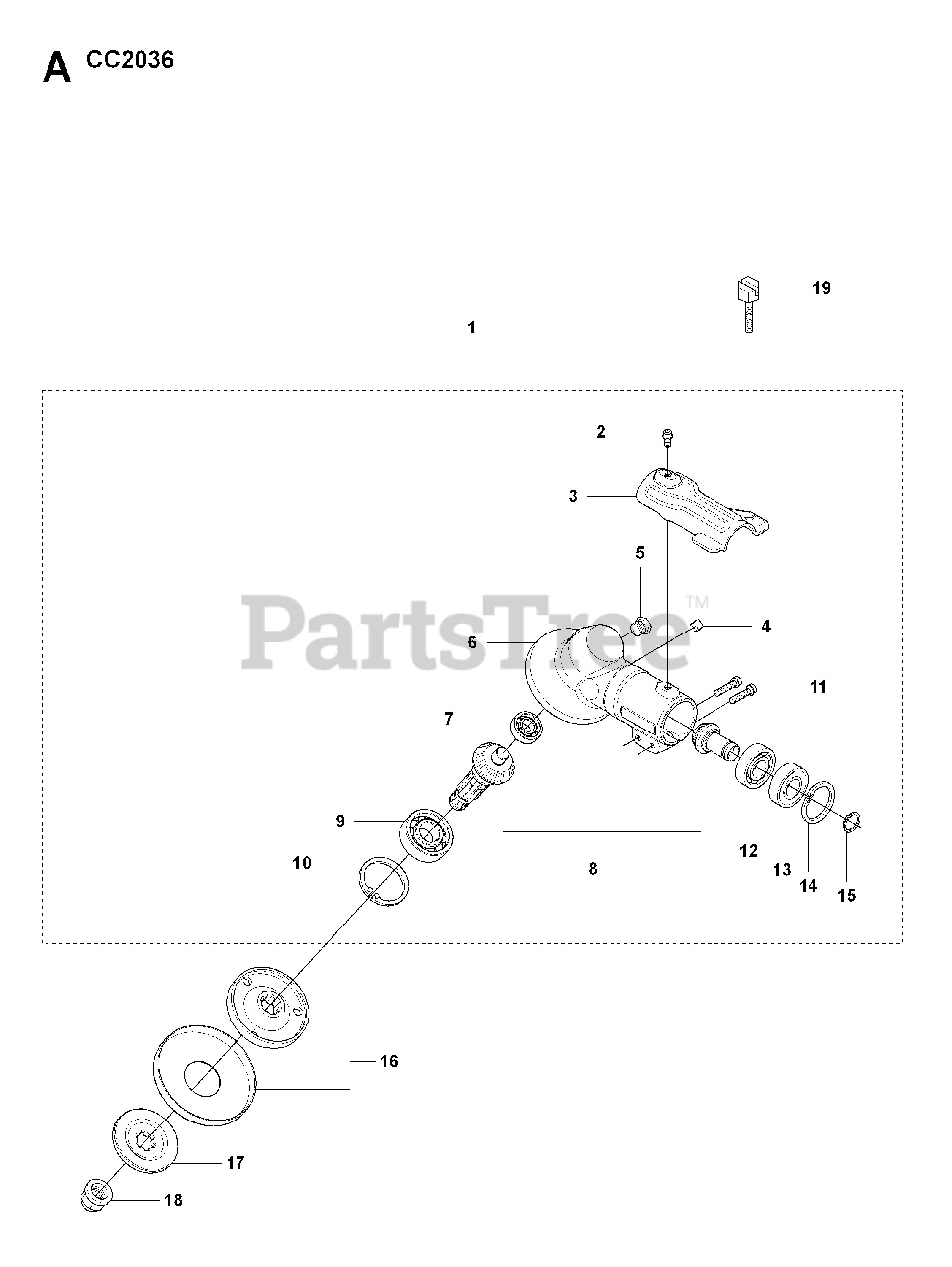

BEVEL GEAR Parts Diagram

  • Title

1

Jonsered 544216401

GEAR COMPLETE

$278.99

$

Usually ships in 3-10 days

0

2

Jonsered 503200210

SCREW
(Superseded to 503200710)

$6.49

$

In Stock, Qty 20+

0

3

Jonsered 544087601

RP HOLDER
(Superseded to 574306801)

$15.99

$

Usually ships in 3-10 days

0

4

Jonsered 537147401

MAGNET

$10.99

$

Usually ships in 3-10 days

0

5

Jonsered 503201502

PLUG
(Superseded to 503201501)

$9.99

$

In Stock, Qty 6

0

6

Jonsered 537295901

No Description Available

$

$

Not available

7

Jonsered 738219900

BALL BEARING 24X9X1/609ZR

$13.99

$

In Stock, only 1 left!

0

8

Jonsered 505133301

SPARE PARTS KIT

$72.99

$

Usually ships in 3-10 days

0

9

Jonsered 503252801

BALL BEARING

$27.99

$

Usually ships in 3-10 days

0

10

Jonsered 735313110

RETAINING RING

$4.99

$

In Stock, only 4 left!

0

11

Jonsered 503200325

SCREW

$7.49

$

In Stock, only 1 left!

0

12

Jonsered 738210110

BALL BEARING

$24.99

$

Usually ships in 3-10 days

0

13

Jonsered 738210112

BALL BEARING

$34.99

$

Usually ships in 3-10 days

0

14

Jonsered 735312810

RETAINING RING SGH 28

$7.49

$

Usually ships in 3-10 days

0

15

Jonsered 735311400

SEEGER CLIP

$6.49

$

In Stock, only 1 left!

0

16

Jonsered 537351401

RP CARRIER
(Superseded to 537351402)

$53.99

$

Usually ships in 3-10 days

0

17

Jonsered 537343501

RP FLANGE
(Superseded to 537343502)

$26.99

$

Usually ships in 3-10 days

0

18

Jonsered 503227301

BLADE NUT
(Superseded to 502291101)

$7.99

$

In Stock, Qty 9

0
