CC 2036 - Jonsered Brushcutter (2008-08) CARBURETOR AIR FILTER Parts Diagram

Brushcutter

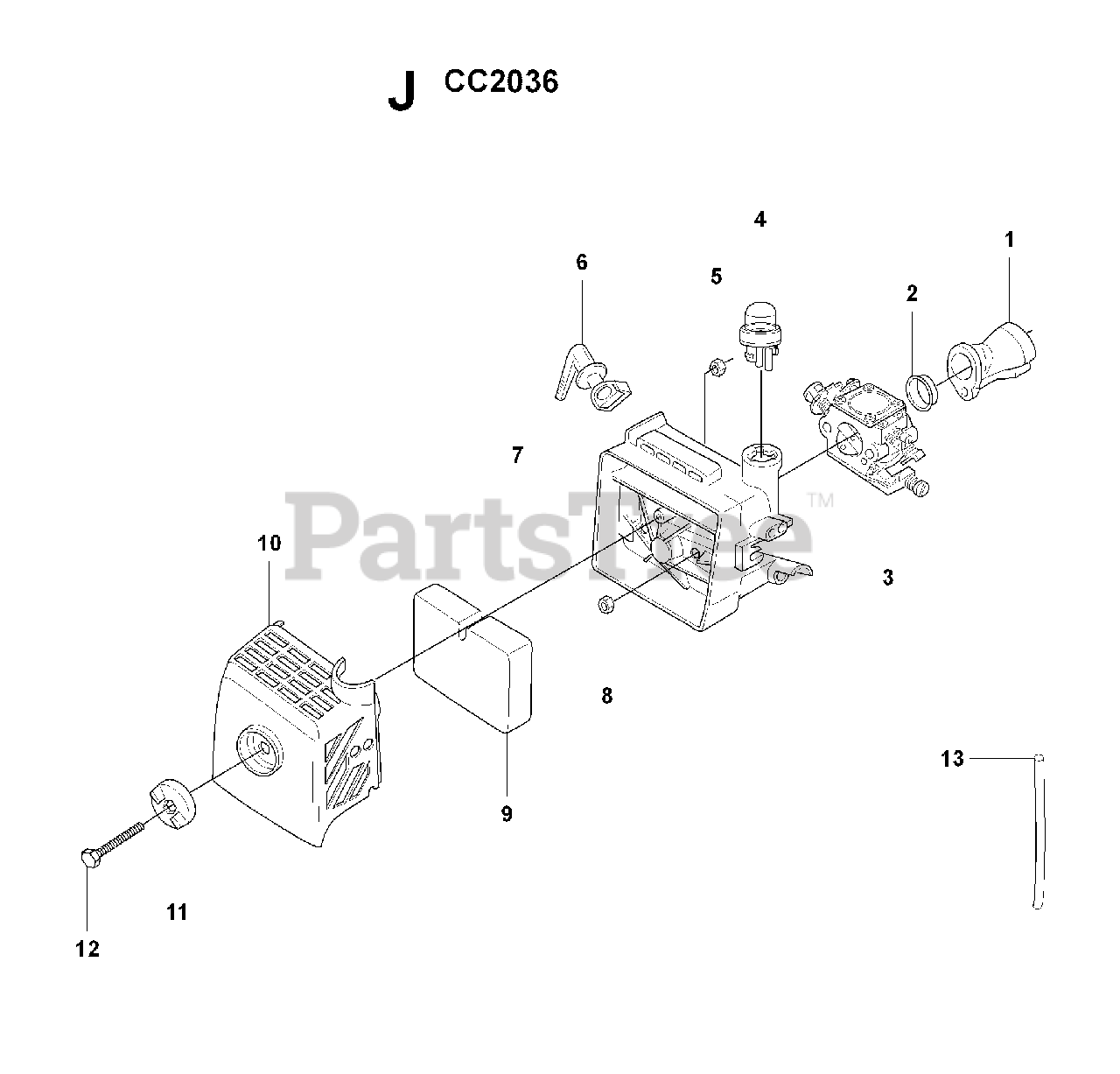

CARBURETOR AIR FILTER Parts Diagram

  • Title

1

Jonsered 502198401

INDUCTION PIPE

$22.99

$

In Stock, only 4 left!

0

2

Jonsered 502212301

GUIDE

$3.49

$

Usually ships in 3-10 days

0

3

Jonsered 537052701

%CARBURETOR WT548 WALBRO
(Superseded to 522607401)

$102.99

$

In Stock, only 3 left!

0

4

Jonsered 503936601

AIR PURGE BUBBLE

$24.99

$

In Stock, Qty 18

0

5

Jonsered 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

6

Jonsered 502208401

CHOKE CONTROL

$

$

Not available

7

Jonsered 537024801

FILTER HOLDER

$

$

Not available

8

Jonsered 731711451

NUT

$3.49

$

In Stock, Qty 7

0

9

Jonsered 502198602

AIR FILTER

$6.99

$

In Stock, only 2 left!

0

10

Jonsered 537028801

COVER

$

$

Not available

11

Jonsered 502208302

KNOB

$5.99

$

In Stock, Qty 5

0

12

Jonsered 502206501

SCREW 25MM THREAD LENGTH

$3.49

$

In Stock, only 4 left!

0

13

Jonsered 537042402

FUEL HOSE/38MM

$7.99

$

In Stock, Qty 6

0
