CC 2126 - Jonsered Brushcutter, Canada (2009-09) SHAFT HANDLE Parts Diagram

Brushcutter, Canada

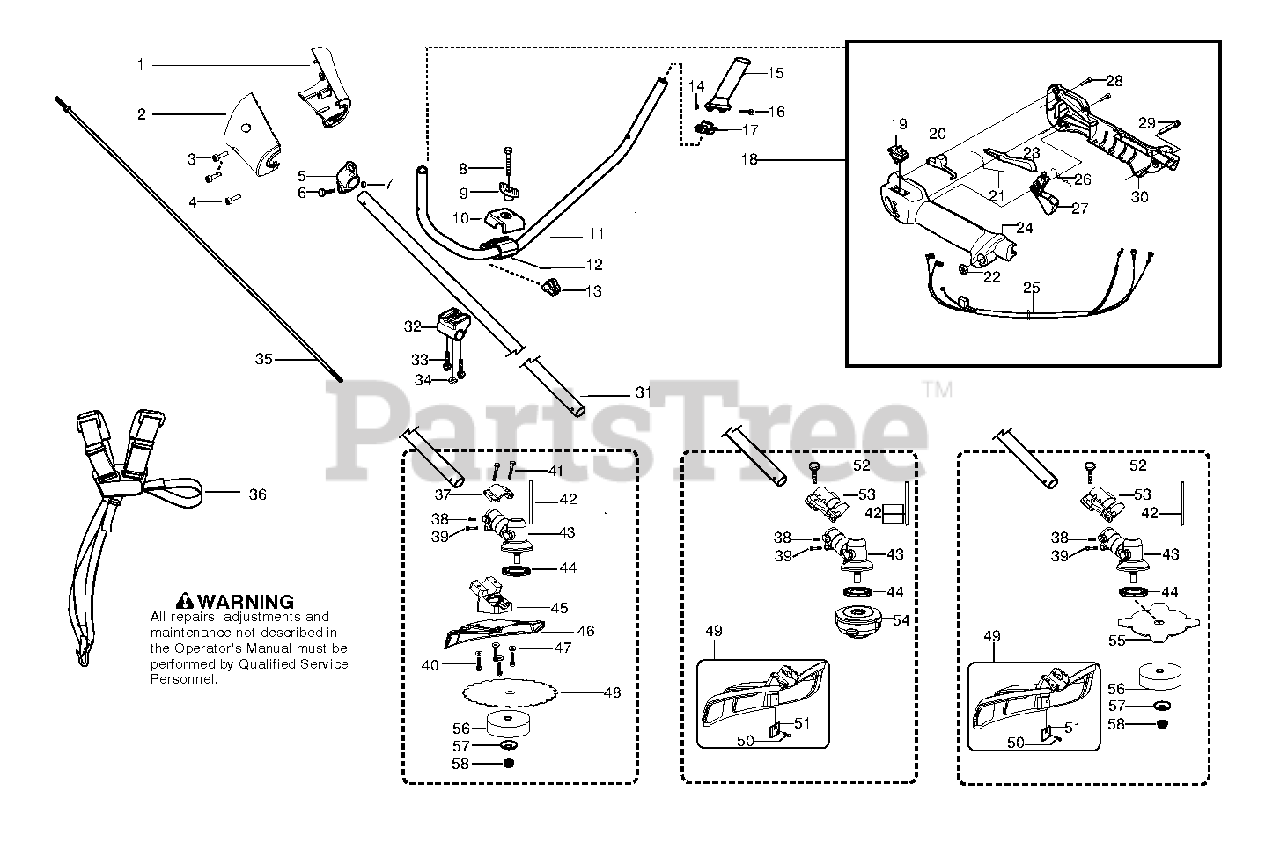

SHAFT HANDLE Parts Diagram

  • Title

1

Jonsered 545036402

No Description Available

Note: LH

$4.99

$

Usually ships in 3-10 days

0

2

Jonsered 545036502

No Description Available

Note: RH

$4.99

$

Usually ships in 3-10 days

0

3

Jonsered 530016448

SCREW

$6.49

$

In Stock, Qty 19

0

4

Jonsered 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, Qty 20+

0

5

Jonsered 503941002

HOOK

$10.99

$

Usually ships in 3-10 days

0

6

Jonsered 503200716

SCREW

$4.99

$

In Stock, only 2 left!

0

7

Jonsered 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

8

Jonsered 725238651

SCREW

$6.99

$

In Stock, only 1 left!

0

9

Jonsered 502219301

KNOB

$8.99

$

In Stock, Qty 5

0

10

Jonsered 503722902

COVER

$11.99

$

Usually ships in 3-10 days

0

11

Jonsered 503724312

No Description Available

Note: . 10 11 12-17

$74.99

$

In Stock, only 2 left!

0

12

Jonsered 503750001

HOLDER
(Superseded to 544020903)

$12.99

$

In Stock, only 1 left!

0

13

Jonsered 502211201

GROMMET

$7.49

$

In Stock, only 2 left!

0

14

Jonsered 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

15

Jonsered 537172810

No Description Available

$8.99

$

Usually ships in 3-10 days

0

16

Jonsered 503200245

SCREW

$6.49

$

In Stock, only 2 left!

0

17

Jonsered 537172903

CLAMP

$3.99

$

Usually ships in 3-10 days

0

18

Jonsered 545125502

No Description Available

Note: . 19-30

$48.99

$

Usually ships in 3-10 days

0

19

Jonsered 537419001

STOP BUTTON

$8.99

$

In Stock, Qty 20+

0

20

Jonsered 537160702

SWITCH

$3.99

$

Usually ships in 3-10 days

0

21

Jonsered 537174301

SPRING

$7.49

$

Usually ships in 3-10 days

0

22

Jonsered 503221013

NUT

$7.49

$

Usually ships in 3-10 days

0

23

Jonsered 537160602

TRIGGER SAFETY
(Superseded to 506497702)

$10.99

$

In Stock, only 4 left!

0

24

Jonsered 537160205

No Description Available

$15.99

$

Usually ships in 3-10 days

0

25

Jonsered 545125801

ASSY CABLE WIRE HARNESS

$26.99

$

In Stock, only 1 left!

0

26

Jonsered 537174201

SPRING

$6.49

$

In Stock, Qty 15

0

27

Jonsered 537160802

TRIGGER
(Superseded to 506497702)

$10.99

$

In Stock, only 4 left!

0

28

Jonsered 503216618

SCREW

$7.49

$

In Stock, Qty 5

0

29

Jonsered 503200735

%SCREW
(Superseded to 503200782)

$6.99

$

In Stock, only 3 left!

0

30

Jonsered 537160304

No Description Available

$15.99

$

Usually ships in 3-10 days

0

31

Jonsered 545081880

No Description Available

$

$

Not available

32

Jonsered 503882302

BRACKET

$21.99

$

Usually ships in 3-10 days

0

33

Jonsered 503216825

SCREW

$4.99

$

In Stock, only 2 left!

0

34

Jonsered 502197101

NUT

$8.99

$

In Stock, only 2 left!

0

35

Jonsered 545165001

No Description Available

$34.99

$

In Stock, only 1 left!

0

36

Jonsered 544845801

No Description Available

$34.99

$

Usually ships in 3-10 days

0

37

Jonsered 537047501

CLAMP

$25.99

$

Usually ships in 3-10 days

0

38

Jonsered 503201412

SCREW

$3.99

$

In Stock, Qty 12

0

39

Jonsered 503200725

SCREW

$4.99

$

In Stock, Qty 11

0

40

Jonsered 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

41

Jonsered 725236871

BOLT FLANGE - M6X20
(Superseded to 544146501)

$4.99

$

In Stock, Qty 6

0

42

Jonsered 502285901

LOCKING PIN

$8.99

$

In Stock, only 2 left!

0

43

Jonsered 537333801

GEARHEAD

$87.99

$

In Stock, only 1 left!

0

44

Jonsered 537234901

DRIVE DISC

$40.99

$

In Stock, only 3 left!

0

45

Jonsered 537293401

ADAPTER

$62.99

$

Usually ships in 3-10 days

0

46

Jonsered 537217101

METAL GUARD 200MM
(Superseded to 502303601)

$34.99

$

Usually ships in 3-10 days

0

47

Jonsered 503230011

WASHER 5.3X12

$6.49

$

In Stock, only 3 left!

0

48

Jonsered 537277504

No Description Available

$29.99

$

Usually ships in 3-10 days

0

49

Jonsered 545081879

No Description Available

Note: . 50 51

$26.99

$

Usually ships in 3-10 days

0

50

Jonsered 503210716

SCREW

$6.49

$

In Stock, Qty 14

0

51

Jonsered 503798801

LINE CUTTER
(Superseded to 503798802)

$6.49

$

In Stock, Qty 10

0

52

Jonsered 725237071

SCREW

$7.49

$

Usually ships in 3-10 days

0

53

Jonsered 503935501

RP BRACKET TRIMMER GUARD
(Superseded to 574306904)

$24.99

$

In Stock, only 3 left!

0

54

Jonsered 537338306

T25 TRIM HEAD 10MM LH
(Superseded to 537338310)

$30.99

$

In Stock, Qty 20+

0

55

Jonsered 504001303

BLADE GRASS
(Superseded to 596278001)

$36.99

$

Usually ships in 3-10 days

0

56

Jonsered 503890101

SUPPORTING CUP

$26.99

$

Usually ships in 3-10 days

0

57

Jonsered 537285601

SUPPORT FLANGE

$15.99

$

In Stock, only 4 left!

0

58

Jonsered 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, Qty 5

0
