CC 2145 - Jonsered Brushcutter (2010-09) CRANKCASE Parts Diagram

Brushcutter

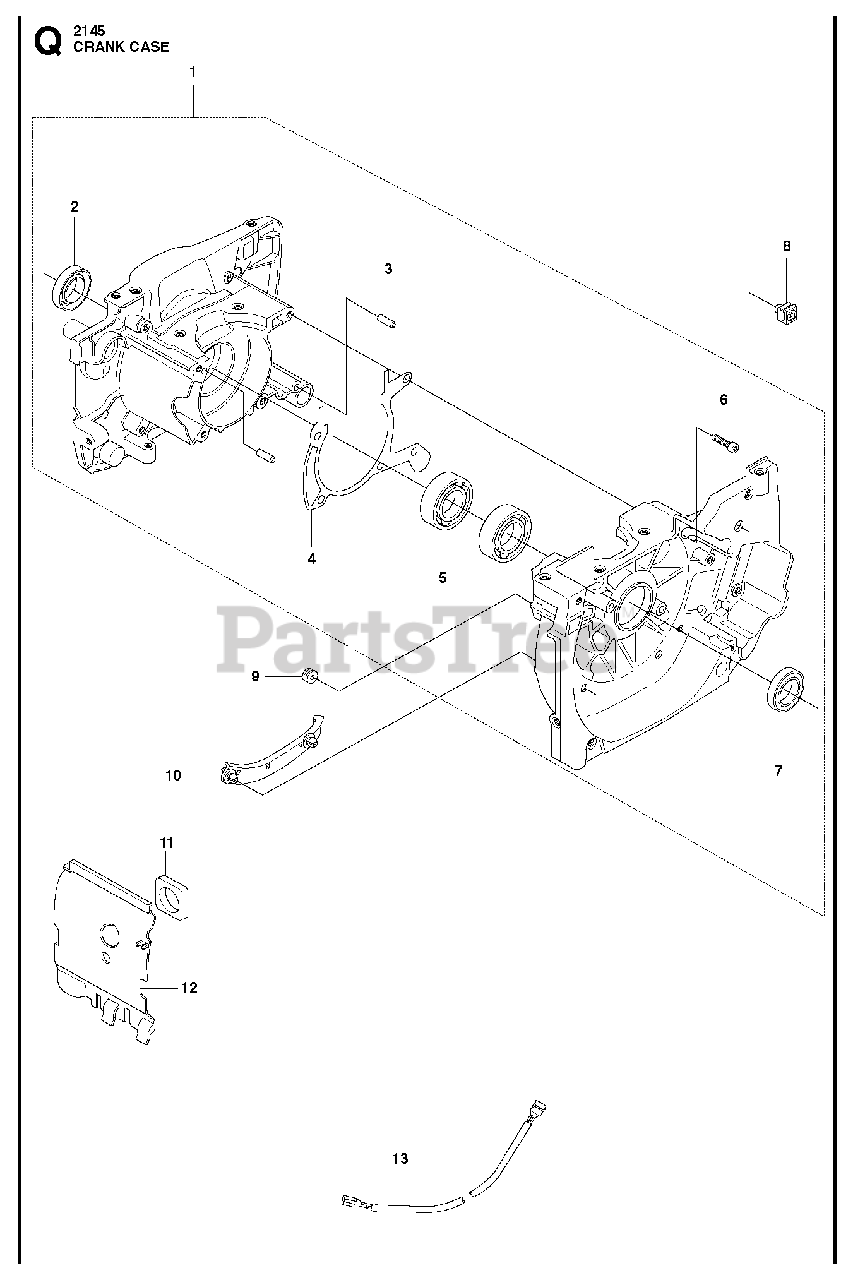

CRANKCASE Parts Diagram

  • Title

1

Jonsered 537230401

CRANKCASE

$148.99

$

Usually ships in 3-10 days

0

2

Jonsered 503260204

SEALING RING

Note: . 1

$15.99

$

In Stock, Qty 20+

0

3

Jonsered 720130710

PIN 5X14

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

4

Jonsered 503948001

GASKET

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

5

Jonsered 738220225

BALL BEARING-6202-C3 SKF

Note: . 1

$31.99

$

In Stock, Qty 14

0

6

Jonsered 725533155

SCREW MC6S 5X20

Note: . 1

$2.99

$

Usually ships in 3-10 days

0

7

Jonsered 505275719

SEAL RING

Note: . 1

$21.99

$

In Stock, only 3 left!

0

8

Jonsered 502089601

CABLE SOCKET

$4.46

$

Usually ships in 3-10 days

0

9

Jonsered 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$7.99

$

In Stock, Qty 20+

0

10

Jonsered 537280501

HOLDER

$

$

Not available

11

Jonsered 537309401

SEAL

Note: FC FCS FCW

$

$

Not available

12

Jonsered 537279401

AIR CONDUCTOR

Note: BC CC

$

$

Not available

12

Jonsered 537309901

AIR CONDUCTOR

Note: FC FCS FCW

$

$

Not available

13

Jonsered 537391001

SHORTING LEAD

$9.22

$

Usually ships in 3-10 days

0
