CC 2145 - Jonsered Brushcutter (2011-02) STARTER Parts Diagram

Brushcutter

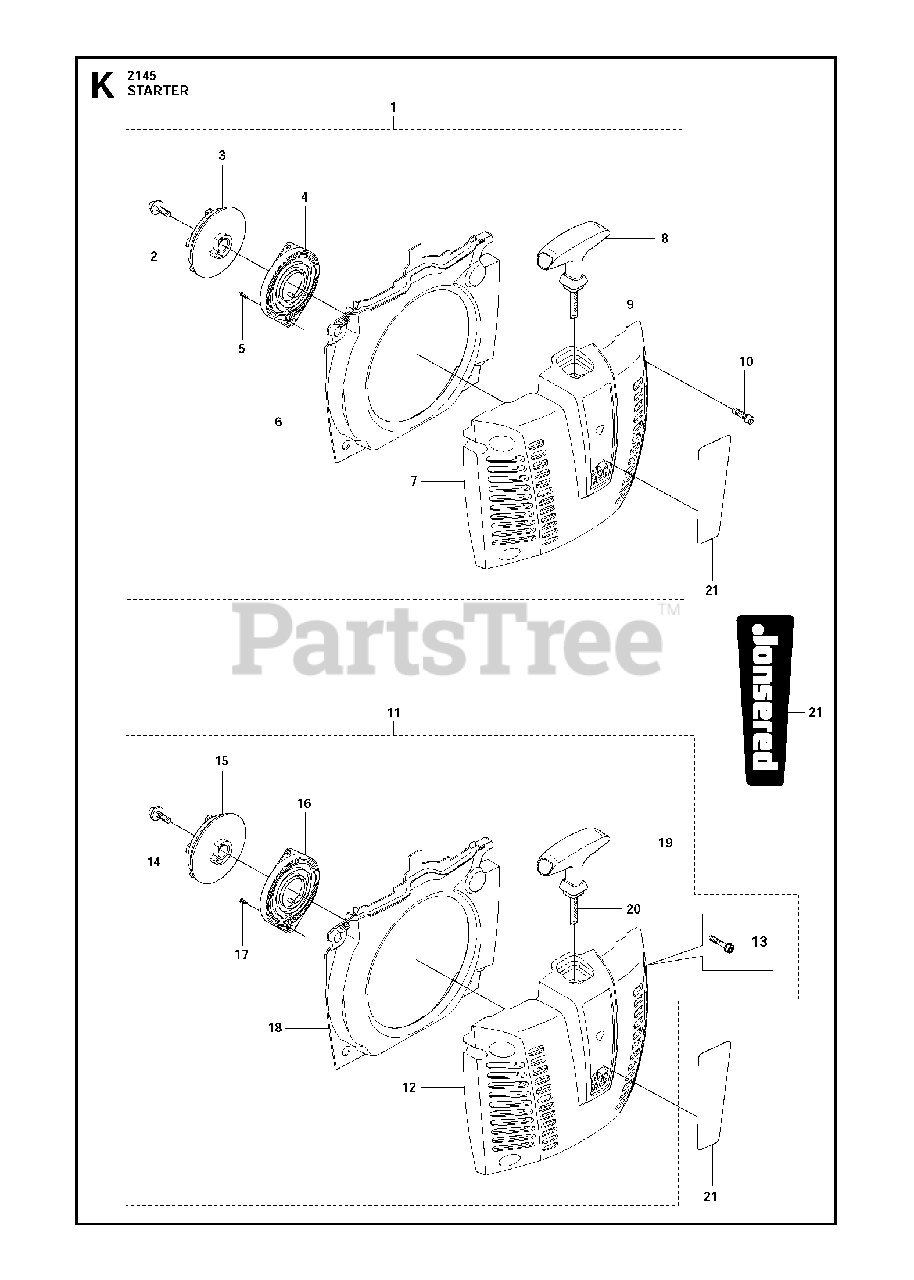

STARTER Parts Diagram

  • Title

1

Jonsered 537259302

No Description Available
(Superseded to 575581801)

$65.95

$

Usually ships in 3-10 days

0

2

Jonsered 503216916

SCREW

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

3

Jonsered 503957301

STARTER PULLEY

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

4

Jonsered 502200601

RECOIL SPRING

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

5

Jonsered 503212906

SCREW

Note: . 1

$4.99

$

In Stock, only 4 left!

0

6

Jonsered 537259001

AIR CONDUCTOR

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

7

Jonsered 537258901

STARTER HOUSING

Note: . 1

$

$

Not available

8

Jonsered 537196501

STARTER HANDLE

Note: . 1

$21.99

$

In Stock, only 1 left!

0

9

Jonsered 505305125

STARTER ROPE

Note: . 1

$8.99

$

In Stock, Qty 13

0

10

Jonsered 503200302

SCREW IHSCFM

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 575581801

No Description Available

Note: Spare part with Captive Screw

$65.95

$

Usually ships in 3-10 days

0

12

Jonsered 575581701

STARTER HOUSING

Note: Spare part with Captive Screw. 11

$27.68

$

Usually ships in 3-10 days

0

13

Jonsered 574477003

SCREW IHSCFMO

Note: Captive Screw. 11 12

$6.49

$

In Stock, only 1 left!

0

14

Jonsered 503216916

SCREW

Note: . 11

$4.99

$

Usually ships in 3-10 days

0

15

Jonsered 503957301

STARTER PULLEY

Note: . 11

$14.99

$

Usually ships in 3-10 days

0

16

Jonsered 502200601

RECOIL SPRING

Note: . 11

$24.99

$

Usually ships in 3-10 days

0

17

Jonsered 503212906

SCREW

Note: . 11

$4.99

$

In Stock, only 4 left!

0

18

Jonsered 537259001

AIR CONDUCTOR

Note: . 11

$14.99

$

Usually ships in 3-10 days

0

19

Jonsered 537196501

STARTER HANDLE

Note: . 11

$21.99

$

In Stock, only 1 left!

0

20

Jonsered 505305125

STARTER ROPE

Note: . 11

$8.99

$

In Stock, Qty 13

0

21

Jonsered 537375801

STARTER HOUSING DECAL

$4.46

$

Usually ships in 3-10 days

0
