CC 2235 - Jonsered Brushcutter (2011-02) STARTER Parts Diagram

Brushcutter

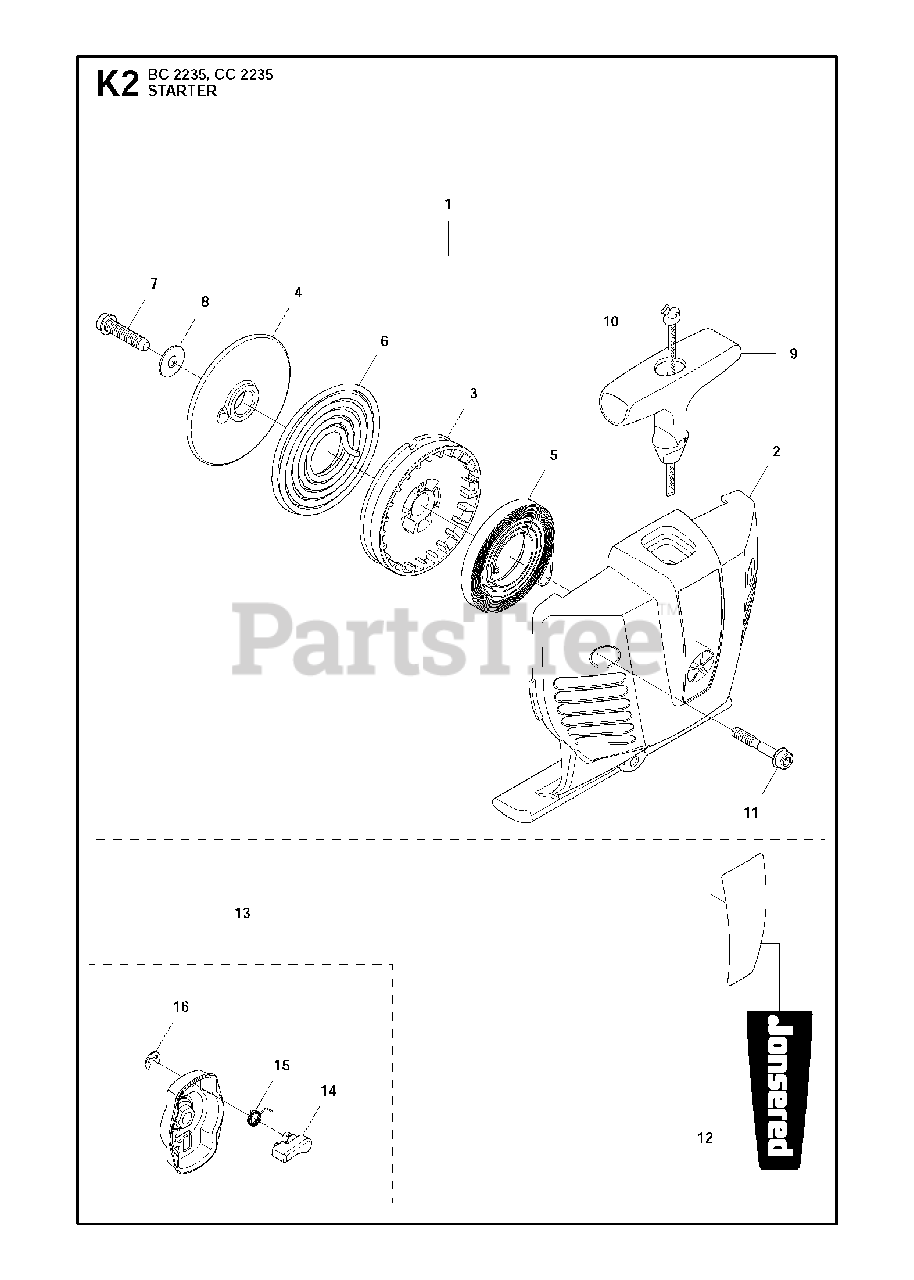

STARTER Parts Diagram

  • Title

1

Jonsered 510085601

No Description Available

$

$

Not available

2

Jonsered 544126401

No Description Available

Note: Spare part with Captive Screw. 1

$39.99

$

Usually ships in 3-10 days

0

3

Jonsered 577424701

No Description Available

Note: . 1

$

$

Not available

4

Jonsered 510084601

No Description Available

Note: . 1

$

$

Not available

5

Jonsered 503859901

STARTER SPRING

Note: . 1

$31.99

$

In Stock, only 1 left!

0

6

Jonsered 510085701

No Description Available

Note: . 1

$

$

Not available

7

Jonsered 503218825

%SCREW
(Superseded to 503218876)

Note: . 1

$6.49

$

In Stock, Qty 20+

0

8

Jonsered 503230086

No Description Available

Note: . 1

$

$

Not available

9

Jonsered 503997701

HANDLE

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

10

Jonsered 505305125

STARTER ROPE

Note: . 1

$8.99

$

In Stock, Qty 12

0

11

Jonsered 503200320

SCREW

Note: Captiv Screw. 1

$7.49

$

In Stock, only 2 left!

0

12

Jonsered 537182801

DECAL

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 503873305

STARTER PAWL BRIDGE

$26.99

$

In Stock, Qty 20+

0

14

Jonsered 503873502

STARTER PAWL
(Superseded to 544011401)

Note: . 13

$7.49

$

In Stock, Qty 17

0

15

Jonsered 503873601

SPRING

Note: . 13

$7.49

$

In Stock, Qty 19

0

16

Jonsered 735310820

E-RING 4

Note: . 13

$4.99

$

In Stock, Qty 20+

0
