CC 2236 - Jonsered Brushcutter (2010-11) CLUTCH Parts Diagram

Brushcutter

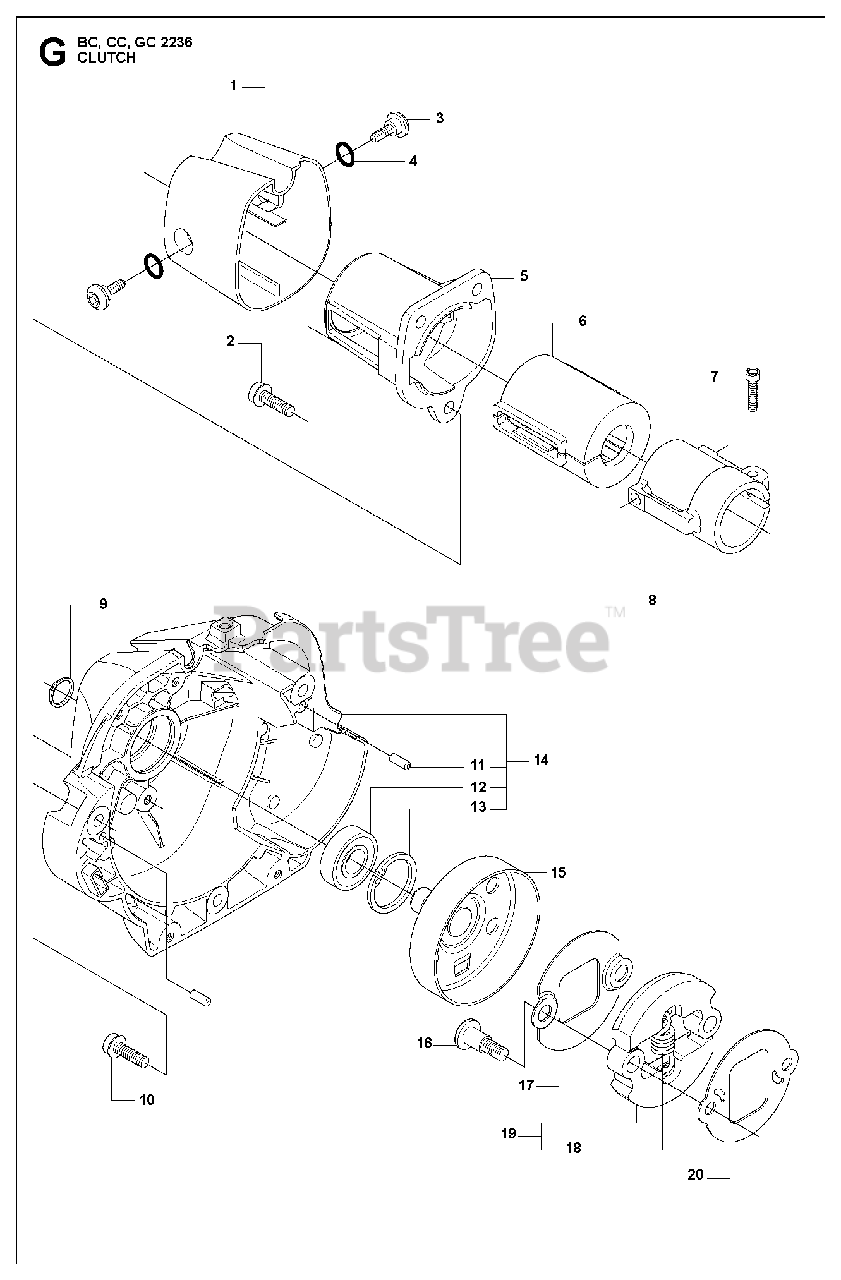

CLUTCH Parts Diagram

  • Title

1

Jonsered 537326102

No Description Available

Note: BC 2236

$

$

Not available

1

Jonsered 544119702

COVER

Note: GC 2236

$13.99

$

Usually ships in 3-10 days

0

2

Jonsered 503200320

SCREW

$4.99

$

In Stock, only 2 left!

0

3

Jonsered 503961301

SCREW MT5X11

$4.99

$

In Stock, Qty 10

0

4

Jonsered 740420600

O-RING 8X1.6

$3.49

$

In Stock, only 2 left!

0

5

Jonsered 537310001

HOLDER, TUBE

$28.99

$

In Stock, Qty 5

0

6

Jonsered 537322701

VIBRATION ABSORBER

$13.99

$

Usually ships in 3-10 days

0

7

Jonsered 725533355

SCREW MC6S 5X25

$3.49

$

In Stock, Qty 6

0

8

Jonsered 537310101

SLEEVE, COVER

Note: BC 2236 CC2236

$29.99

$

Usually ships in 3-10 days

0

8

Jonsered 537310102

LOCKING SLEEVE

Note: GC 2236

$35.99

$

Usually ships in 3-10 days

0

9

Jonsered 735311400

SEEGER CLIP

$4.99

$

In Stock, only 1 left!

0

10

Jonsered 503200320

SCREW

$4.99

$

In Stock, only 2 left!

0

11

Jonsered 503240702

PIN

Note: . 14

$2.49

$

Usually ships in 3-10 days

0

12

Jonsered 738210104

BALL BEARING

Note: . 14

$12.99

$

Usually ships in 3-10 days

0

13

Jonsered 735312810

RETAINING RING SGH 28

Note: . 14

$3.99

$

In Stock, Qty 19

0

14

Jonsered 537302903

No Description Available

$74.99

$

Usually ships in 3-10 days

0

15

Jonsered 537352901

CLUTCH DRUM

$41.99

$

In Stock, only 2 left!

0

16

Jonsered 537418101

SCREW CLUTCH

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 537415701

WASHER

$5.99

$

Usually ships in 3-10 days

0

18

Jonsered 537427201

SPRING

Note: . 19

$6.99

$

In Stock, Qty 6

0

19

Jonsered 537340401

CLUTCH CPL

$39.99

$

In Stock, only 2 left!

0

20

Jonsered 537046801

WASHER
(Superseded to 537046802)

$8.49

$

Usually ships in 3-10 days

0
