CC 30 (13A226JD010) - Cub Cadet Mini Rider (2014) Deck Lift Parts Diagram

Mini Rider

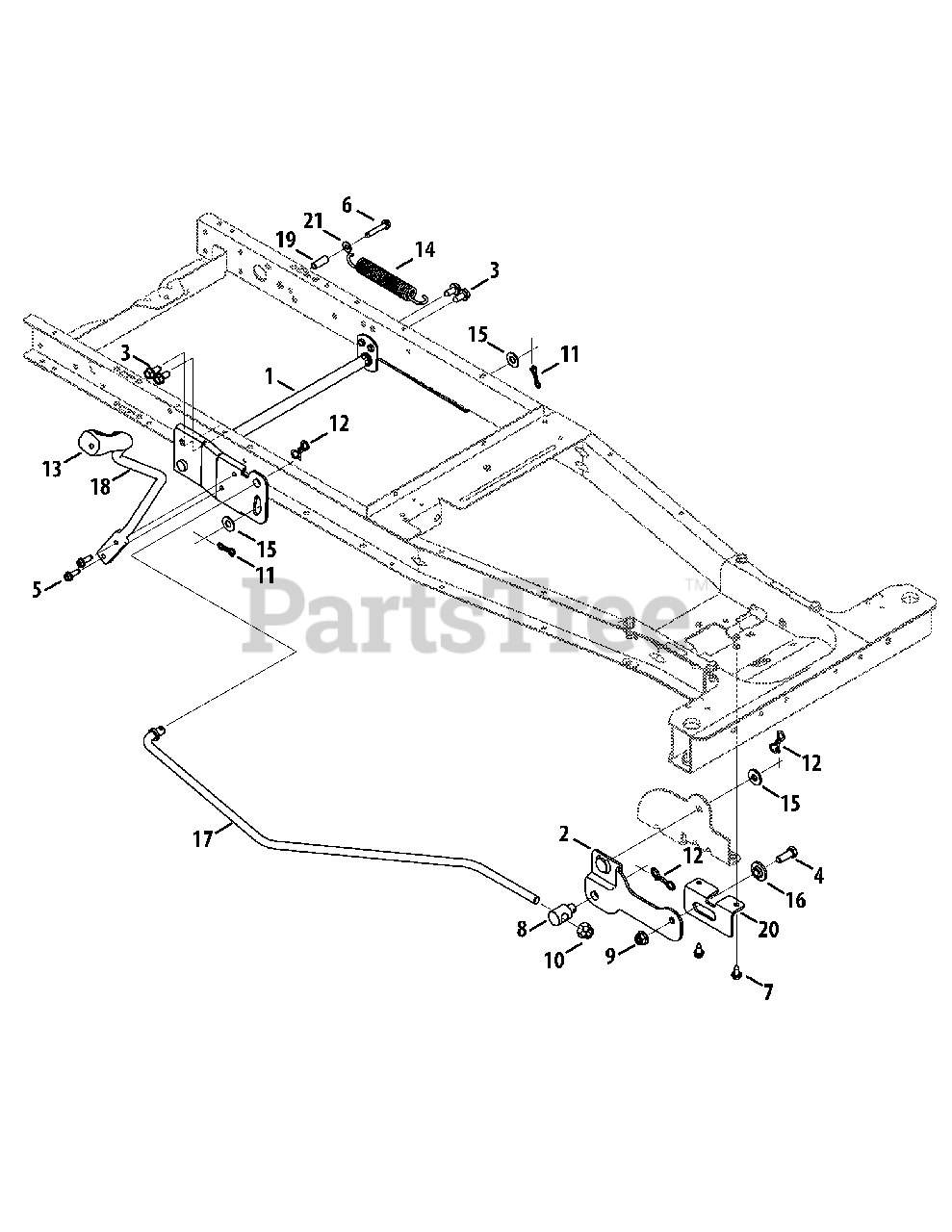

Deck Lift Parts Diagram

  • Title

1

Cub Cadet 683-05060-0637

Lift Assembly Shaft

$39.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 683-04757-0637

Front Hanger Bracket Assembly

$23.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-04484

Tap Screw, 5/16-18, .750

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0514

Hex Head Screw, 3/8-16, 1.00

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0642

Tap Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0778

Screw, 1/4-20, 1.50

$3.99

$

In Stock, Qty 15

0

7

Cub Cadet 710-1652

Tap Screw, 1/4-20 X .625

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 711-05690

Ferrule, .50 X .50
(Superseded to 711-05690C)

$10.99

$

In Stock, only 1 left!

0

9

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-05046

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

12

Cub Cadet 714-04043

Bow-Tie Cotter Pin, 91

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 720-0311

Grip Handle, 1/2

$14.99

$

In Stock, Qty 5

0

14

Cub Cadet 732-04692

Extension Spring, .85 OD X 5.915 LG

$8.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 936-0300

Flat Washer, .406 X .875 X .059
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 938-0347

Shoulder Spacer, .625 ID X .169

$9.49

$

In Stock, Qty 13

0

17

Cub Cadet 747-05511

Lift Link Rod

$24.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 747-05576-0637

Deck Lift Rod

$27.99

$

In Stock, only 4 left!

0

19

Cub Cadet 750-0566A

Spacer, .260 x .375 x 1.030 LG

$9.49

$

In Stock, Qty 5

0

20

Cub Cadet 783-07129-0637

Front Deck Mounting Bracket

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 936-0463

Flat Washer, .250 x .630 x .052
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0
