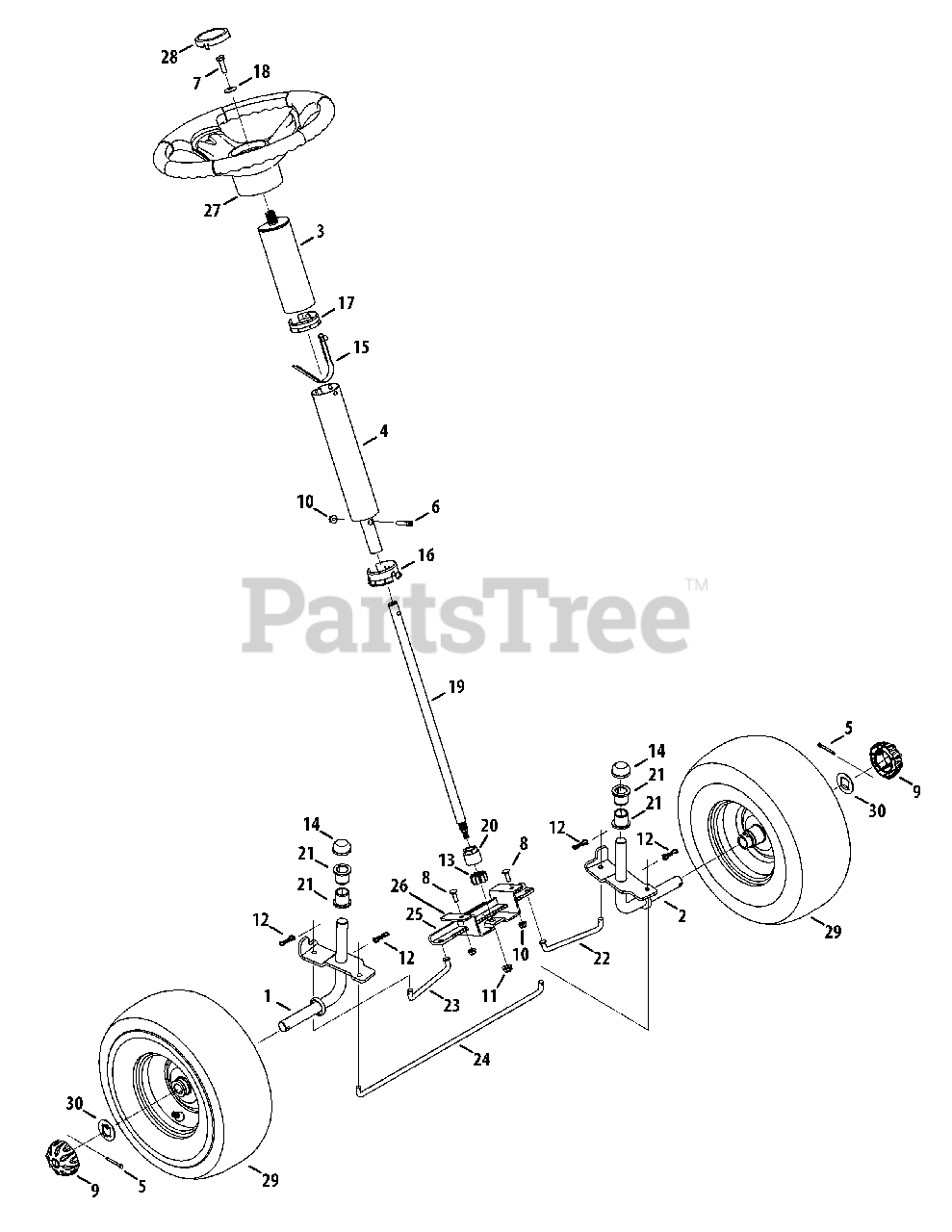

CC 30 (13A226JD010) - Cub Cadet Mini Rider (2014) Front End Steering Parts Diagram

Mini Rider

Front End Steering Parts Diagram

  • Title

1

Cub Cadet 683-04726-0637

Front Axle Assembly, RH

$38.99

$

In Stock, only 2 left!

0

2

Cub Cadet 683-04727-0637

Front Axle Assembly, LH

$38.99

$

In Stock, only 2 left!

0

3

Cub Cadet 683-04761

Upper Tube Assembly

$49.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 683-04762

Lower Tube Assembly

$71.99

$

In Stock, only 1 left!

0

5

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 738-05000

Shoulder Screw, .375 x .148 x 1/4-20

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0643

Hex Head Screw, 5/16-18:1.00

$7.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0703

Carriage Screw, 1/4-20, .75

$4.49

$

In Stock, Qty 15

0

9

Cub Cadet 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

13

Cub Cadet 717-1554

Steering Pinion Gear

$11.99

$

In Stock, Qty 20+

0

14

Cub Cadet 726-0341

Push Cap, 3/4

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 726-04127

Snap Butt

$11.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-08690

Lower Steering Collar

$4.49

$

In Stock, Qty 11

0

17

Cub Cadet 731-08691

Upper Steering Collar

$4.49

$

In Stock, only 4 left!

0

18

Cub Cadet 736-0242

Bevel Washer, .340X.872X.060

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 738-04537A

Steering Shaft, .625 OD X 18.03
(Superseded to 738-04537B)

$36.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 741-04542A

Hex Flange Bearing, 5/8

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet 741-0660A

Flange Bearing, .760 X .941 X 1.0

$3.49

$

In Stock, Qty 20+

0

22

Cub Cadet 747-05514

Steering Rod, LH

$15.99

$

In Stock, Qty 9

0

23

Cub Cadet 747-05585

Steering Rod, RH

$15.99

$

In Stock, Qty 7

0

24

Cub Cadet 747-06027

Front Tie Rod

$15.99

$

In Stock, Qty 12

0

25

Cub Cadet 783-06988A

Steering Rack Plate
(Superseded to 753-11064C)

$76.99

$

In Stock, Qty 20+

0

26

Cub Cadet 783-07239A

Lower Steering Bearing
(Superseded to 753-11064C)

$76.99

$

In Stock, Qty 20+

0

27

Cub Cadet 631-04008A

Steering Wheel, Soft Grip
(Superseded to 631-04008B)

$100.99

$

In Stock, only 2 left!

0

28

Cub Cadet 731-04039

No Sprig Cap

$8.99

$

In Stock, Qty 7

0

29

Cub Cadet 634-04726-0931

Complete Wheel Assembly
(Superseded to 634-04726-0936)

$156.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$10.99

$

In Stock, Qty 20+

0

29

Cub Cadet 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$6.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-04228A

Washer, .781 x 1.59
(Superseded to 736-04228B)

$5.99

$

In Stock, Qty 20+

0
