CC 30 (13A226JD010) - Cub Cadet Mini Rider (2016) Fender Parts Diagram

Mini Rider

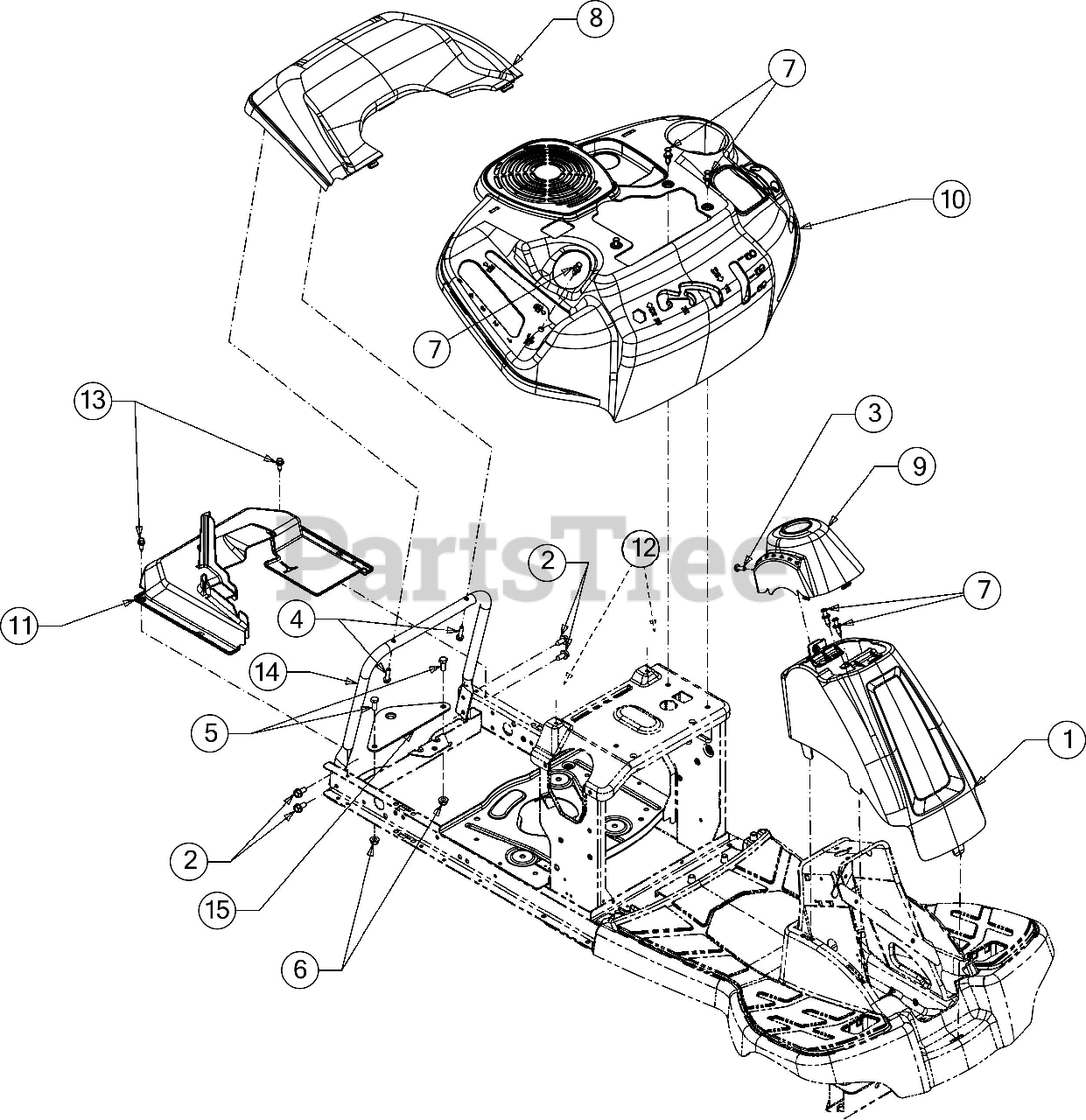

Fender Parts Diagram

  • Title

1

Cub Cadet 931-05041

COLUMN COVER ASSEMBLY (CUB)

$33.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 712-04092

U NUT

Note: (Not Shown)

$6.49

$

In Stock, only 2 left!

0

2

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0924

SCREW 1/4-20X.75

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1241

SCREW 1/4-15 x 1.00

$6.99

$

In Stock, only 4 left!

0

5

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 728-0199

PLASTIC RIVET

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 731-09129A

REAR COVER

$39.99

$

In Stock, only 1 left!

0

9

Cub Cadet 731-09399

STEERING COLUMN CAP (CUB)

$13.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 931-10151

FENDER

$

$

Not available

11

Cub Cadet 731-10504

DRIVE OVER REAR

$53.99

$

In Stock, only 2 left!

0

12

Cub Cadet 735-05006

BUMPER .62 DIA x .50

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 738-04184A

SHOULDER SCREW

$7.49

$

In Stock, Qty 20+

0

14

Cub Cadet 749-04932-0637

REAR SUPPORT TUBE

$36.99

$

In Stock, Qty 6

0

15

Cub Cadet 783-07208-0637

HITCH PLATE
(Superseded to 783-07208A-0637)

$8.99

$

Usually ships in 3-6 days

0
