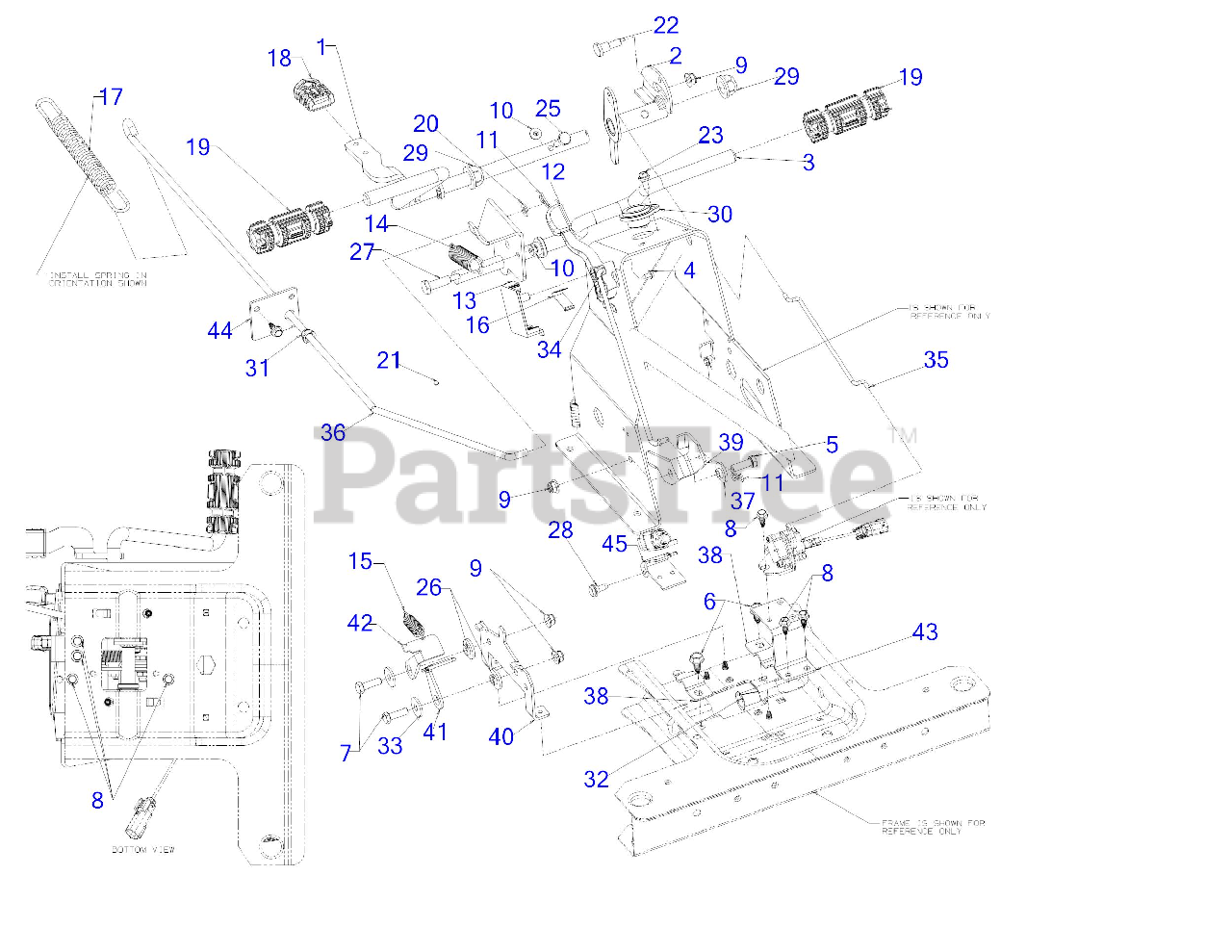

CC 30 E (13AZ27JD710) - Cub Cadet Electric Mini Rider (2018) Pedals Parts Diagram

Electric Mini Rider

Pedals Parts Diagram

  • Title

1

Cub Cadet 683-05232

DRIVE PEDAL ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 683-05232-0637

PEDAL ASM-DRIVE - POWDER BLACK (0637)

$68.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 683-05384

PEDAL ASSEMBLY

$44.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 683-05454

BRAKE PEDAL ASSEMBLY

Variations

Cub Cadet 683-05454-0637

BLACK BRAKE PEDAL ASM - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 910-0224

HEX SCREW AB-TAP #10-16 x 0.500

$3.49

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 17

0

6

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0643

SCREW 5/16-18 x 1.00 GR5

$6.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1652

SCREW 1/4-20X.625

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

12

Cub Cadet 731-11574

PARK BRAKE LEVER

$7.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 731-11924

SPEED CONTROL COVER

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 732-04306

EXTENSION SPRING

$9.49

$

In Stock, Qty 16

0

15

Cub Cadet 732-04448

EXTENSION SPRING

$9.99

$

In Stock, Qty 20+

0

16

Cub Cadet 732-04937

SHIFT SPRING

$3.99

$

In Stock, only 2 left!

0

17

Cub Cadet 732-05146

EXTENSION SPRING 0.90 DIA x 8.14

$11.99

$

In Stock, only 4 left!

0

18

Cub Cadet 735-04117

REVERSE PEDAL PAD

$6.49

$

In Stock, only 4 left!

0

19

Cub Cadet 735-05051

BRAKE PEDAL PAD

$10.99

$

In Stock, only 3 left!

0

20

Cub Cadet 936-0264

FLAT WASHER

$6.49

$

In Stock, Qty 11

0

22

Cub Cadet 738-0138A

SHOULDER SCREW 5/16-18 x .62 GR2

$6.49

$

In Stock, Qty 20+

0

25

Cub Cadet 738-05000

SHOULDER SCREW .375 x .148

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 738-05313

SHOULDER SPACER .315 X .500 X .140

$3.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 938-0572

SHOULDER SCREW
(Superseded to 738-0572)

$

$

Not available

28

Cub Cadet 938-1225

SHOULDER SCREW
(Superseded to 738-1225)

$

$

Not available

29

Cub Cadet 941-0225

FLANGE BEARING

$6.99

$

In Stock, Qty 20+

0

30

Cub Cadet 741-0356A

FLANGE BEARING

$6.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 941-0475

BUSHING .380 ID

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 741-05135

FLANGE BEARING .626 x .938 x .875

$5.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 741-05310

THRUST BEARING .323 X .985 X .100

$1.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 747-06449

SPEED SELECT ROD

$13.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 747-06948

SWITCH ROD

$5.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 747-06996

BRAKE ROD

$21.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 748-0234

SHOULDER SPACER

$4.49

$

In Stock, Qty 10

0

38

Cub Cadet 783-05940

BRAKE SHAFT STRAP

$6.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 783-08953

PARK BRAKE BRACKET

$30.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 783-09594

NEUTRAL RETURN BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-09594-0637

BLACK NEUTRAL RETURN - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 783-09595A

REVERSE RETURN BRACKET

$14.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 783-09596A

FORWARD RETURN BRACKET

$17.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 783-09599

SENSOR MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-09599-0637

BLACK SENSOR MOUNT BR - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 783-09698

BRAKE ROD SUPPORT BRACKET
(Superseded to 783-09698A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-09698-0637

BLACK BRAKE ROD SUPPO - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 783-09733A

SWITCH BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-09733A-0637

BLACK SWITCH BRACKET - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

GREASE-#251 EP (NOT SERVICEABLE)

$

$

Not available
