CC 30 E (33BA27JD710) - Cub Cadet Electric Mini Rider (2020) Drive Parts Diagram

Electric Mini Rider

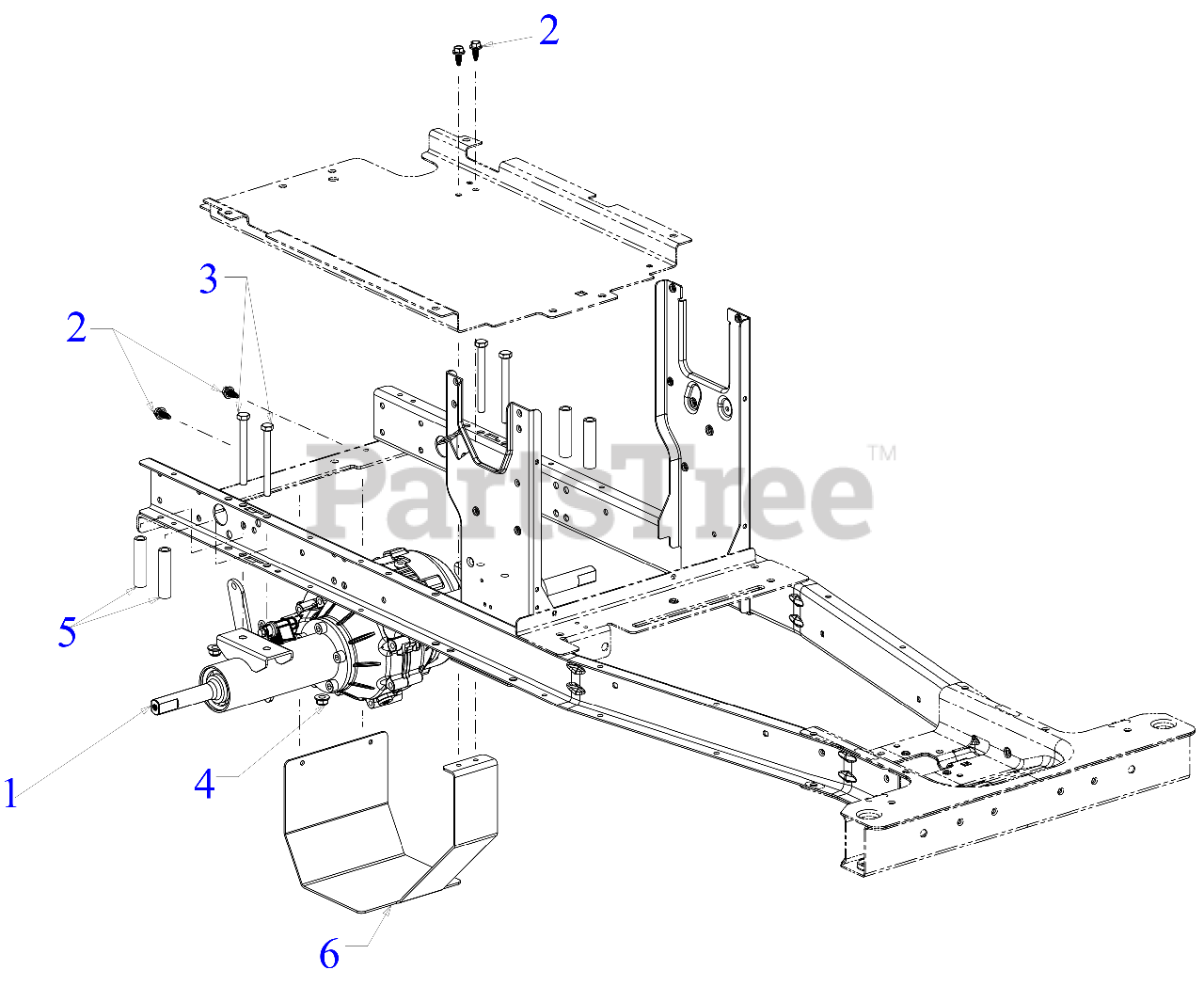

Drive Parts Diagram

  • Title

1

Cub Cadet 918-07424

TRANSMISSION ASSEMBLY

Note: (See Separate Breakdown)

$901.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-3056

SCREW 5/16-18 x 3.25 GR5

$10.99

$

In Stock, only 1 left!

0

4

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 750-06788

SPACER (.35 x .55 x 2.345)

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 783-09767

TRANSMISSION MOTOR COVER

Variations

783-09767-0637

Cub Cadet 783-09767-0637

BLACK TRANSMISSION MO - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0
